5.4 Test Menu
5.4.4

Sensor Menu

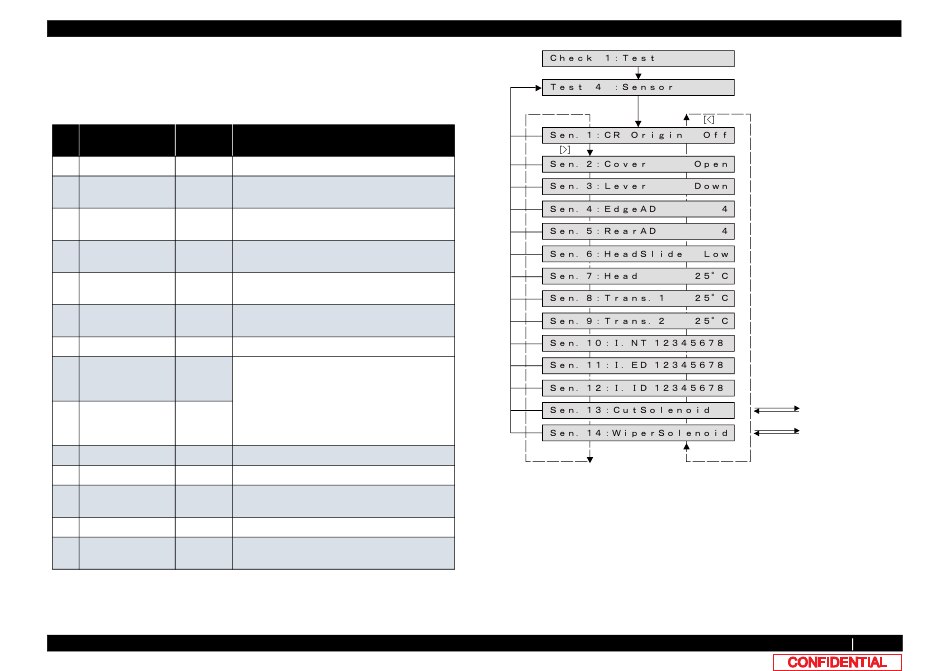

This menu is used to display the sensor status on Operation panel.
If the displayed sensor status does not match the actual machine status, replace or adjust the
relevant sensor.
No. Sensor name Status in
display
1 CR Origin ON/OFF
2 Cover Open/
Close
3 Lever Up/
Down
4 Edge AD (P_EDGE 0 to 255
sensor)
5 Rear AD 0 to 255
(P_REAR sensor)
6 Head Slide Low/
High
7 Head
** ℃
8 Trans.1 (Head
** ℃
transistor thermistor
1)
9 Trans.2 (Head
** ℃
transistor thermistor
2)
10 I.NOT 12345678
11 I.END 12345678
12 I.ID 12345678
13 Cut Solenoid check -
14 WiperSolenoid -
check
5.4.4 Sensor Menu
Reference
The state of CR Origin Sensor is displayed.
The state of Front cover is displayed.
The position of Pressuring Lever is displayed.
The sensitivity of P_EDGE sensor is displayed.
The sensitivity of P_REAR sensor is displayed.
The height of Head is displayed.
The temperature of the Head is displayed.
The temperature of the transistor of Head (MAIN
board) is displayed.
The existence of an ink cartridge is displayed.
The existence of ink is displayed.
The slot which has read the smart chip card is
displayed.
Checking the operation of the Cutter Solenoid.
Checking the operation of the Wiper Solenoid.
[Enter]
[Cancel]
[Enter]
VJ628XE-M-00
[Enter]
Cutter Solenoid
[Cancel]
Check Menu
Wiper Solenoid
Check Menu
