3.8 Replacing Cursor section
21

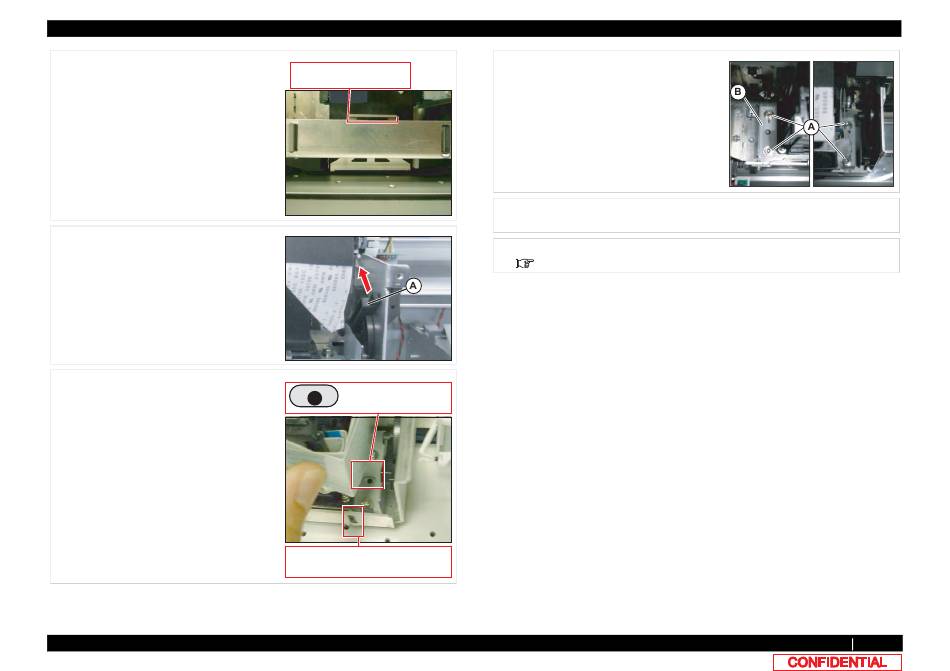

Adjust so that Head Push Plate Spring is
horizontal.
22
Make sure that the notch of Head Adjustment
Cam is raised to the top.
23
Adjust the fixing position of Head.
3.8.15 Replacing Head
Insert a slotted screwdriver
and adjust it.
Adjust so that the circular
hole is positioned in front
of the slotted hole.
Insert a slotted screwdriver
to push Head in.
24
Tighten the screws (4 pieces) retaining Head
Base.
A : Hexagon Socket Pan Flat Head M3ｘ6
B : Head Base
25
To reassemble unit, reverse the removal
procedure.
26
Perform various adjustments.
4.2 Adjustment Item
