3.8 Replacing Cursor section
25

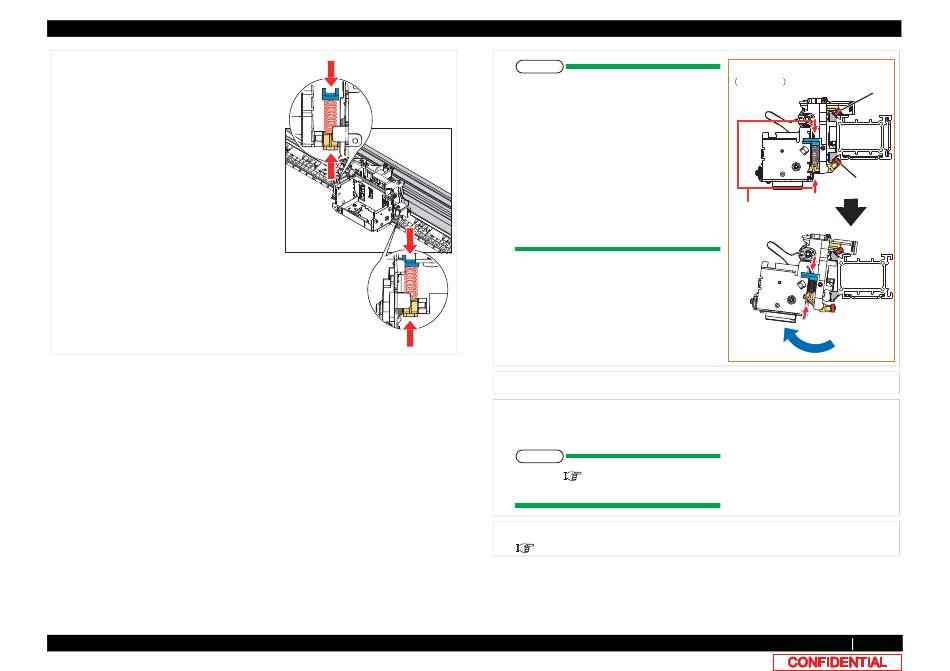

Remove Carriage Assy from Y rail in
following steps.
• Tightly hold cursor roller arm on both
sides of Carriage Assy and CR cursor
side arm with fingers to compress
cursor arm spring and remove
Carriage Assy from Y rail.
• Remove the both side of cursor roller
from Y rail.
• Remove Carriage Assy from Y rail.
3.8.17 Replacing Carriage Assy
NOTE
• When removing Carriage Assy from Y
rail, be careful no to scratch T fence.
• Rotate Carriage Assy, and remove it
from Y Rail.
• Since the tension of Cursor arm spring
is strong, be careful when removing it.
• When removing carriage Assy , be
careful not to damage cursor roller with
Y rail.
• When placing the removed Carriage
Assy down, make sure that Cursor
roller does not touch the floor.
26
Replace Carriage Assy.
27
To reassemble unit, reverse the removal
procedure.
NOTE
It refers to
3.8.15 Replacing Head
install Head.
28
Perform various adjustments.
4.2 Adjustment Item
VJ628XE-M-00
Side View
Origin side
Cursor Roller
Y Rail
Cursor Roller
Pinch Roller Arm to
remove from Y Rail
Y Rail
and
