Removing Carriage Cover - MUTOH Valuevet VJ-628X Maintenance Manual

3.8 Replacing Cursor section
3.8.2

Removing Carriage Cover

● Tools & Jigs & Maintenance part
Name
Phillips screwdriver No.2
1
Release the Carriage Lock.
3.8.1 Releasing Carriage Lock
2

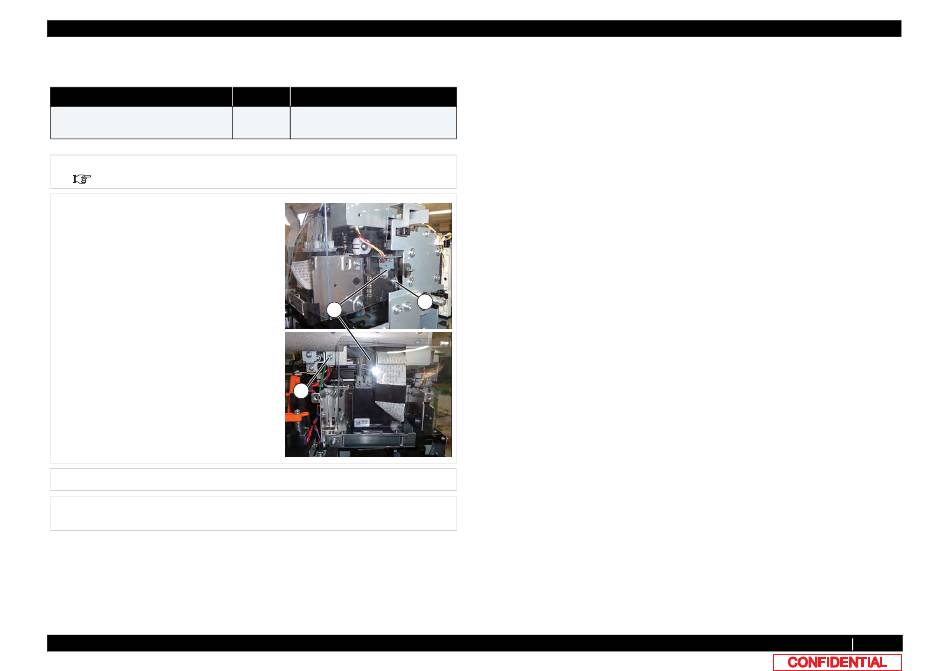

Remove the screws (2 pieces) retaining
Carriage Cover.
A : Pan-head screw with spring washer and
flat washer M3ｘ6
B : Carriage Cover
3
Remove Carriage Cover.
4
To reassemble unit, reverse the removal
procedure.
3.8.2 Removing Carriage Cover
No. Remarks
Generic -
products
B
A
A
VJ628XE-M-00
117
