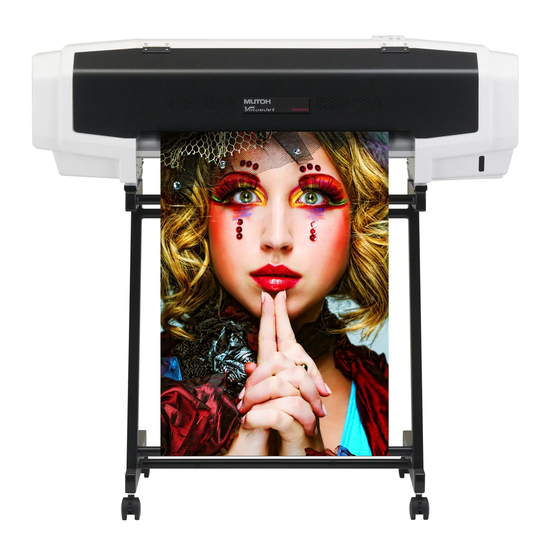

MUTOH VJ-628 Operation Manual

Installation wizard
Hide thumbs Also See for VJ-628:
Table of Contents

Advertisement

Quick Links

INSTALLATION
WIZARD
OPERATION
MANUAL
Read This Manual Before Using The Application
MSMIE-A-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VJ-628 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MUTOH VJ-628

Summary of Contents for MUTOH VJ-628

  • Page 1 INSTALLATION WIZARD OPERATION MANUAL Read This Manual Before Using The Application MSMIE-A-01...

  • Page 2: Table Of Contents

    Contents 1 Introduction ................1-1 Target Models .................. 1-1 Supported Operation Systems ............1-1 Supported Languages ..............1-1 2 Installation Wizard Functions ........... 2-1 3 Installation Wizard ..............3-1 Launching Installation Wizard ............3-1 Initial Setting (MSM) ................ 3-5 Activation ..................3-19 Initial Charge..................

  • Page 3: Introduction

    1 Introduction 1 Introduction This document describes the specifications for the Installation Wizard performed from MUTOH Status Monitor (referred to as “MSM”). MSM and other related applications should be installed from All-in-one installer. 1-1 Target Models The target models are as follows:...

  • Page 4: Installation Wizard Functions

    When the Installation Wizard is fully completed, MSM is closed and you will return to the All-in-one installer process. For the details of the Installation Wizard, see “3 Installation Wizard”. NOTE  VJ-628's Installation Wizard screens are used as examples here, unless otherwise noted. MSMIE-A-01...

  • Page 5: Installation Wizard

    The Installation Wizard launches if any of the following conditions apply; 1. The MSM initial setting has not been completed. 2. The printer activation has not been completed 3. The initial ink charge has not been performed. Main Menu for VJ-628/628X/628MP MSMIE-A-01...
  • Page 6 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Name Contents Introduction Displays the introduction of the Installation Wizard. Click [Next] to continue. Initial Setting (MSM) Performs the MSM initial setting. Click [Next] in this menu to launch the Initial Setting Wizard.
  • Page 7 Performs the MSM initial setting. Initial Setting (MSM) Click [Next] in this menu to launch the Initial Setting Wizard. For the details, see “MUTOH Status Monitor Design Specification”. Performs the printer activation. Activation Click [Next] in this menu to launch the Activation Wizard.
  • Page 8 Performs the MSM initial setting. Initial Setting (MSM) Click [Next] in this menu to launch the Initial Setting Wizard. For the details, see “MUTOH Status Monitor Design Specification”. Performs the printer activation. Activation Click [Next] in this menu to launch the Activation Wizard.

  • Page 9: Initial Setting (Msm)

    MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard 3-2 Initial Setting (MSM) Performs the MSM initial setting. For the details, see “MUTOH Status Monitor Operation Manual”. Name Contents Next Launches the Initial Setting Wizard. MSMIE-A-01...
  • Page 10 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Introduction This window will be displayed at the first time to use MSM. Check the contents, and click "Start" button. Name Description Service List List of services to be available for users by connecting the MSM to MUTOH Club.
  • Page 11 Specify the contents of MUTOH Club service to use. Select the service to use, and click "Next" button. NOTE  To use MUTOH Club service, need to log into MUTOH Club through the Internet. If you cannot access the Internet, uncheck “MUTOH Club Service”.  1,2,3...
  • Page 12 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Proxy Setting To use the proxy server according to the internet environment, please configure the setting. Name Description Automatic Setting Your browser setting will be used without change. If there is no problem, please use automatic setting.
  • Page 13 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Proxy Setting Manually Configure the proxy setting manually. Name Description Use a proxy server for your LAN Check the box to use the proxy server, and enter the IP address and port number.
  • Page 14 Log into MUTOH Club. Please enter the login ID and password that were specified for user registration. NOTE  To use MUTOH Club service, need to log into MUTOH Club through the Internet. Name Description Login ID Enter the login ID for MUTOH Club.
  • Page 15 MUTOH Club Login Error If a wrong login ID or password is entered, or have trouble to connect the Internet, a login error will occur.Check the login ID, password and the Internet connection to log into MUTOH Club again. Name...
  • Page 16 Installation Wizard Operation Manual 3 Installation Wizard MUTOH Club Login Setting Please specify the method to login to MUTOH Club. This setting will be the method to login to MUTOH Club from now. Name Description Single User The login password will be saved, and the login will be performed automatically.
  • Page 17 Report Mail Setting Specify the mail notification system for the report mail function. Please select the system according to your e-mail environment. NOTE  For the details, see “MUTOH Status Monitor Operation Manual”. Name Description Easy Notification Notification mail will be sent from MUTOH Club.
  • Page 18 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Mail Setting(General) If the report mail is set to manual notification, enter the user information to send mails. Name Description Name Enter the name to corresponding to the mail address for sending.It will be displayed by the mail software for receiving.
  • Page 19 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Mail Setting(SMTP) Set up the SMTP. Name Description Name Enter the IP address of the mail server for sending. Port Enter the port number to be used for the connection with SMTP server.Usually, please set the default value "25"...
  • Page 20 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard e-mail address Setting Please register the e-mail address to be used for report mail function. Perform "Send Test Mail" to check the mail sending condition. 3,4,2 Name Description e-mail address Enter the mail address for receiving to be added.
  • Page 21 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Default Setting Confirmation Please check the contents of initial setting. If there is no problem with the settingsm click "Save" button. To change the settings, click the setting items and change the settings.
  • Page 22 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard 10). Initial setting completed This is the end of initial setting. Name Description Exit the initial setting. 3-18 MSMIE-A-01...

  • Page 23: Activation

    MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard 3-3 Activation Performs the printer activation. For the details, see “MUTOH Status Monitor Operation Manual”. Name Contents Next Launches the Activation Wizard. Back Go back to the previous menu. 3-19...
  • Page 24 Installation Wizard Operation Manual 3 Installation Wizard Execute Activation via the Internet Connect MSM to the Internet, MSM will automatically access MUTOH Club and execute activation. Click "Internet connection is available". Accessing the MB-Web to obtain the "Activation Code" and executing Activation. Please wait.
  • Page 25 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard When activation is complete, the following window appears. NOTE  If an activation execution error occurs, contact your dealer and inform them of the "ErrCode". 3-21 MSMIE-A-01...
  • Page 26 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Execute Activation By Entering “Activation Code“ Click "Internet connection is not available". Enter the activation code issued by your dealer and click "Execution". In order to execute activation with an activation code file, click the folder icon and select the file.
  • Page 27 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard When activation is complete, the following window will appear. NOTE  If an activation execution error occurs, contact your dealer and provide the "ErrCode". 3-23 MSMIE-A-01...

  • Page 28: Initial Charge

    Go to the Smart/C Wizard. Go to the Initial Charge Wizard. Required Smart/C amount for Initial Ink Charge: Printer Model Smart/C Amount [ml] Smart/C Amount [%] VJ-628 / 628X / 628MP 200 [ml] VJ-426UF / 626UF 400 [ml] 3-24 MSMIE-A-01...
  • Page 29 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Smart/C Update Smart/C. Name Description Back Go back to the Installation Wizard process. Next Go to the Initial Charge Wizard. This button is available only when the Smart/C amount is enough for the initial ink charge.
  • Page 30 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Update the Smart/C with Web Obtain and display the Smart/C information available via an Internet connection from MUTOH Club. Name Description Quantity of Update [ml] Select the quantity of Smart/C to update.
  • Page 31 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Update the Smart/C with the Update File (MSCF) The MSCF information will be displayed. Name Description Printer Serial No. Displays the serial number of the monitored printer. File Name Displays the file name of the loaded MSCF.
  • Page 32 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Update the Smart/C with S/C Card S/C card information will be displayed. Name Description Format check Displays the status of the read S/C card. Capacity [ml] Displays the capacity of the read S/C card in ml.
  • Page 33 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Smart/C Information Displays the Smart/C information of the printer that has been monitored. Name Description Displays the maximum Smart/C of the printer that has been monitored. * The Smart/C MAX varies according to printer model.
  • Page 34 Smart/C. NOTE  To update the Smart/C with MUTOH Club, transfer the service information of the printer to the MUTOH Club.  To update the Smart/C with the S/C card, make sure not to remove the S/C card during the update. If the S/C card is removed during the update, the Smart/C update will not be completed normally.
  • Page 35 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard VJ-628/628X/628MP Launches the Initial Charge Wizard to perform the initial ink charge. ●Cleaning Wiper Installation: Not Required ●Cleaning Wiper Installation: Required Name Contents Next Launches the Initial Charge Wizard. Back Go back to the previous menu.
  • Page 36 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Start Ink Charge ●Cleaning Wiper Installation: Not Required ●Cleaning Wiper Installation: Required Name Contents Start Sends the command to start the initial ink charge to the printer. Back Go back to the Installation Wizard process.
  • Page 37 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Empty Waste Ink Tank Check the waste ink tank before performing the initial ink charge. When the waste ink treatment is completed, click [Start] to reset the waste ink counter.
  • Page 38 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Remove Cartridges This page appears if any cartridge is inserted into the slot. If not, the page is skipped. 3-34 MSMIE-A-01...
  • Page 39 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Insert Cleaning Cartridges Insert all cleaning cartridges into the slots. When the insertion is completed, go to the next page. Charging Cleaning Fluid The cleaning fluid is being charged into the printer head.
  • Page 40 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Remove Cartridges Remove all cleaning cartridges after charging the cleaning fluid. Discharging Cleaning Fluid The cleaning fluid is being discharged after removing all ink cartridges. 3-36 MSMIE-A-01...
  • Page 41 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Empty Waste Ink Tank Check the waste ink tank before performing the initial ink charge. When the initial ink charge is completed, click [Start] to reset the waste ink counter.
  • Page 42 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Insert Ink Cartridges Insert all ink cartridges into their specified slots after discharging the cleaning fluid. When the insertion is completed, performs the initial ink charge. 2-10 Ink Charge The ink charge is being performed.
  • Page 43 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard 2-11 Complete When the initial ink charge is fully completed, stops the initial ink charge monitoring. Name Contents Go to the “Media Set” menu of the Installation Wizard. Next 3-39...
  • Page 44 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard VJ-426UF/626UF Launches the Initial Charge Wizard to perform the initial ink charge. ●Cleaning Wiper Installation: Not Required ●Cleaning Wiper Installation: Required Name Contents Next Launches the Initial Charge Wizard. Back Go back to the previous menu.
  • Page 45 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Start Ink Charge ●Cleaning Wiper Installation: Not Required ●Cleaning Wiper Installation: Required Name Contents Start Sends the command to start the initial ink charge to the printer. Back Go back to the Installation Wizard process.
  • Page 46 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Empty Waste Ink Tank Check the waste ink tank before performing the initial ink charge. When the waste ink treatment is completed, click [Start] to reset the waste ink counter.
  • Page 47 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Remove Cartridges This page appears if any cartridge is inserted into the slot. If not, the page is skipped. 3-43 MSMIE-A-01...
  • Page 48 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Insert Cleaning Cartridges Insert all cleaning cartridges into the slots. When the insertion is completed, go to the next page. Charging Cleaning Fluid The cleaning fluid is being charged into the printer head.
  • Page 49 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Remove Cartridges Remove all cleaning cartridges after charging the cleaning fluid. Discharging Cleaning Fluid The cleaning fluid is being discharged after removing all ink cartridges. 3-45 MSMIE-A-01...
  • Page 50 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Empty Waste Ink Tank Check the waste ink tank before performing the initial ink charge. When the initial ink charge is completed, click [Start] to reset the waste ink counter.
  • Page 51 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Insert Ink Cartridges Insert all ink cartridges into their specified slots after discharging the cleaning fluid. When the insertion is completed, performs the initial ink charge. Ink Charge 3-10 The ink charge is being performed.
  • Page 52 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Complete 3-11 When the initial ink charge is fully completed, stops the initial ink charge monitoring. Name Contents Go to the “Media Set” menu of the Installation Wizard. Next 3-48...
  • Page 53 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard XPJ-1641SR / 1682SR Launches the Initial Charge Wizard to perform the initial ink charge. Name Contents Next Launches the Initial Charge Wizard. Back Go back to the previous menu. NOTE ...
  • Page 54 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Start Ink Charge Name Contents Start Sends the command to start the initial ink charge to the printer. Back Go back to the Installation Wizard process. * After clicking [Start] in this menu, the initial ink charge progress is monitored (every second) and indicated in the status field.
  • Page 55 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Remove the ink bag cases and S/C card. This page appears if either ink bag case or S/C card is inserted into the printer. If not, the page is skipped.
  • Page 56 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Insert Cleaning bag cases and S/C card. Insert all cleaning bag cases and S/C card into the slots. When the insertion is completed, go to the next page. Charging Cleaning Fluid The cleaning fluid charging will start after the cleaning bag case and S/C card are inserted into all slots.
  • Page 57 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Remove Cleaning bag cases and S/C card. Remove all cleaning bag cases and S/C card after charging the cleaning fluid. Discharging Cleaning Fluid The cleaning fluid is being discharged after removing all ink bag cases and S/C card.
  • Page 58 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard 4-7 Wash Retry？ Select whether to repeat the cleaning. Name Contents Repeat the cleaning. Go to the "Ink Charge" menu. 3-54 MSMIE-A-01...
  • Page 59 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Insert Ink bag cases and S/C card Insert all ink bag cases and S/C card into their specified slots after discharging the cleaning fluid.When the insertion is completed, performs the initial ink charge.
  • Page 60 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Complete 4-10 When the initial ink charge is fully completed, stops the initial ink charge monitoring. Name Contents Go to the “Media Set” menu of the Installation Wizard. Next 3-56...
  • Page 61 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard XPJ-461UF / 661UF Launches the Initial Charge Wizard to perform the initial ink charge. ●Cleaning Wiper Installation: Required Name Contents Next Launches the Initial Charge Wizard. Back Go back to the previous menu.
  • Page 62 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Start Ink Charge ●Cleaning Wiper Installation: Required Name Contents Start Sends the command to start the initial ink charge to the printer. Back Go back to the Installation Wizard process.
  • Page 63 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Empty Waste Ink Tank Check the waste ink tank before performing the initial ink charge. When the waste ink treatment is completed, click [Start] to reset the waste ink counter.
  • Page 64 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Remove Cartridges This page appears if any cartridge is inserted into the slot. If not, the page is skipped. 3-60 MSMIE-A-01...
  • Page 65 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Insert Cleaning Cartridges Insert all cleaning cartridges into the slots. When the insertion is completed, go to the next page. 3-5 Charging Cleaning Fluid The cleaning fluid is being charged into the printer head.
  • Page 66 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Remove Cartridges Remove all cleaning cartridges after charging the cleaning fluid. 3-7 Discharging Cleaning Fluid The cleaning fluid is being discharged after removing all ink cartridges. 3-62 MSMIE-A-01...
  • Page 67 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Empty Waste Ink Tank Check the waste ink tank before performing the initial ink charge. When the initial ink charge is completed, click [Start] to reset the waste ink counter.
  • Page 68 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Insert Ink Cartridges Insert all ink cartridges into their specified slots after discharging the cleaning fluid. When the insertion is completed, performs the initial ink charge. 3-10 Ink Charge 5-10 The ink charge is being performed.
  • Page 69 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Complete 5-11 When the initial ink charge is fully completed, stops the initial ink charge monitoring. Name Contents Go to the “Media Set” menu of the Installation Wizard. Next 3-65...

  • Page 70: Media Set

    MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard 3-5 Media Set VJ-628/628X/628MP Prints the nozzle check patterns to check if the initial ink charge is properly performed. Set the media first by following the procedures. Name Contents Go to the next page of the “Media Set” menu.
  • Page 71 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 1 Media Set: Step 2 3-67 MSMIE-A-01...
  • Page 72 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 3 Media Set: Step 4 3-68 MSMIE-A-01...
  • Page 73 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 5 Media Set: Step 6 3-69 MSMIE-A-01...
  • Page 74 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 7 Media Set: Step 8 3-70 MSMIE-A-01...
  • Page 75 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 9 1-10 Media Set: Step 10 3-71 MSMIE-A-01...
  • Page 76 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard VJ-426UF Prints the nozzle check patterns to check if the initial ink charge is properly performed. Set the media first by following the procedures. Name Contents Go to the next page of the “Media Set” menu.
  • Page 77 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 1 Media Set: Step 2 3-73 MSMIE-A-01...
  • Page 78 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 3 Media Set: Step 4 3-74 MSMIE-A-01...
  • Page 79 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 5 Media Set: Step 6 3-75 MSMIE-A-01...
  • Page 80 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 7 Media Set: Step 8 3-76 MSMIE-A-01...
  • Page 81 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 9 Media Set: Step 10 2-10 3-77 MSMIE-A-01...
  • Page 82 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 11 2-11 Media Set: Step 12 2-12 3-78 MSMIE-A-01...
  • Page 83 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 13 2-13 Media Set: Step 14 2-14 3-79 MSMIE-A-01...
  • Page 84 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 15 2-15 Media Set: Step 16 2-16 3-80 MSMIE-A-01...
  • Page 85 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 17 2-17 3-81 MSMIE-A-01...
  • Page 86 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 18 2-18 Name Contents Next Go back to the Installation Wizard process. Back Go back to the previous menu. NOTE  For VJ-426UF, click [Next] to go to "3-10 Complete".
  • Page 87 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard VJ-626UF Prints the nozzle check patterns to check if the initial ink charge is properly performed. Set the media first by following the procedures. Name Contents Go to the next page of the “Media Set” menu.
  • Page 88 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 1 Media Set: Step 2 3-84 MSMIE-A-01...
  • Page 89 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 3 Media Set: Step 4 3-85 MSMIE-A-01...
  • Page 90 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 5 Media Set: Step 6 3-86 MSMIE-A-01...
  • Page 91 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 7-1 Media Set: Step 7-2 3-87 MSMIE-A-01...
  • Page 92 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 7-3 Media Set: Step 7-4 3-10 3-88 MSMIE-A-01...
  • Page 93 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 8 3-11 Media Set: Step 9 3-12 3-89 MSMIE-A-01...
  • Page 94 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 10 3-13 Media Set: Step 11 3-14 3-90 MSMIE-A-01...
  • Page 95 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 12 3-15 Media Set: Step 13 3-16 3-91 MSMIE-A-01...
  • Page 96 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 14 3-17 3-92 MSMIE-A-01...
  • Page 97 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 15 3-18 Name Contents Next Go back to the Installation Wizard process. Back Go back to the previous menu. NOTE  For VJ-626UF, click [Next] to go to "3-10 Complete".
  • Page 98 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard XPJ-1641SR / 1682SR Prints the nozzle check patterns to check if the initial ink charge is properly performed. Set the media first by following the procedures. Name Contents Go to “Complete” of the Installation Wizard.
  • Page 99 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 1 Media Set: Step 2 3-95 MSMIE-A-01...
  • Page 100 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 3 Media Set: Step 4 3-96 MSMIE-A-01...
  • Page 101 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 5 Media Set: Step 6 3-97 MSMIE-A-01...
  • Page 102 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 7 Media Set: Step 8 3-98 MSMIE-A-01...
  • Page 103 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 9 Media Set: Step 10 4-10 3-99 MSMIE-A-01...
  • Page 104 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 11 4-11 Media Set: Step 12 4-12 3-100 MSMIE-A-01...
  • Page 105 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 13 4-13 3-101 MSMIE-A-01...
  • Page 106 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard XPJ-461UF Prints the nozzle check patterns to check if the initial ink charge is properly performed. Set the media first by following the procedures. Name Contents Go to the next page of the “Media Set” menu.
  • Page 107 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 1 2-2 Media Set: Step 2 3-103 MSMIE-A-01...
  • Page 108 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 3 2-4 Media Set: Step 4 3-104 MSMIE-A-01...
  • Page 109 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 5 2-6 Media Set: Step 6 3-105 MSMIE-A-01...
  • Page 110 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 7 2-8 Media Set: Step 8 3-106 MSMIE-A-01...
  • Page 111 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 9 5-10 Media Set: Step 10 5-10 3-107 MSMIE-A-01...
  • Page 112 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 11 5-11 5-12 Media Set: Step 12 5-12 3-108 MSMIE-A-01...
  • Page 113 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 13 5-13 5-14 Media Set: Step 14 5-14 3-109 MSMIE-A-01...
  • Page 114 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 15 5-15 Name Contents Next Go back to the Installation Wizard process. Back Go back to the previous menu. NOTE  For XPJ-461UF, click [Next] to go to "3-10 Complete".
  • Page 115 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard XPJ-661UF Prints the nozzle check patterns to check if the initial ink charge is properly performed. Set the media first by following the procedures. Name Contents Go to the next page of the “Media Set” menu.
  • Page 116 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 1 Media Set: Step 2 3-112 MSMIE-A-01...
  • Page 117 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 3 Media Set: Step 4 3-113 MSMIE-A-01...
  • Page 118 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 5 Media Set: Step 6 3-114 MSMIE-A-01...
  • Page 119 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 7-1 Media Set: Step 7-2 3-115 MSMIE-A-01...
  • Page 120 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 7-3 Media Set: Step 7-4 6-10 3-116 MSMIE-A-01...
  • Page 121 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 8 6-11 Media Set: Step 9 6-12 3-117 MSMIE-A-01...
  • Page 122 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 10 6-13 Media Set: Step 11 6-14 3-118 MSMIE-A-01...
  • Page 123 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Set: Step 12 Name Contents Next Go back to the Installation Wizard process. Back Go back to the previous menu. NOTE  For XPJ-661UF, click [Next] to go to "3-10 Complete".

  • Page 124: Nozzle Check

    MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard 3-6 Nozzle Check Prints the nozzle check patterns to check the print head condition after the initial ink charge. Name Contents Next Sends the command to get the printer information and check if the printer is ready to print.
  • Page 125 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard When the printer is ready to print: Prints the nozzle check patterns. Name Contents Next Sends the command to print the nozzle check patterns to the printer. Skip the nozzle check and go to the “Adjustment Print” menu.
  • Page 126 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard When the printer is not ready to print: Check the printer status. Name Contents Next Sends the command to get the printer information and check if the printer is ready to print.
  • Page 127 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Check the printed nozzle check patterns Check the printed nozzle check patterns. After sending the command to print the nozzle check patterns, each cleaning buttons become available. 3-1 XPJ-1682SR 1,2,3...
  • Page 128 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard 3-2 Other Name Contents Go to the “Adjustment Print” menu. Next Go to the “Adjustment Print” menu. Skip Back Go back to the previous menu. Cleaning Performs the cleanings below: ・Short Cleaning...

  • Page 129: Cleaning

    MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard 3-7 Cleaning Performs each cleaning. Confirmation Name Contents Go to the “Cleaning” menu to perform the cleaning. Go back to the “Nozzle Check” menu process. Requesting to perform cleaning This wizard page appears while requesting to perform the cleaning to the printer.
  • Page 130 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Performing Cleaning This wizard page appears while cleaning. Name Contents Go back to the “Nozzle Check” menu. Next Go to the “Adjustment Print” menu. Skip Back Go back to the previous menu.

  • Page 131: Adjustment Print

    MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard 3-8 Adjustment Print Performs the printer adjustment to achieve the optimal print quality. Name Contents Next Go to the Adjustment Print page. Go to the “Media Feed Adjustment” menu. Skip Back Go back to the previous menu.
  • Page 132 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Media Thickness Enter your media thickness. Name Contents Go to the “Media Feed Adjustment” menu. Next Go back to the “Adjustment Print” menu. Back Media Type Displays the current media type.
  • Page 133 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Confirm Adjustment Performs the confirm adjustment. Name Contents Go to the “Media Feed Adjustment” menu. Next Go back to the “Adjustment Print” menu. Back Start Performs the confirm adjustment. 3-129...
  • Page 134 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Rough Adjustment Performs the rough adjustment. Name Contents Go to the “Media Feed Adjustment” menu. Next Go back to the “Adjustment Print” menu. Back Start Prints the rough adjustment patterns.
  • Page 135 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Micro Adjustment Performs the micro adjustment. Name Contents Go to the “Media Feed Adjustment” menu. Next Go back to the “Adjustment Print” menu. Back Start Prints the micro adjustment patterns.

  • Page 136: Media Feed Adjustment

    MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard 3-9 Media Feed Adjustment The media feeding length changes depending on the media type and it may affect the print quality. erform the media feed adjustment to achieve the optimal print quality.
  • Page 137 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Initial Adjustment Initial Adjustment Performs the initial adjustment. Name Contents Go to the “Pattern Print” menu. Next Go to the “Confirm Print” menu. Skip Back Go back to the previous menu.
  • Page 138 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Initial Print Prints the initial print patterns. Name Contents Next Prints the initial print patterns. Back Go back to the previous menu. Pattern Print Enter the feeding length by clicking the arrow key.
  • Page 139 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Initial Change Set the adjustment value for the initial adjustment. Name Contents Next Sets the adjustment value for the initial adjustment to the printer. Back Go back to the previous menu.
  • Page 140 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Confirm Print Prints the confirm print patterns to check the adjustment result. Name Contents Next Prints the confirm print patterns. Go to the “Micro Adjustment” menu. Skip Back Go back to the previous menu.
  • Page 141 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Micro Adjustment Micro Adjustment Performs the micro adjustment for the media feeding adjustment. Name Contents Go to the “Micro Print” menu. Next Go to “Complete” of the Media Feed Adjustment Wizard.
  • Page 142 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Micro Print Prints the micro print patterns. Name Contents Next Print the micro print patterns. Back Go back to the previous menu. 3-138 MSMIE-A-01...
  • Page 143 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Micro Change Set the adjustment value for the micro adjustment. Name Contents Next Sets the adjustment value for the micro adjustment to the printer. Back Go back to the previous menu.
  • Page 144 MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard Complete Exit the Media Feeding Adjustment Wizard. Name Contents Next Go back to the Installation Wizard process. Back Go back to the previous menu. 3-140 MSMIE-A-01...

  • Page 145: Complete

    MUTOH Status Monitor Installation Wizard Operation Manual 3 Installation Wizard 3-10 Complete Exits the Installation Wizard. Name Contents Next Exits the Installation Wizard. Back Go back to the previous menu. 3-141 MSMIE-A-01...
  • Page 146 MSMIE-A-01...

This manual is also suitable for:

Vj-426ufVj-628xVj-626ufVj-628mpXpj-1682srXpj-1641sr ... Show all

Table of Contents
