3.5 Replacing Board Base section

3.5 Replacing Board Base section
3.5.1

Replacing Power Board

● Tools & Jigs & Maintenance part
Name
Power Board Assy
Phillips screwdriver No.2
CAUTION
If Power board Assy needs to be removed, remove Power Cable and wait for 5
minutes or more before dismounting the Assy; this will discharge the residual
electrical charge of the electrolytic capacitor.
Touching Board before capacitor discharges may cause electric shock.
1
Remove Top Cover.
3.2.1 Removing Top Cover
2
Remove connectors that are connected to
Power Board.

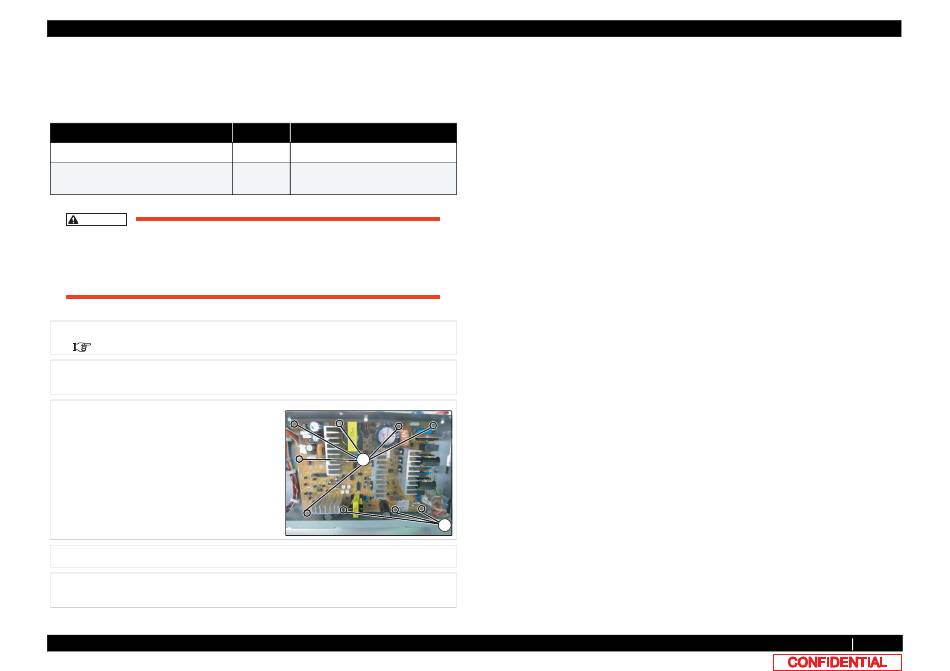

3
Remove the screws (9 pieces) retaining
Power Board.
A : Cup screw Ｍ3ｘ6
4
Replace Power board.
5
To reassemble unit, reverse the removal
procedure.
3.5.1 Replacing Power Board
No. Remarks
DG-43172 Exploded View Board Box
Generic -
products
A
A
VJ628XE-M-00
