3.6 Replacing Y Rail part

3.6.10 Replacing T Fence Spring

● Tools & Jigs & Maintenance part
Name
T Fence Spring Assy
Phillips screwdriver No.2
NOTE
This section describes the procedure to replace the maintenance part, T Fence
Spring Assy.
In this section, it is referred to as T Fence Spring.

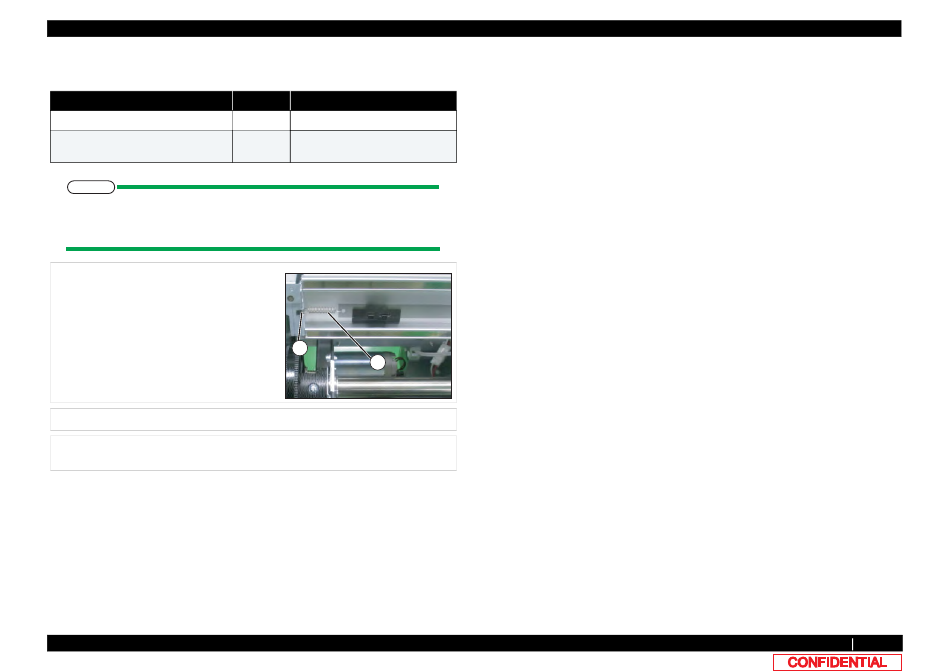

1
Remove T Fence Spring from T Fence Spring
Hook.
A : T Fence Spring Hook
B : T Fence Spring
2
Replace T Fence Spring.
3
To reassemble unit, reverse the removal
procedure.
3.6.10 Replacing T Fence Spring
No. Remarks
DG-44690 Exploded View Y Rail Assy
Generic -
products
A
B
