5.4 Test Menu

5.4 Test Menu

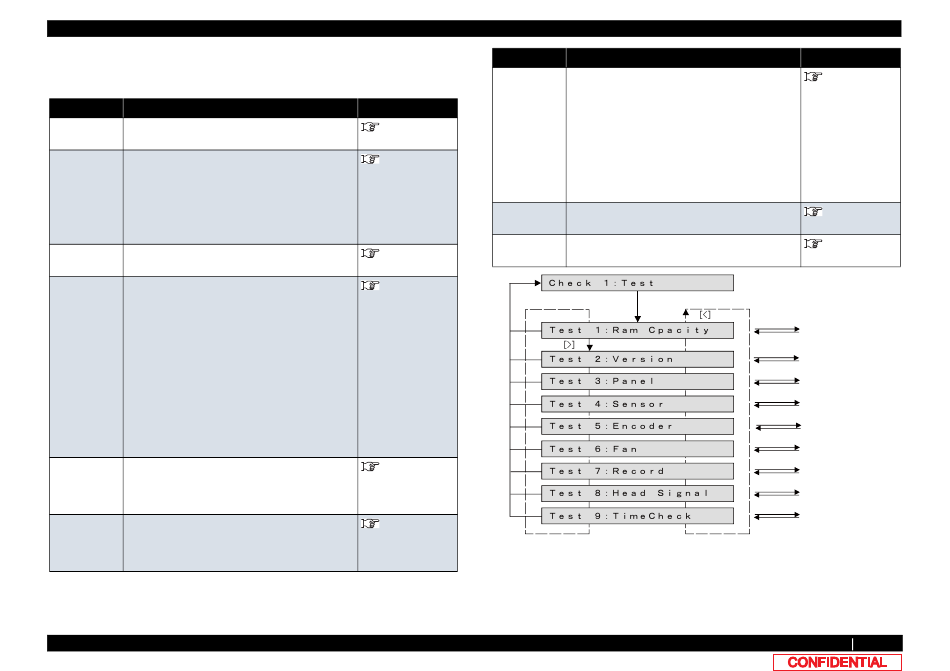

This menu displays the following items on Operation Panel.
Diagnosis item Contents
Ram Capacity Displays the size of memories installed on the MAIN
board.
Version Displays the following items on Operation panel:
Firmware version
Backup parameter version
Setting of dip switches of MAIN board
Revision of MAIN board
Company code
Serial No.
Panel Used to check the operations of Operation panel
keys, LED.
Sensor Displays the status of the following sensors:
CR origin sensor
Cover sensor
Lever sensor
Media edge AD sensor
Media rear AD sensor
Head Gap sensor
Head thirmistor sensor
Head Trans istor Thermistor Sensor1/2
Cartridge Not ( 8)
Ink Not (8)
INK ID (8)
Cutter solenoid Check
Wiper solenoid Check
Encoder Displays the detected values from the following
encoders:
CR encoder
PF encoder
Fan Used to check if the following fans operate normally
by turning them ON and OFF:
Vacuum Fan
Cooling fan (24V) Assy (for MAIN board)
5.3.4 Error Message Display
Diagnosis item
Record
Reference
"5.4.1 Memory
Size Menu
"5.4.2 Version
Menu
Head Signal
TimeCheck
"5.4.3 Operation
Panel Menu
[Cancel]
"5.4.4 Sensor
Menu
"5.4.5 Encoder
Menu
"5.4.6 Fan Menu
Contents
Used to check the following records. Used to
initialize the serious error record.
• Maintenance record
• Serious error record
• Initialize Serious error record
• Confirming Printing information
• Confirming Operating Time
• Confirming S/C Log
• Initializing S/C Log
Used to check the head-driving waveform.
Confirming operating RTC (real time clock).
[Enter]
VJ628XE-M-00
Reference
"5.4.7 Record
Menu
"5.4.8 Head
Waveform Menu
"5.4.9 Time
Check Menu
[Enter]
Ram Capacity menu
[Cancel]
Version menu
Operation Panel menu
Sensor menu
Encoder menu
Fan menu
Record menu
Head Signal menu
TimeCheck menu
