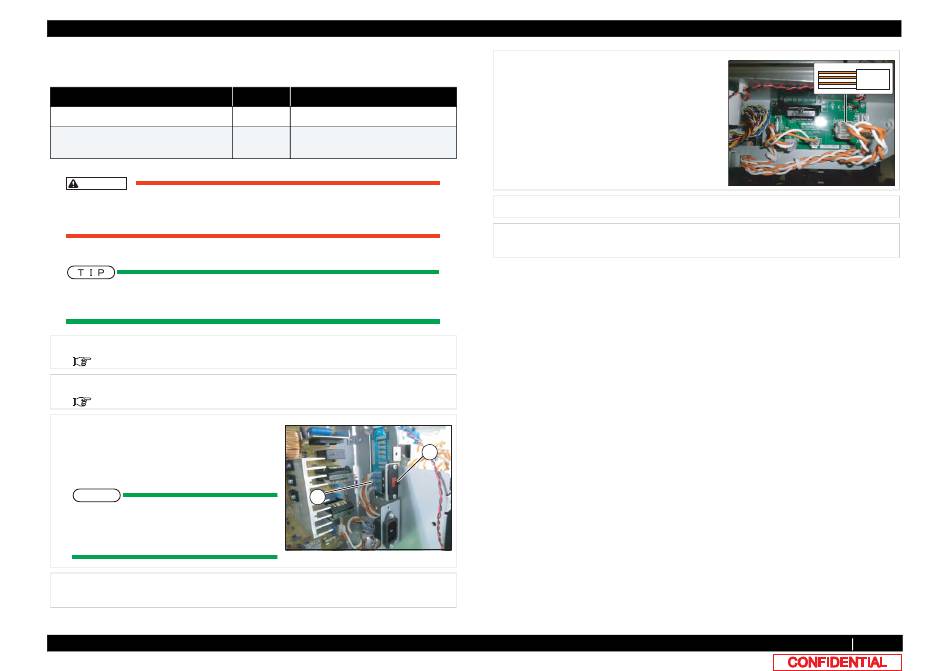

3.5 Replacing Board Base section
3.5.8

Replacing AC SEL SW Cable Assy

● Tools & Jigs & Maintenance part
Name
AC SEL SW Cable Assy
Phillips screwdriver No.2
CAUTION
Unplug Power cable set before replacing AC SEL SW Cable. There may be a risk of
electric shock by standby electricity.
This section describes the procedure to replace the maintenance part,AC SEL
SWCable Assy.In this section, it is referred to as AC SEL SW Cable.
1
Remove Top Cover.
3.2.1 Removing Top Cover
2
Removing L Side Cover.
3.2.2 Removing Side Cover
3
Remove AC SEL SW Cable from Slide Switch.
A : AC SEL SW Cable
B : Slide Switch
NOTE
When connecting, the number (2a, 1a, 2,
1, 2b, 1b) and switch number (2a, 1a, 2, 1,
2b, 1b) of a cable are made to agree.
4
Remove AC SEL SW Cable from the clamps
on the path.
3.5.8 Replacing AC SEL SW Cable Assy
No. Remarks
DG-44720 Exploded View Board Box
Generic -
products
A
5
Remove AC SEL SW Cable from HEATER
DRIVE Board.
6
Replace AC SEL SW Cable.
7
To reassemble unit, reverse the removal
procedure.
B
VJ628XE-M-00
J6
83
