3.5 Replacing Board Base section
3.5.3

Replacing IL Dummy Cable Assy

● Tools & Jigs & Maintenance part
Name
IL Dummy Cable Assy
Phillips screwdriver No.2
CAUTION
• Before replacing Board Assy and pulling or pushing cables, unplug Power cable
and leave it for a while.
If operating with Power cable still plugged, Board may be damaged or operators
may get an electric shock by residual electric charge.
• When you handle Circuit board, do not touch any elements on it with bare hands.
Doing so may cause electrostatic discharge and damage the elements.
1
Remove Top Cover.
3.2.1 Removing Top Cover
2

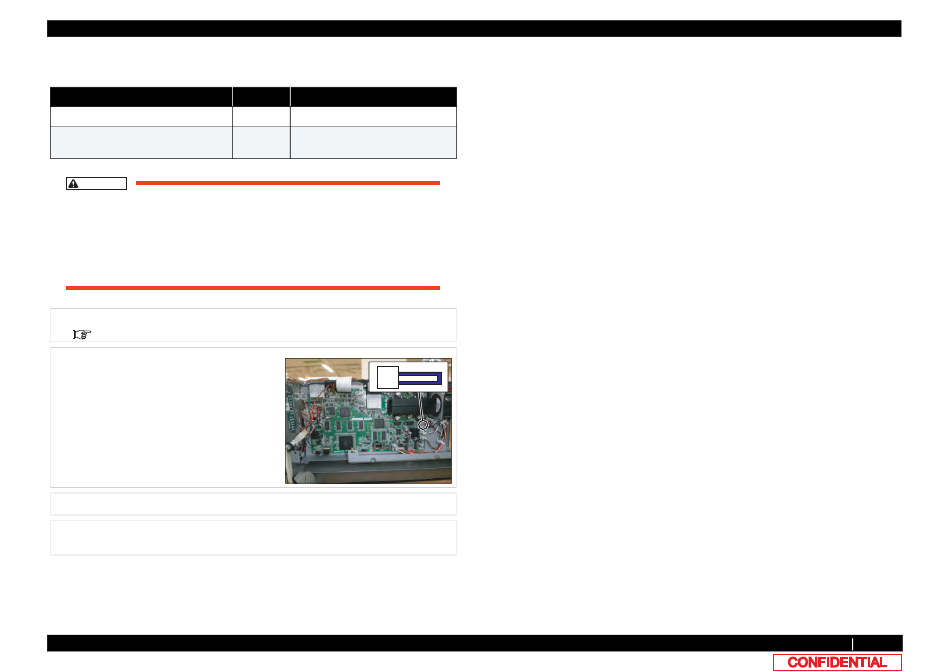

Remove IL Dummy Cable Assy from MAIN
Board.
3
Replace IL Dummy Cable.
4
To reassemble unit, reverse the removal
procedure.
3.5.3 Replacing IL Dummy Cable Assy
No. Remarks
DG-44713 Exploded View Board Box
Generic -
products
J14
VJ628XE-M-00
78
