3.10 Replacing Maintenance
3.10.6

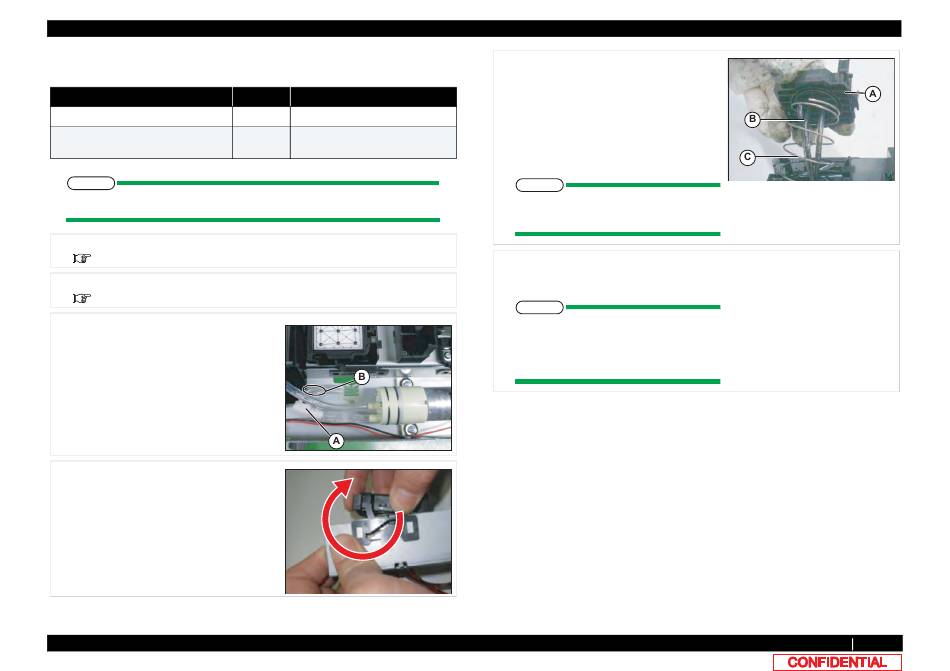

Replacing Cap Head Assy

● Tools & Jigs & Maintenance part
Name
Cap Head Assy
Phillips screwdriver No.2
NOTE
Since ink may drip, work covering with a waste clothes etc. downward.
1
Removing R Side Cover.
3.2.2 Removing Side Cover
2
Move Carriage to the opposite side of Platen.
3.8.1 Releasing Carriage Lock
3
Remove cap tube (4 pieces) from the joint (2
pieces).
A : Joint
B : Cap tube
4
Remove while pressing the cap head Assy, so
as to rotate in the direction of the arrow.
3.10.6 Replacing Cap Head Assy
No. Remarks
DG-41179 Exploded View Maintenance
Generic -
products
5
Remove Cap Tubes (3 pieces) from Cap Head
Assy.
6
Remove Cap Head Assy from Maintenance
Slide Base.
A : Cap Head Assy
B : Cap Tube
C : Cap Spring
NOTE
Cap Spring and the Cap tubes will be re-
used.
7
To reassemble unit, reverse the removal
procedure.
NOTE
When connecting cap tube and pump,
pay attention not to mix up connections.
If not connected to the corresponding, ink
may leak.
VJ628XE-M-00
163
