Replacing Wiper Solenoid Cable - MUTOH Valuevet VJ-628X Maintenance Manual

3.10 Replacing Maintenance
3.10.4

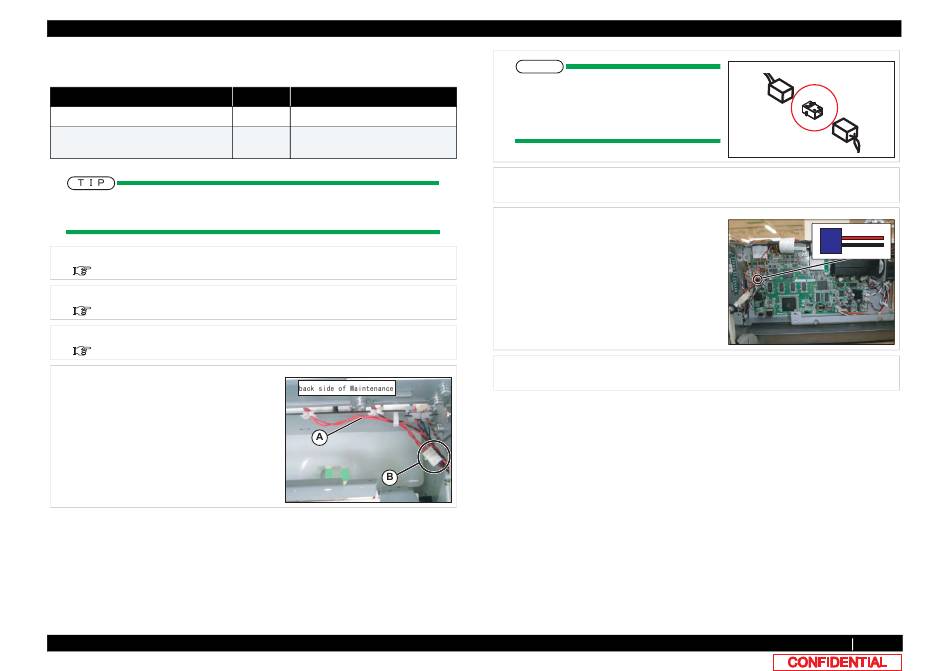

Replacing Wiper Solenoid Cable

● Tools & Jigs & Maintenance part
Name
Wiper SOL Cable Assy
Phillips screwdriver No.2
In this section describes the procedure to replace the maintenance part, Wiper SOL
Cable Assy. In this section, it is referred to as Wiper solenoid cable.
1
Removing R Side Cover.
3.2.2 Removing Side Cover
2
Move Carriage to the opposite side of Platen.
3.8.1 Releasing Carriage Lock
3
Remove Top Cover.
3.2.1 Removing Top Cover
4
Remove Wiper Solenoid Relay Cable from
Wiper Solenoid.
A : the cable of Wiper Solenoid
B : Connecting point
3.10.4 Replacing Wiper Solenoid Cable
No. Remarks
DG-44723 Exploded View Maintenance
Generic -
products
NOTE
Wiper solenoid and Wiper solenoid Cable
are connected in the post header
assembly. Please do not lose the post
header assembly.
5
Remove the Wiper solenoid cable from the
clamps on the path.
6
Remove the Wiper solenoid cable from the
Main board Assy.
7
To reassemble unit, reverse the removal
procedure.
