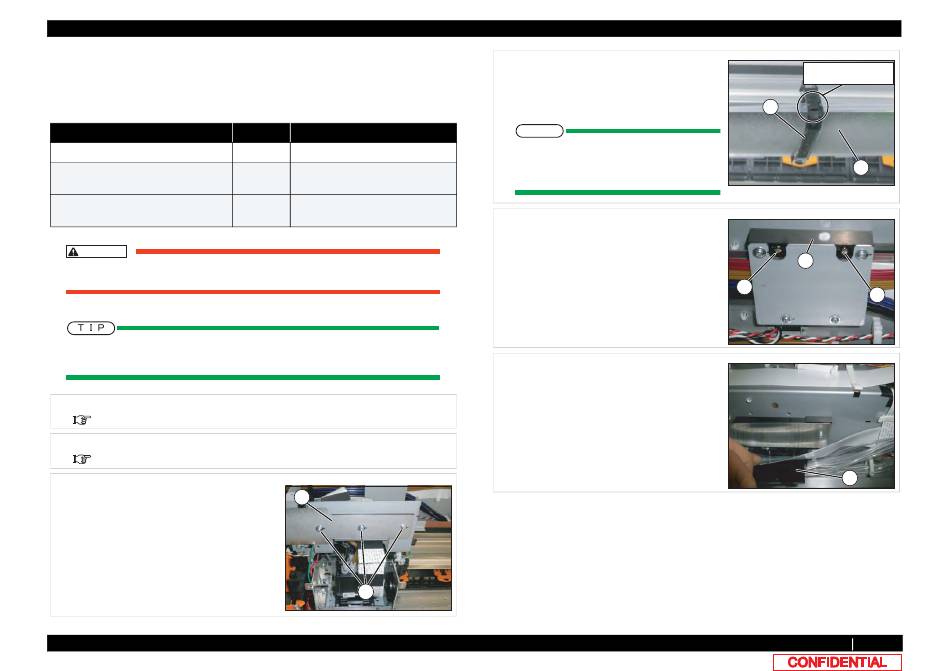

3.9 Replacing Cable Guide section

3.9 Replacing Cable Guide section
3.9.1

Replacing Steel Bare

● Tools & Jigs & Maintenance part
Name
Steel Bare Assy
Phillips screwdriver No.2
slotted screwdriver（precision）
CAUTION
Work not to cut a hand etc. with Steel Bare, wearing gloves.
This section describes the procedure to replace the maintenance part, Steel Bare
Assy.In this section, it is referred to as Steel Bare.
1
Remove Top Cover.
3.2.1 Removing Top Cover
2
Release the Carriage Lock.
3.8.1 Releasing Carriage Lock
3
Remove the screws (3 pieces) retaining Steel
Bare.
A : Pan-head screw with spring washer and
flat washer M3ｘ8
B : Steel Bare
3.9.1 Replacing Steel Bare
No. Remarks
DG-44704 Exploded View Cable Guide
Generic -
products
Generic -
products
B
A
4
Remove Clamp Bare (7 pieces).
A : Stell Bare
B : Clamp Bare
NOTE
Work, while you press down Steel Bare by
hand. There is a possibility that it may be
injured by Steel Bare being over.
5
Remove the screws (2 pieces) retaining Bare
Fixing Materials.
A : Tapping screw M3ｘ14 P Tight cup
B : Bare Fixing Materials
6
Remove Bare Fixing Material with Ink Tubes
and FFCs attached to it.（refer to the right
images)
A : Bare Fixing Material
VJ628XE-M-00
Release the hook
with a slotted screwdriver
B
A
B
A
A
A
146
