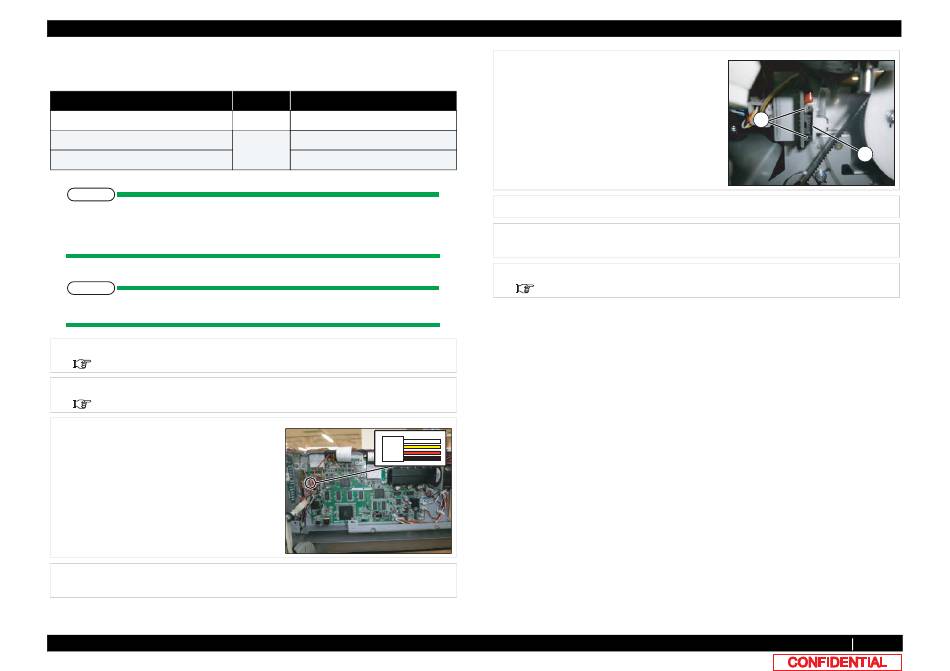

3.7 Replacing PF section
3.7.2

Replacing PF Encoder

● Tools & Jigs & Maintenance part
Name
PF Encoder Assy
Phillips screwdriver No.2
Phillips screwdriverNo.1
NOTE
This section describes the procedure to replace the maintenance part, PF Encoder
Assy.
n this section, it is reffered to as PF Encoder.
NOTE
Do NOT damage or bend PF Encoder scale or touch its outer circumference.
1
Remove R Side Cover and L Side Cover.
3.2.2 Removing Side Cover
2
Remove Top Cover.
3.2.1 Removing Top Cover
3
Remove PF Encoder from MAIN Board.
4
Remove the cable of PF Encoder from the
clamps on the path.
3.7.2 Replacing PF Encoder
No. Remarks
DG-44701 Exploded View PF Motor
Generic -
products
-
J24
5
Remove the screws (2 pieces) retaining PF
Encoder.
A : PF Encoder
B : Tapping screw M2ｘ8
6
Replace PF Encoder.
7
To reassemble unit, reverse the removal
procedure.
8
Perform various adjustments.
4.2 Adjustment Item
VJ628XE-M-00
B
A
111
