5.6 Adjustment Menu

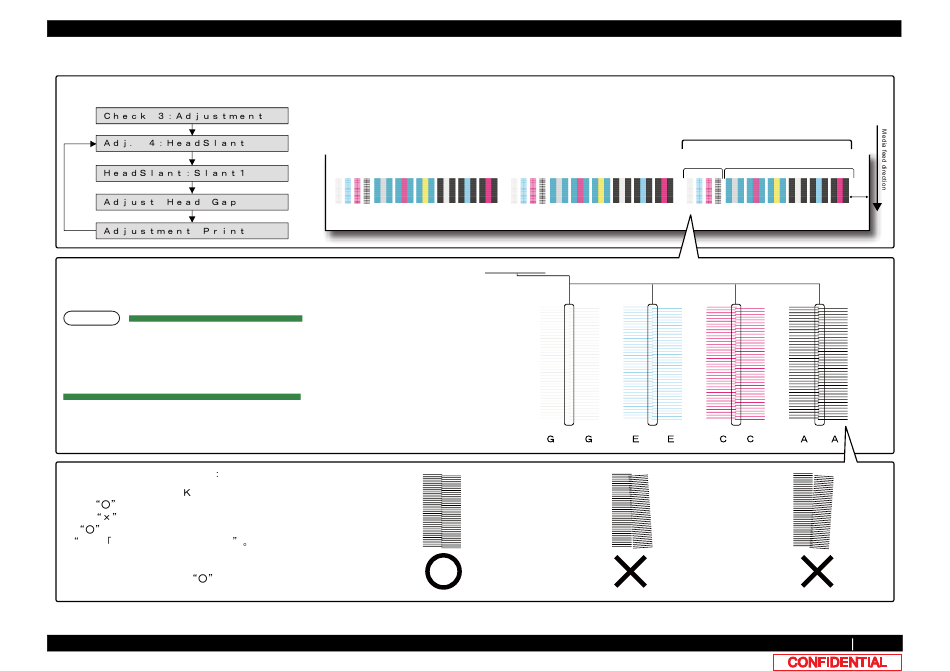

(1-f)Confirming vertical direction (white 8-color setting)
Print Adjustment pattern
[Enter]
[Enter]
[Enter]
[Enter]
after printing
Check Head Slant (Vertical)
T I P
1pass Uni-D/Bi-D
PF:360dpi CR:360dpi
Check the slant (Vertical):
For CW/CCW printing, the nozzles combination are, from the
media origin side, A, C, E, and G.
320cps, VSD1, Small dot
connecting point enlargement Ex. Nozzle A
(1) Check th eposition of and each color.
In , No need for adjustments.
In , it adjust, respectively and be set to
. Refer to the
4.7.2 Head Adjustment (Vertical)
(2) Repeat printing and adjustment
until a result becomes .
5.6.4 Head Slant Check Menu
Check the Slant (Vertical) at Connecting points (Refer to the following and an enlargement.)
Nozzle
VJ628XE-M-00
Origin side
According to the width of media,
following adjustment pattern is prnted
on three places or less.
for checking for checking
Vertical slant Horizontal slant
20mm
