94 Equipment installation and configuration

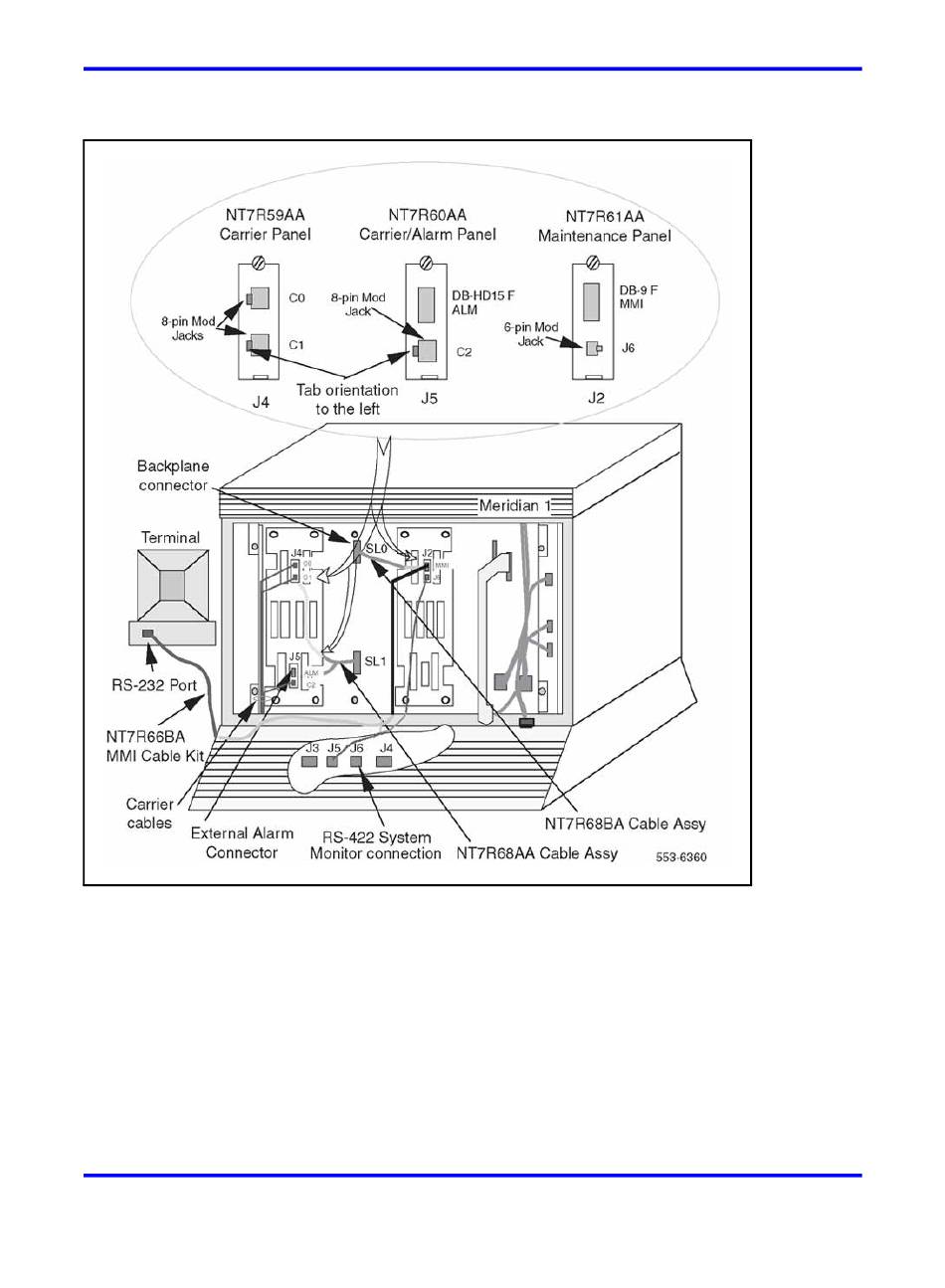

Figure 15
Backplane to I/O panel connections on the IPE module
Installing system monitor cables
The NT8D46AL system monitor cable is normally installed in the factory
and does not have to be installed at the site.
In the remote floor-standing column, the pedestal contains a slave system
monitor used to monitor Carrier Remote IPE system alarms. These alarms
are reported over the carrier link and the Local Carrier Interface card to
the local master system monitor and from there to the CPU. The CPU
sends PWR alarm messages to the system maintenance TTY identifying
the problem.
