70 Equipment installation and configuration

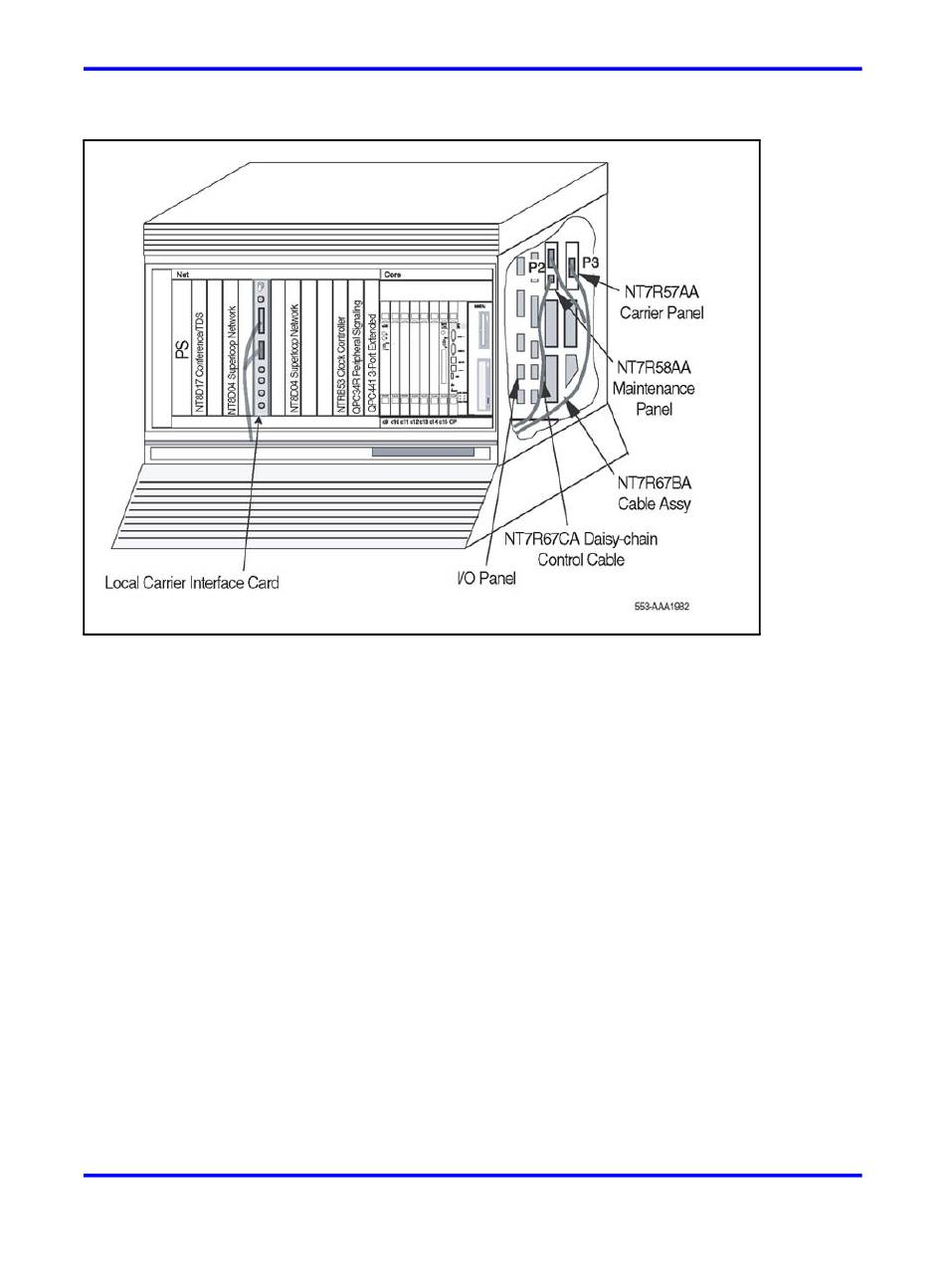

Figure 10
Local Carrier Interface card faceplate cable connections in Meridian 1 PBX 61C
Installing the NT7R67BA Local Carrier/Monitor Cable Assembly
into a module
Before plugging the NT7R67BA Local Carrier/Monitor Cable Assembly
P1 connector into the faceplate DB-25 female connector, install the
NT7R57AA Carrier Panel and the NT7R58AA Maintenance Panel
assemblies.
These assemblies are installed into the empty connector slots on the
I/O panel at the rear of the network module where the NT7R51 Local
Carrier Interface card(s) is installed. Refer to
connector cutouts selection" (page 60)
Note:
assemblies together with the NT7R67HA cable are integral parts of the
NT7R67BA Local Carrier/Monitor Cable Assembly. To assist you in
connecting the cable assemblies, refer to Appendix C,
LCI connection diagram (local site connections)" (page
To install the NT7R57AA Carrier and the NT7R58AA Maintenance
Panel assemblies and to plug the cable P1 connector into the faceplate
connector, follow the steps in
Carrier and the NT7R58AA Maintenance Panel assemblies" (page
The NT7R57AA Carrier and the NT7R58AA Maintenance Panel
