108 Equipment installation and configuration

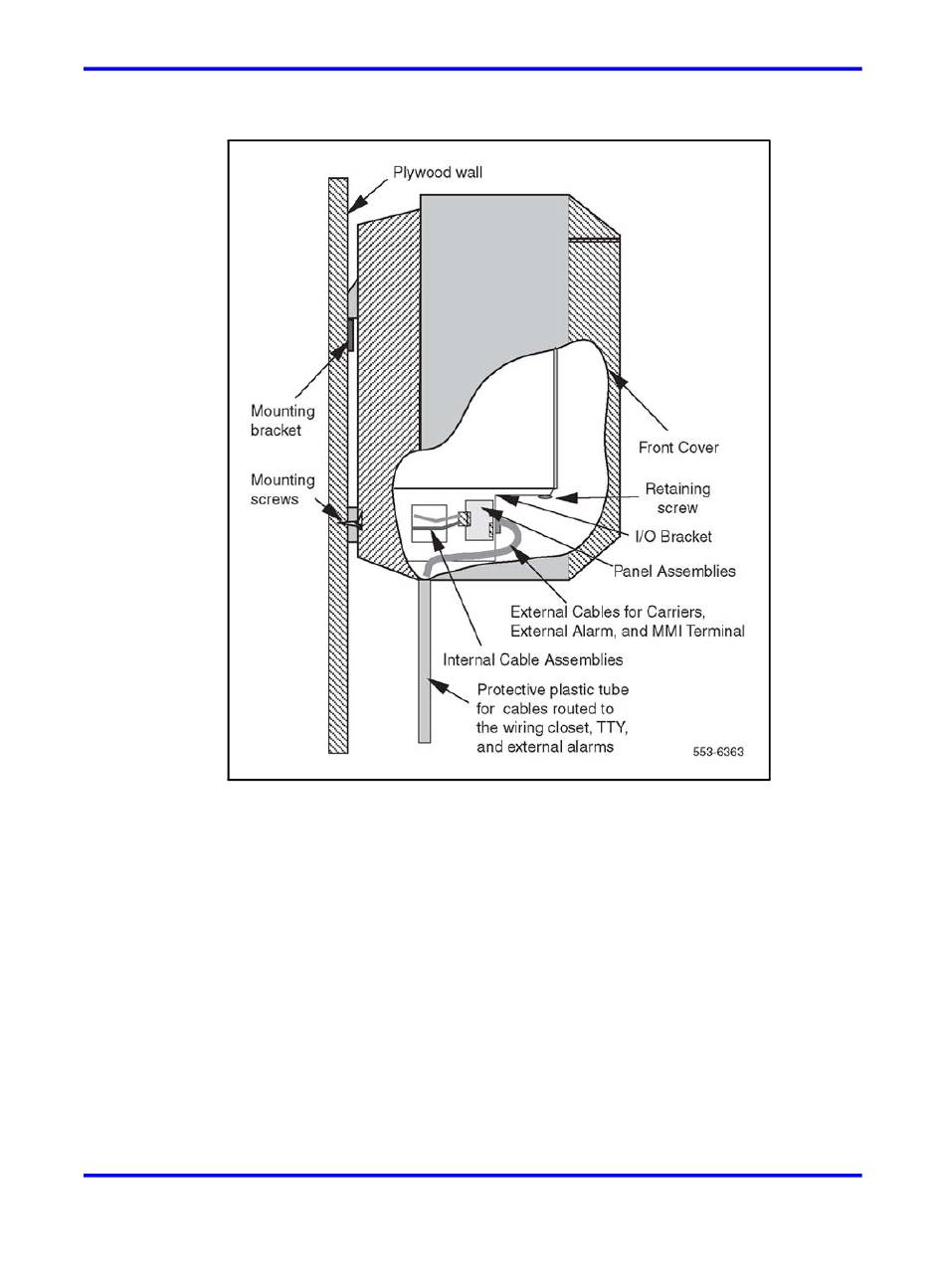

Figure 18
Carrier cable routing for the Carrier Remote IPE cabinet
Connecting remote MMI terminal and subscriber loop cables
In the Carrier Remote IPE cabinet option, the alarm monitoring is
performed by the Remote Carrier Interface card, which receives power
fail signals from the power supply through the backplane and sends
the information over carrier links to the Local Carrier Interface card for
processing by the local system CPU.
Refer to Appendix C, Figure 29 "Remote Carrier IPE cabinet connection
diagram (single RCI configuration)" (page 201) for the connection diagram.
