112 Equipment installation and configuration

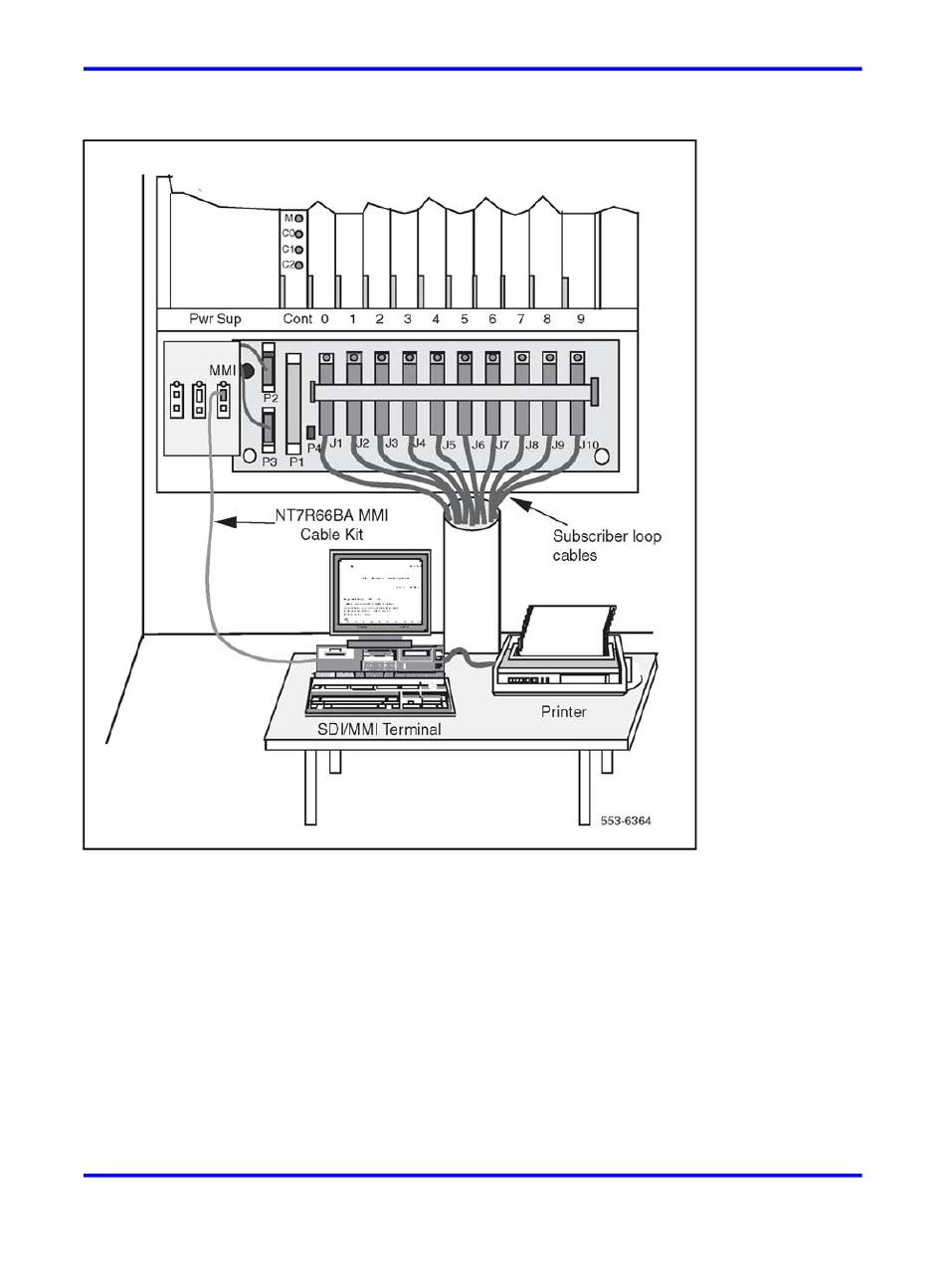

Figure 19
Subscriber loop (tip and ring) connectors
Connecting the attendant to the Carrier Remote IPE cabinet
The Carrier Remote IPE cabinet backplane contains P4, a 2-pin power
connector which provides a +15 V and –15 V power source for the
attendant console.
To make this connection, follow the steps in
attendant to the Carrier Remote IPE cabinet" (page
Nortel Communication Server 1000
Carrier Remote IPE Fundamentals
NN43021-555 04.01 4 June 2010
Copyright © 2007-2010 Nortel Networks. All Rights Reserved.
Procedure 27 "Connecting the
113).
