62 Equipment installation and configuration
the NT7R58AA Maintenance Panel Assembly into the connector cutout
J16.
•
Right I/O Panel:
For the second Local Carrier Interface card, install the NT7R57AA
Carrier Panel Assembly into the I/O panel connector cutout J2 and the
NT7R58AA Maintenance Panel Assembly into the connector cutout J1.
Carrier Remote IPE connection record label
Affix the connection record label
Record label" (page
Carrier Interface card(s). Place the label at the same level as the
corresponding I/O panel connector cutouts used to install its Carrier and
Maintenance Panel Assemblies for that specific Local Carrier Interface
card. If the label is not available, make a label and paste it on the module.

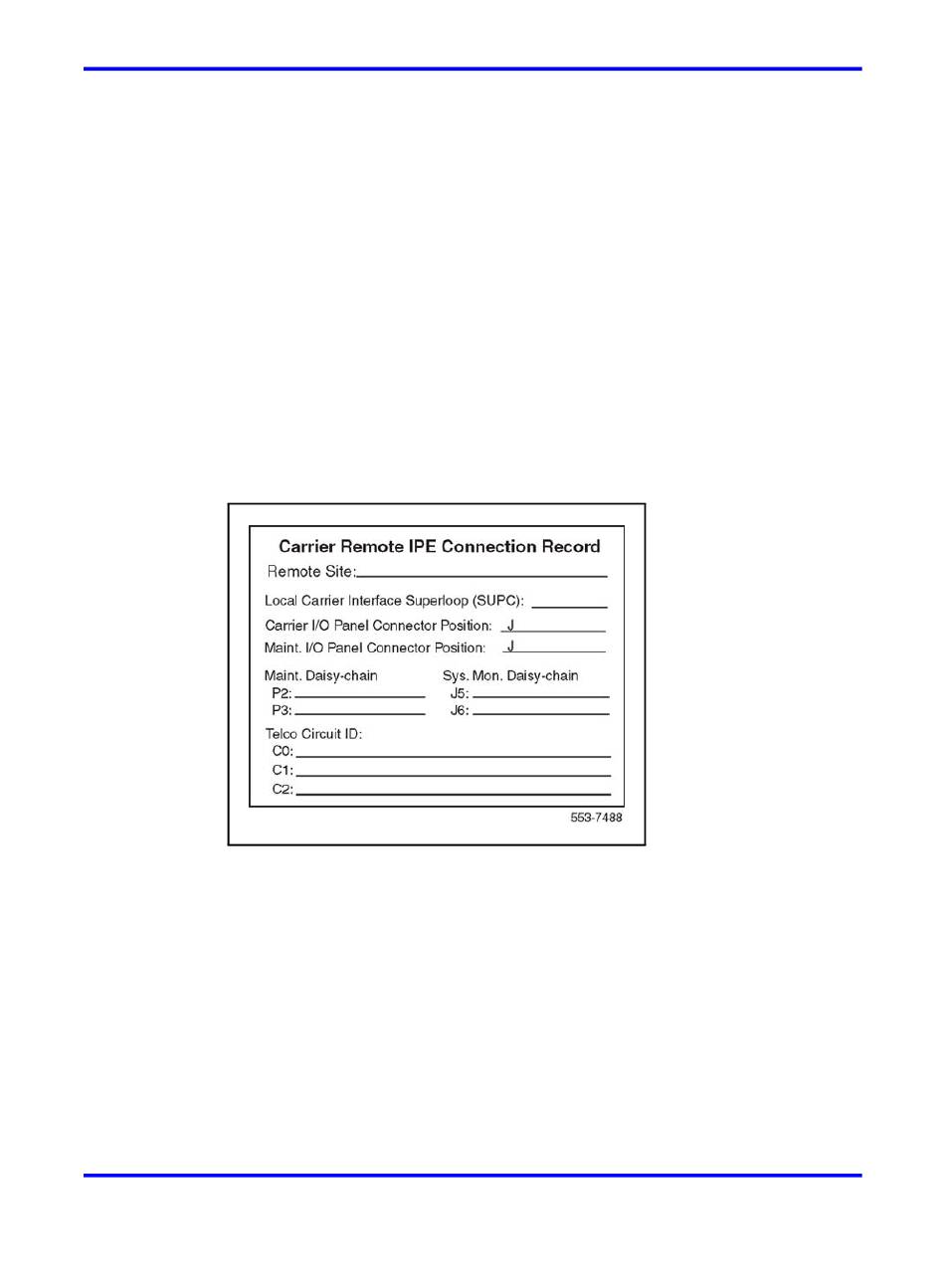

Figure 8
Carrier Remote IPE Connection Record label
Label entries description:
Remote Site – Name of the Remote Carrier IPE site associated with this
Local Carrier Interface card superloop number (SUPC)
Local Carrier Interface Superloop (SUPC) – Enter here the designated
superloop number for this specific Local Carrier Interface card.
Carrier I/O Panel Connector Position – Enter the number of the selected
connector cutout on the I/O panel where the Carrier Panel Assembly is
installed, for example J22.
62)) at the rear of the module housing the Local
Nortel Communication Server 1000
Carrier Remote IPE Fundamentals
NN43021-555 04.01 4 June 2010
Copyright © 2007-2010 Nortel Networks. All Rights Reserved.
(Figure 8 "Carrier Remote IPE Connection
