104 Equipment installation and configuration

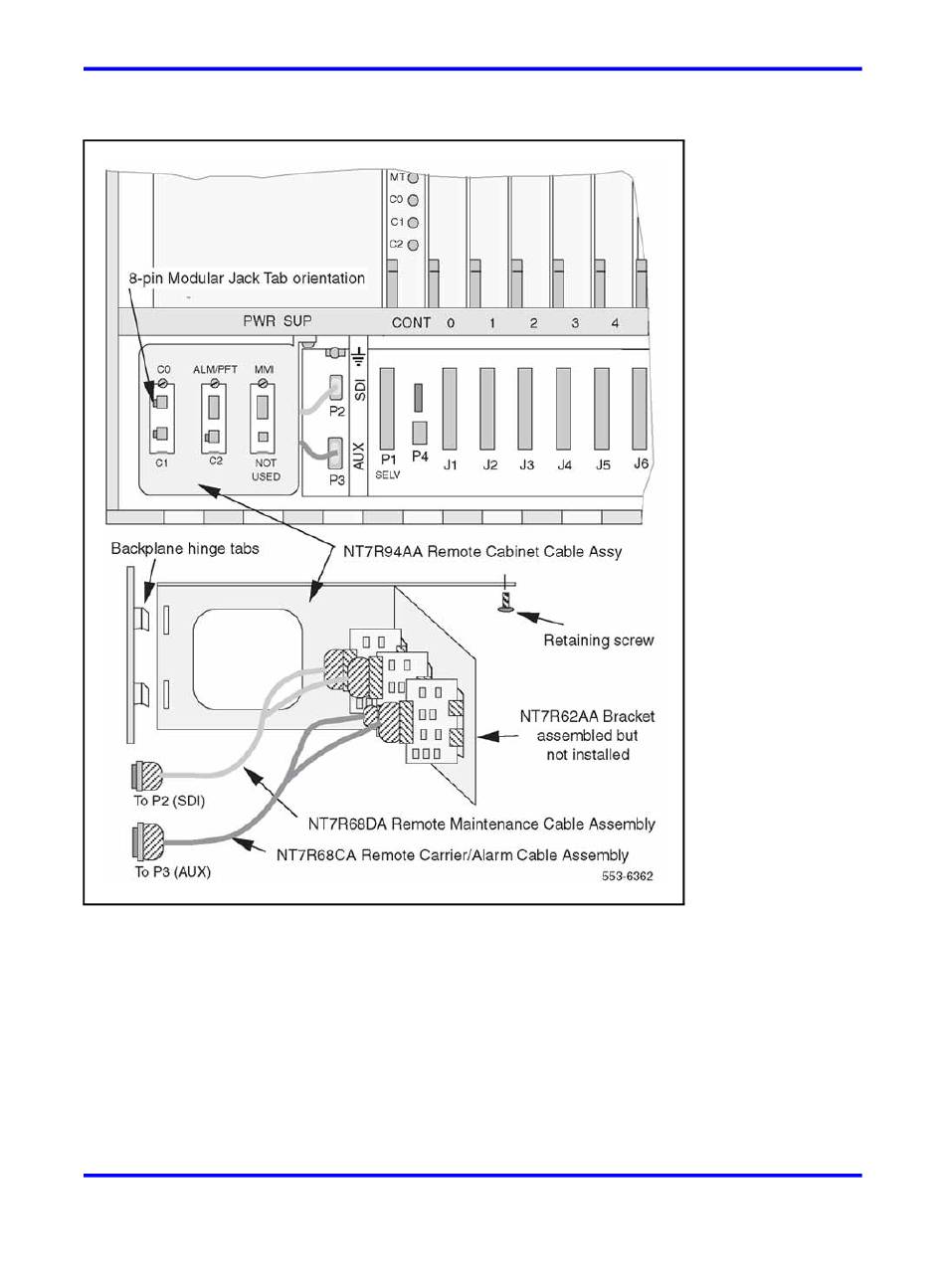

Figure 17
Carrier cable routing for the Carrier Remote IPE cabinet
Installing cards into the Carrier Remote IPE cabinet
The following steps show you how and where to install the cards in the
Carrier Remote IPE cabinet. Even though the cards are shipped in the
cabinet from the factory, for safety and ease of installation, these cards
should have been removed from the cabinet before it was installed it onto
the wall.
To install these cards, follow the steps in
into the Carrier Remote IPE cabinet" (page
Nortel Communication Server 1000
Carrier Remote IPE Fundamentals
NN43021-555 04.01 4 June 2010
Copyright © 2007-2010 Nortel Networks. All Rights Reserved.
Procedure 22 "Installing cards
105).
