202 Connection diagrams and external connectors pin assignment
Figure 30

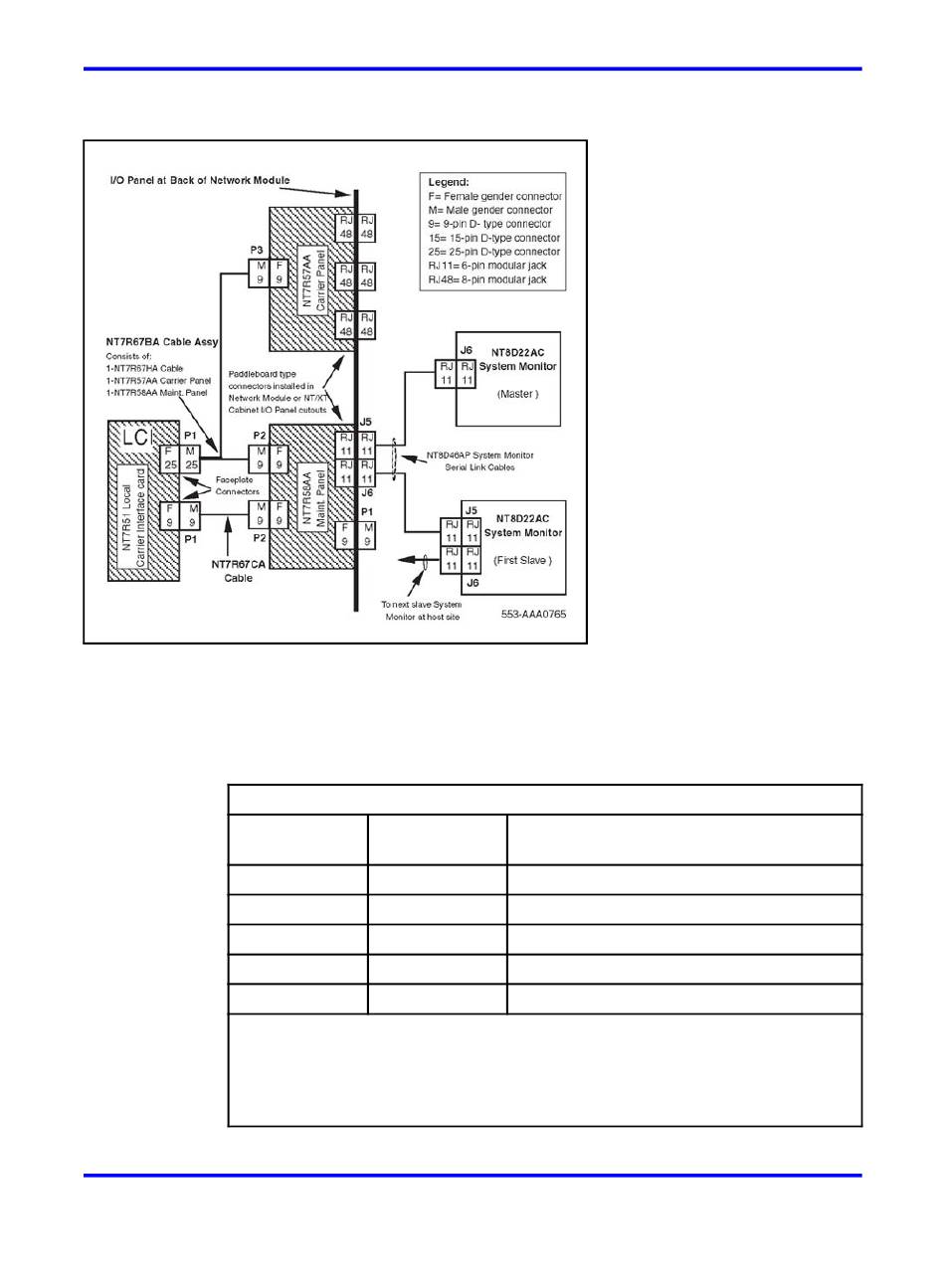

Local site system monitor connection diagram (single and multiple LCI configuration)
This Appendix provides the pin assignment for the NT7R57DA External
Maintenance Cable assembly, which connects the Maintenance port on
the I/O panel to the SDI port and the MMI terminal.
Table 34
8-pin modular jack pin assignment for all carrier connections
8-Pin Modular
Note: The cable that connects to this connector is provided in the NT7T87AA
T1 CSU Cable Kit. The cable is a straight through cables between the Carrier
Remote IPE 8-pin modular jack and the Telco demarcation point. If the carrier
links are just hardwired without using Telco network, pins 1 and 2 must be turned
over (swapped) with pins 5 and 4 respectively at one end of the cable.
T1/E1 Carrier Link 8-Pin Modular Jack Pinouts
Jack Signal Name
1 RTIPx
2 RRINGx
3 N/C
4 TRINGx
5
TTIPx
Nortel Communication Server 1000
Carrier Remote IPE Fundamentals
NN43021-555 04.01 4 June 2010
Copyright © 2007-2010 Nortel Networks. All Rights Reserved.
Signal Description
T1/E1 Carrier Receive Tip (from net)
T1/E1 Carrier Receive Ring (from net)
No connection
T1/E1 Carrier Transmit Ring (to net)
T1/E1 Carrier Transmit Tip (to net)
