80 Equipment installation and configuration

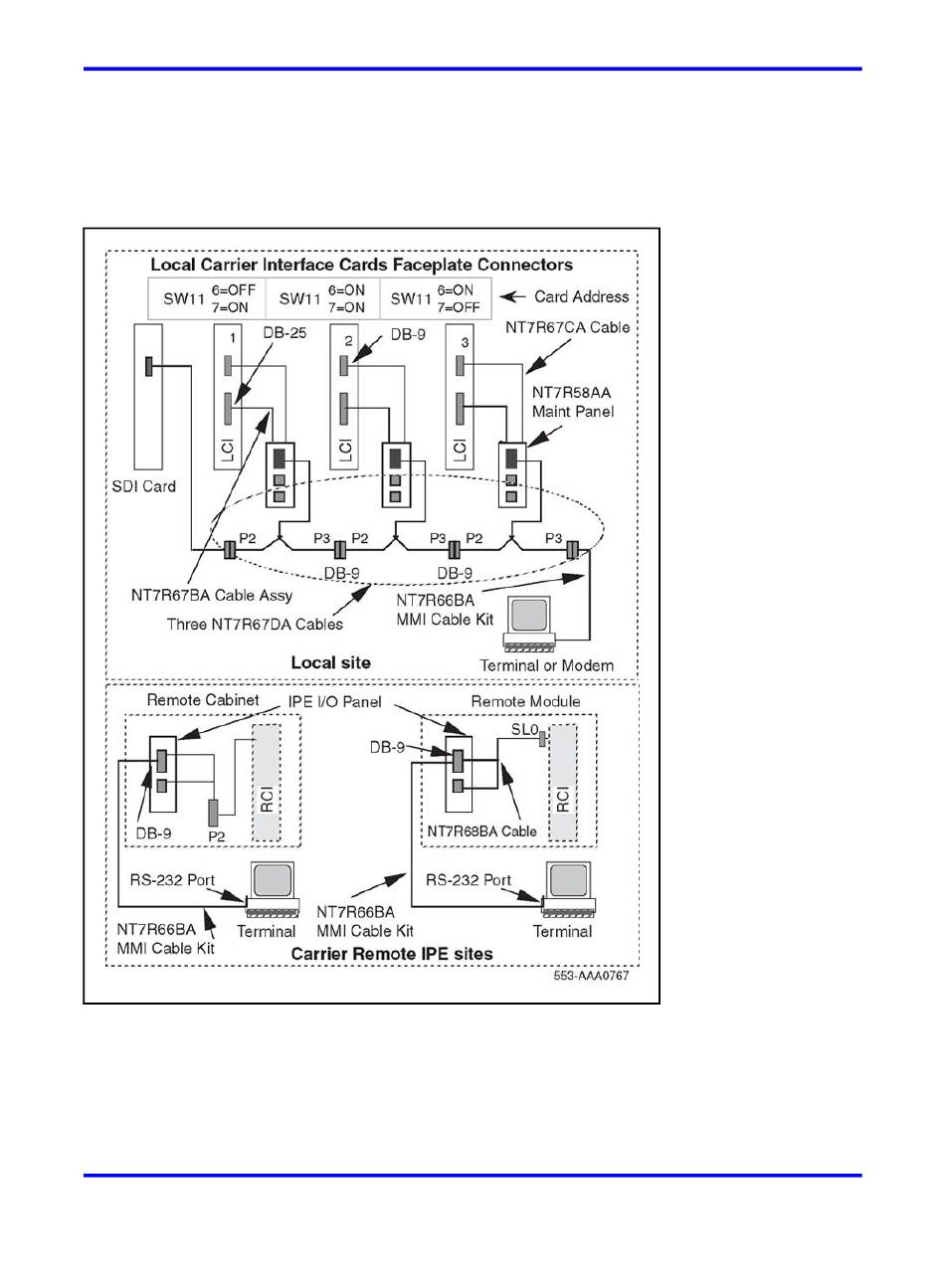

Figure 12 "Daisy-chaining multiple Local Carrier Interface cards" (page
80) shows daisy-chaining of multiple Local Carrier Interface cards to allow
sharing of an SDI port and a terminal or TTY.
Figure 12
Daisy-chaining multiple Local Carrier Interface cards
Connecting the system monitor cables
The NT7R58AA Maintenance Panel assembly provides two 6-pin modular
jacks to connect to the system monitor located in the pedestal and one
DB-9 SDI/TTY connector. The 6-pin modular jack J5 is used to connect to
the system monitor J6 jack in the pedestal, as shown in
Nortel Communication Server 1000
Carrier Remote IPE Fundamentals
NN43021-555 04.01 4 June 2010
Copyright © 2007-2010 Nortel Networks. All Rights Reserved.
Figure 11 "System
