For a DC system, connect the IPE shelf NTAK05 DC power
converter cord to the DC power source over the NTAK28AA
Junction Box and the NTAK0410 power cable.
12 Measure the ground resistance between the ground lug at the
bottom of the NT1P70/NT1P60 main cabinet and the ground
prong on the cabinet power cord.
It should measure 0 ohms. If the resistance is greater than 0
ohms, check the ground terminal on the power supply power
connector for continuity to the chassis.

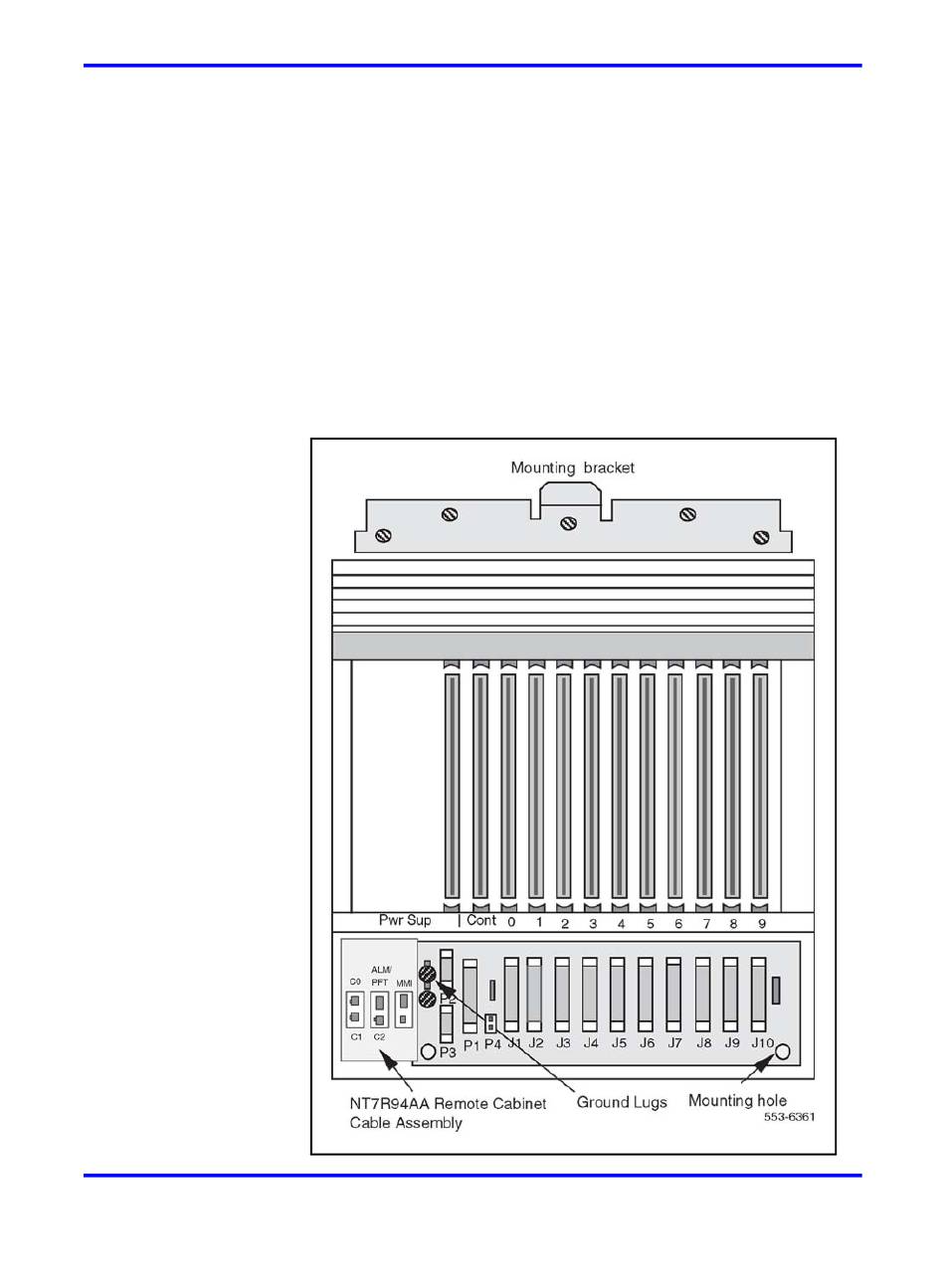

Figure 16 "Carrier Remote IPE cabinet" (page 101) shows the
Carrier Remote IPE cabinet with the mounting bracket and
the mounting holes. It also shows the ground lugs for ground
connections.

Figure 16

Carrier Remote IPE cabinet
Nortel Communication Server 1000
Carrier Remote IPE Fundamentals
