Instrument Components and Connectors

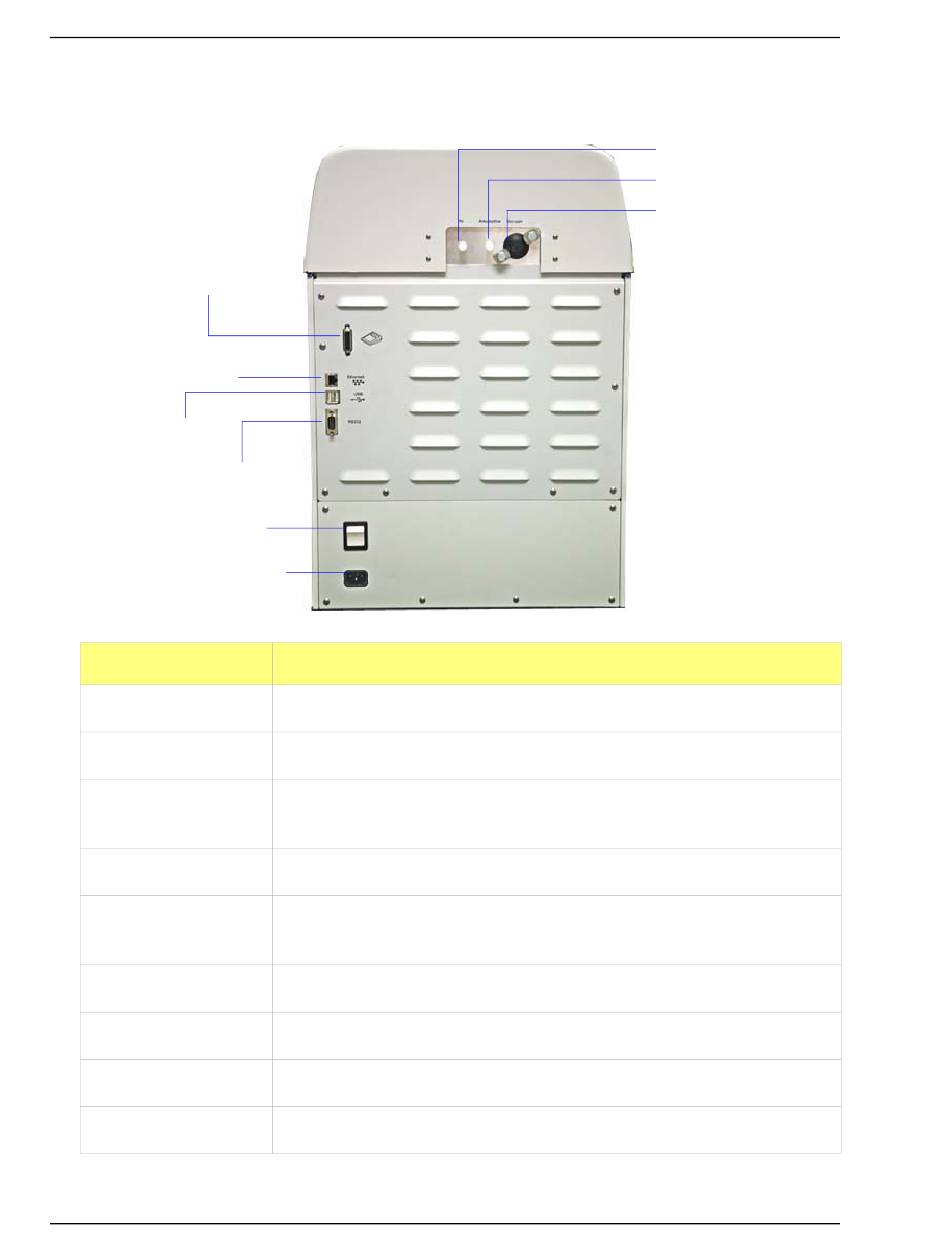

Rear Panel

Keypad connector
Ethernet port
USB ports
RS232 connector
On/Off Switch
Power connector
Component
Helium inlet port
Adsorptive inlet port
Vacuum pump
connector
Keypad connector
Ethernet port
USB ports
RS-232 connector
On/Off switch
Power connector
2-4
For attaching the helium gas supply.
For attaching the adsorptive (analysis) gas supply.
For attaching the vacuum pump hose.
Not used with the for Gemini VII version.
For connecting an Ethernet cable for communication between the analyzer
and the computer.
Not used with the Gemini VII version.
Used by service personnel to perform calibration procedures.
For turning the analyzer on and off.
For connecting the analyzer to the power supply.
Helium inlet port
Adsorptive inlet port
Vacuum pump connector
Description
