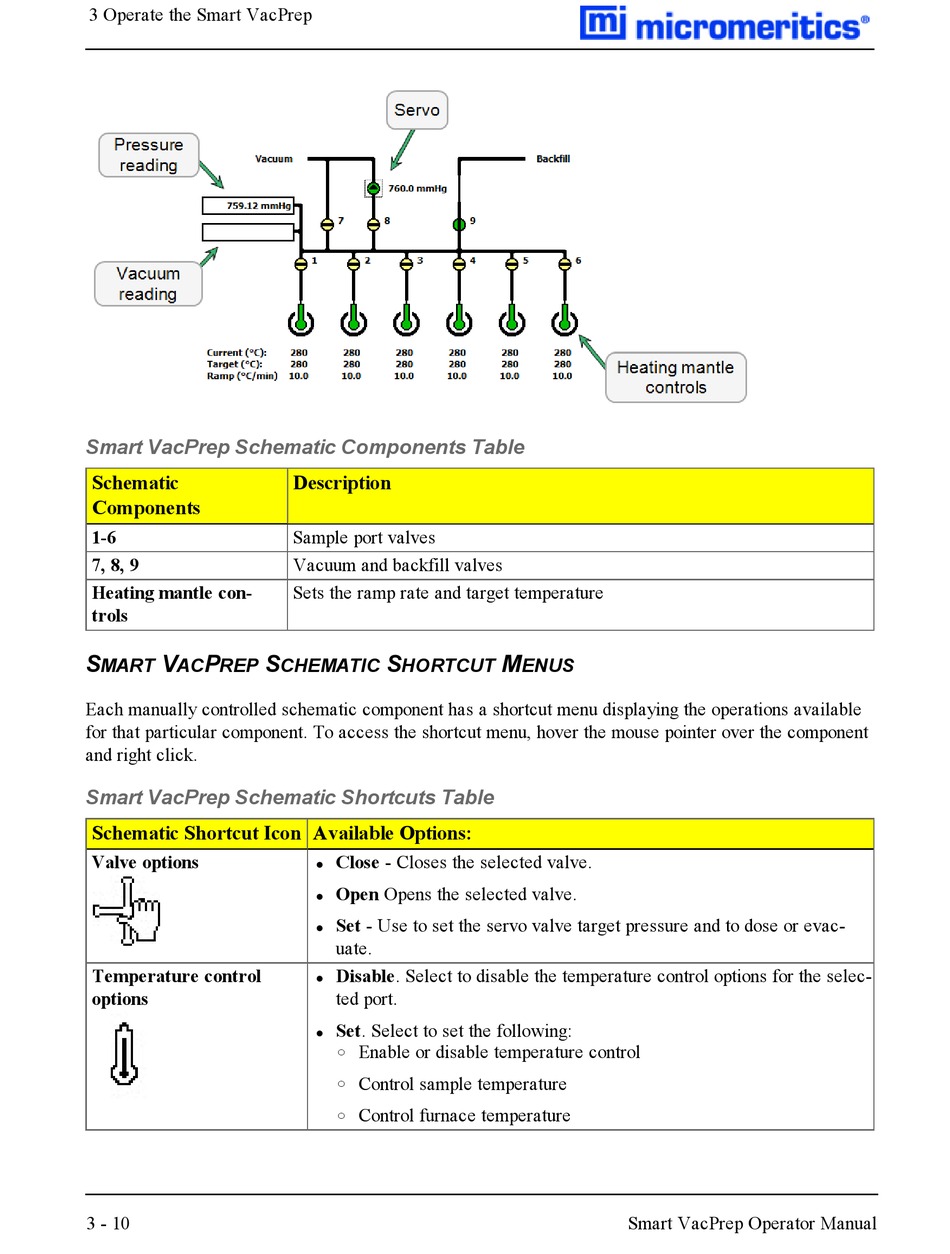

3 Operate the Smart VacPrep
Smart VacPrep Schematic Components Table
Schematic
Components
1-6
7, 8, 9
Heating mantle con-
trols
S V P
MART AC REP
Each manually controlled schematic component has a shortcut menu displaying the operations available
for that particular component. To access the shortcut menu, hover the mouse pointer over the component
and right click.
Smart VacPrep Schematic Shortcuts Table
Schematic Shortcut Icon Available Options:
Valve options
Temperature control
options
3 - 10
Description
Sample port valves
Vacuum and backfill valves
Sets the ramp rate and target temperature
S S
CHEMATIC HORTCUT
Close - Closes the selected valve.
l
Open Opens the selected valve.
l
Set - Use to set the servo valve target pressure and to dose or evac-
l
uate.
Disable. Select to disable the temperature control options for the selec-
l
ted port.
Set. Select to set the following:
l
Enable or disable temperature control
o
Control sample temperature
o
Control furnace temperature
o
M
ENUS
Smart VacPrep Operator Manual
