Adding an Analyzer

An Ethernet switch is required when connecting multiple analyzers. After connecting the Ethernet
switch, continue with the Software, page

Ethernet Switch

1. Connect the power cord of the Ethernet switch to an appropriate power outlet.
2. For each analyzer to be added, connect an Ethernet cable from the Ethernet labeled port on the
rear of the analyzer to a numbered port on the Ethernet switch taking care not to use the uplink
port on the switch.
3. Use an Ethernet cable to connect the computer to the Ethernet switch.
4. Ensure the power is turned on to the computer, the Ethernet switch, and each analyzer.

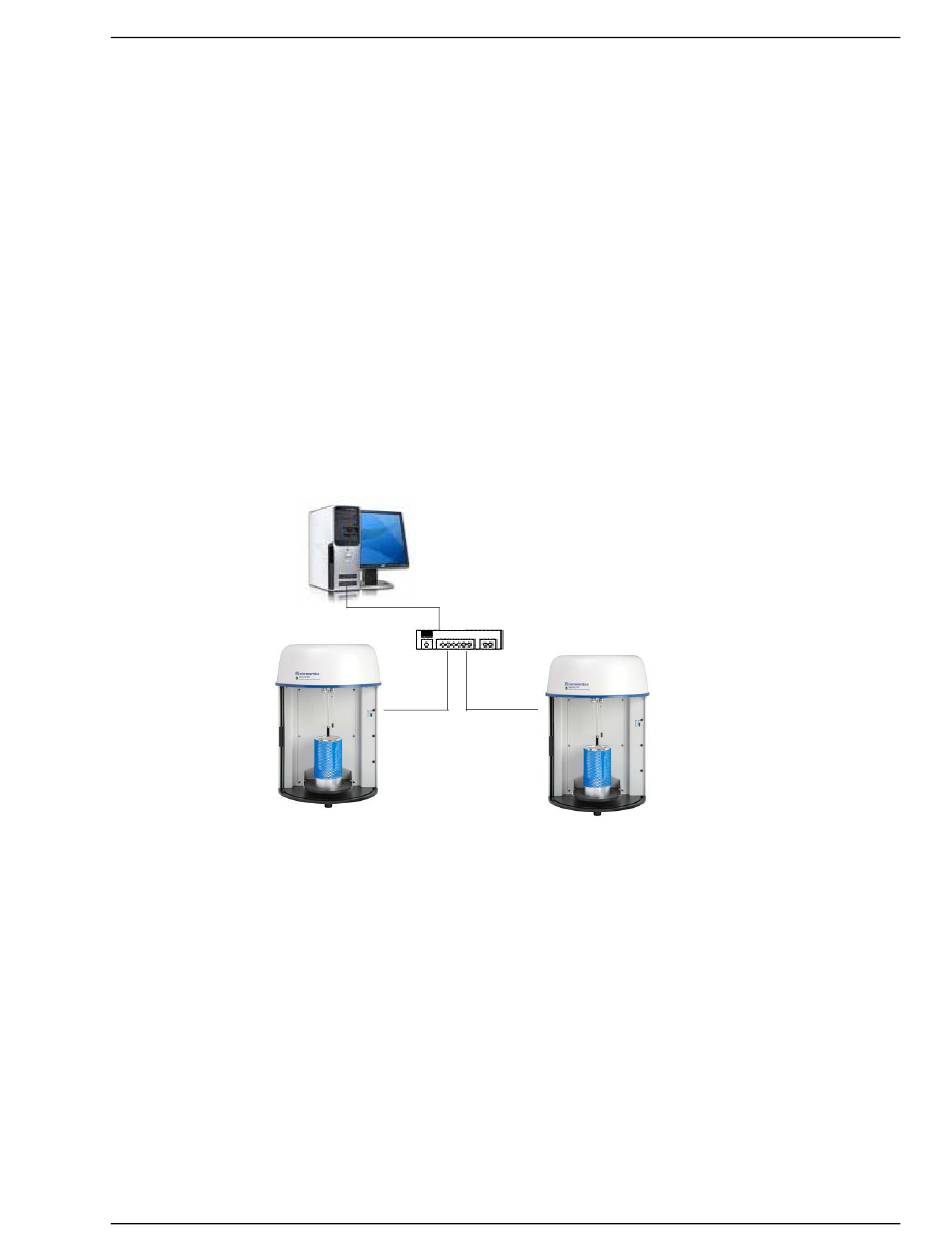

The finished configuration should look similar to the following:
5. Ensure the power is turned on to the computer, the Ethernet switch, and each analyzer.
