Gemini VII

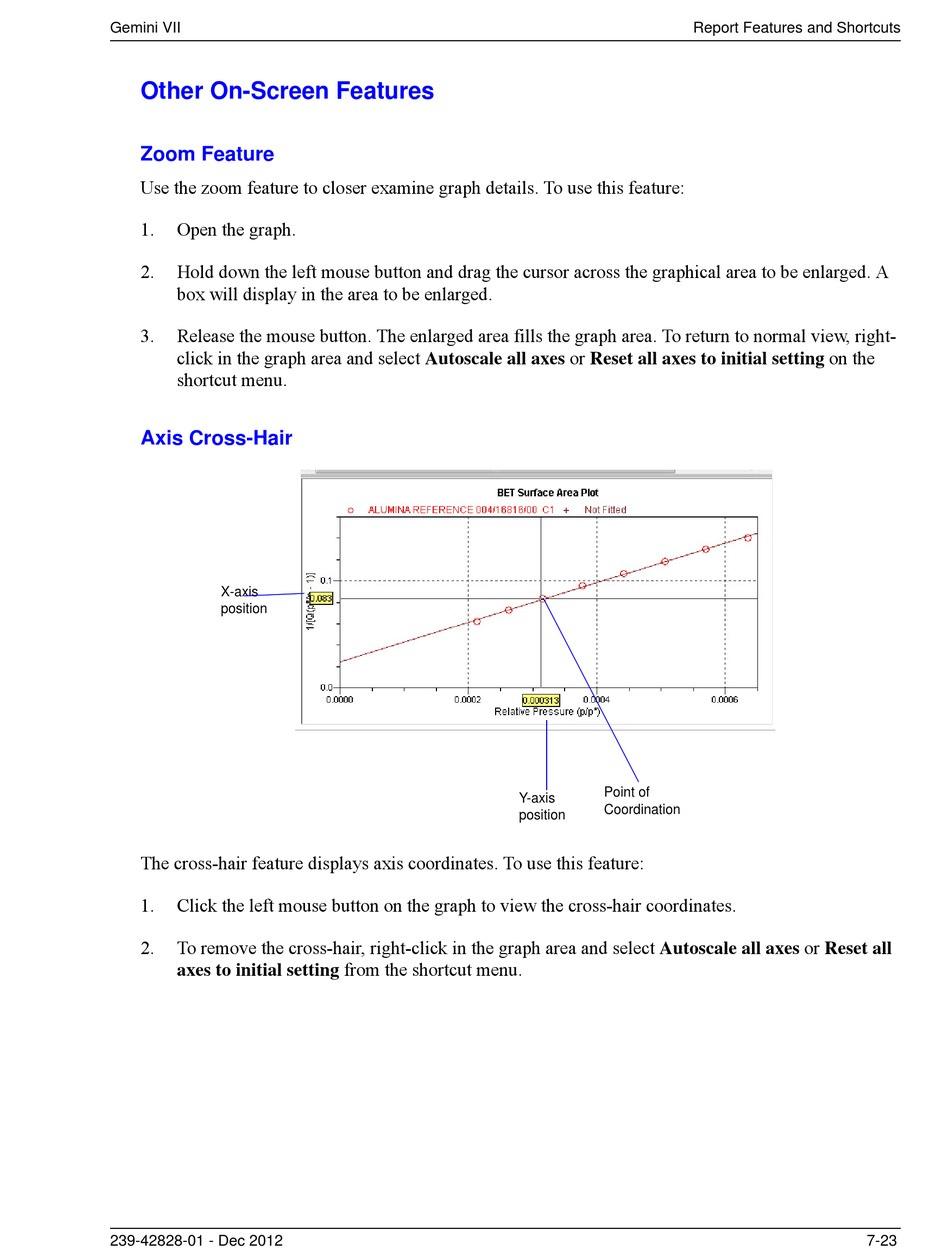

Other On-Screen Features

Zoom Feature

Use the zoom feature to closer examine graph details. To use this feature:
1. Open the graph.
2. Hold down the left mouse button and drag the cursor across the graphical area to be enlarged. A
box will display in the area to be enlarged.
3. Release the mouse button. The enlarged area fills the graph area. To return to normal view, right-
click in the graph area and select Autoscale all axes or Reset all axes to initial setting on the
shortcut menu.

Axis Cross-Hair

X-axis
position
The cross-hair feature displays axis coordinates. To use this feature:
1. Click the left mouse button on the graph to view the cross-hair coordinates.
2. To remove the cross-hair, right-click in the graph area and select Autoscale all axes or Reset all
axes to initial setting from the shortcut menu.
239-42828-01 - Dec 2012
Report Features and Shortcuts
Point of
Y-axis
Coordination
position
7-23
