Gemini VII

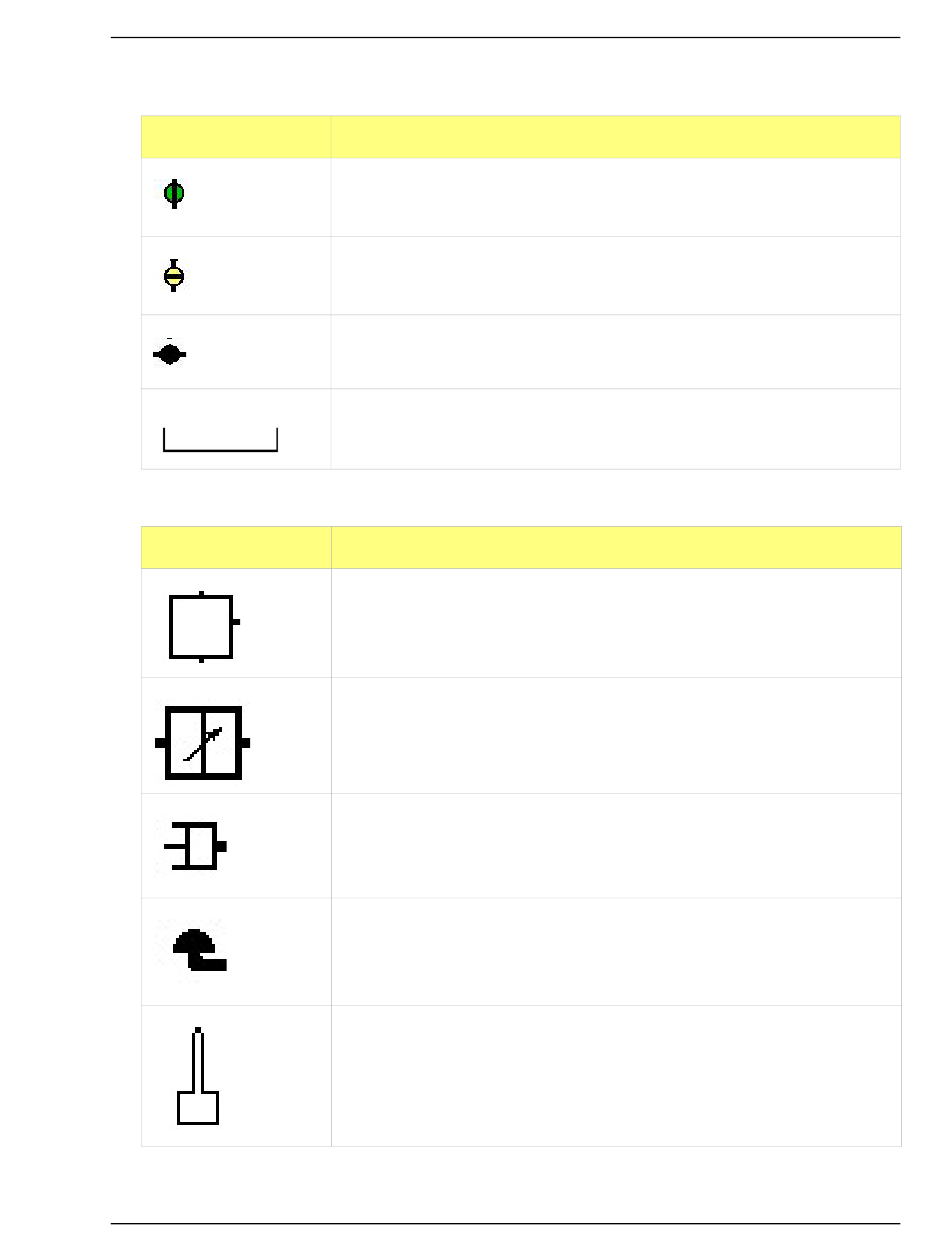

Instrument Schematic Components

Component
The following components cannot be controlled manually.
Component
239-42828-01 - Dec 2012
Valve - open. The icon color changes to green when open.
Valve - closed. The icon color changes to yellow when closed.
Servo Valve
Elevator
Reservoir for the balance tube (left side) and sample tube.
Volume adsorbed transducer (upper) and the differential pressure
transducer. The reading for the Volume Adsorbed transducer is displayed
just above its symbol. The reading for the sample pressure transducer is
displayed just below the analysis servo valve and valve 5-s.
Balance volume adjustment. Can be adjusted only by a Micromeritics
service representative.
Pressure relief valve. Prevents excessive pressure build-up in the event of
abnormal operation.
Represents the balance tube (left side) and the sample tube.
Enable Manual Control
Description
Description
6-9
