DVVA II 4000

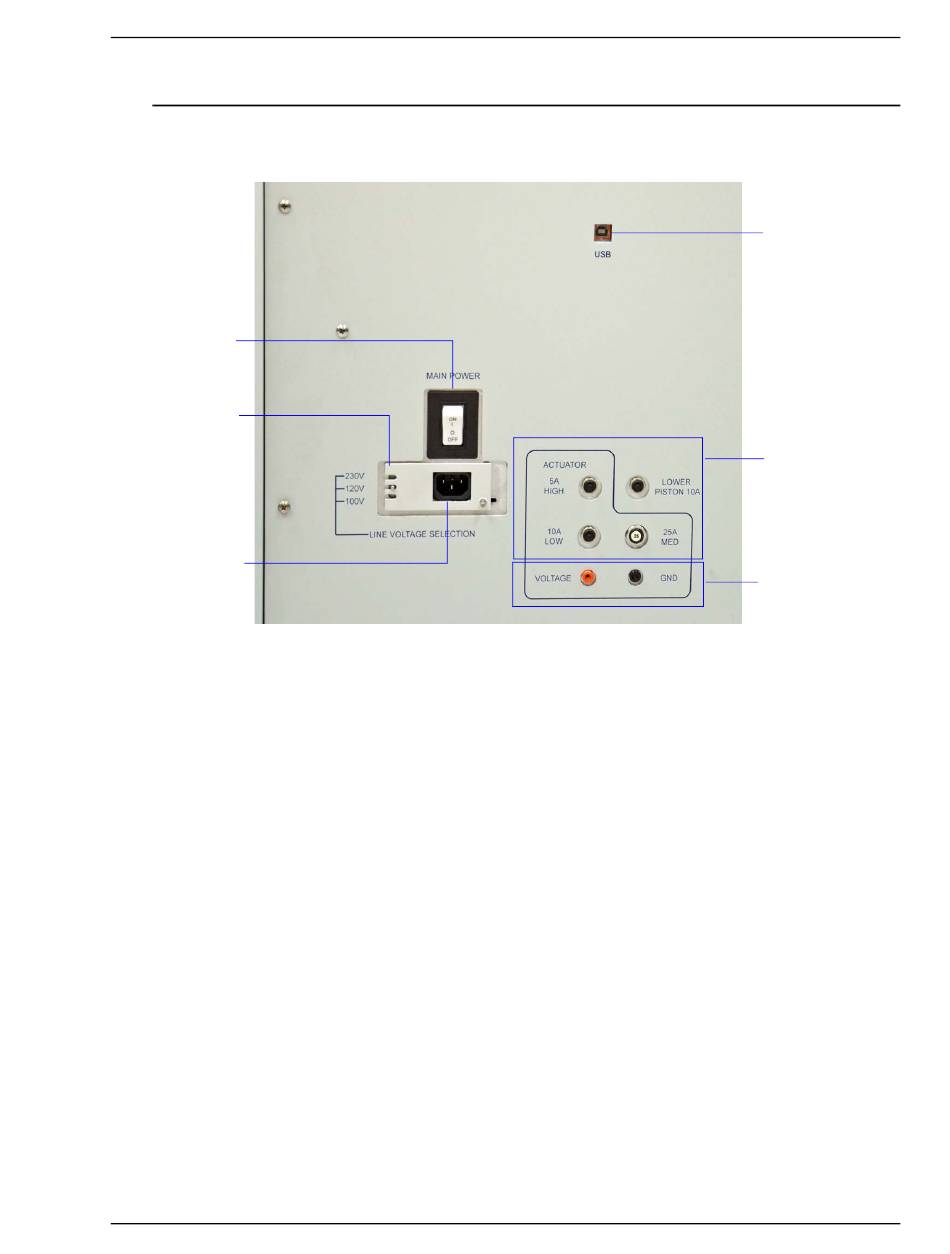

Rear Panel

Master
power
switch
Voltage
selection
Power
connector
USB port
Voltage selector switch
Power connector
Actuator and lower
piston circuit breakers
Test points
Master power switch
400-42803-01 (Rev B) - July 2017
For connecting the communications cable to the computer
Enables you to select the correct operating voltage
For connecting the power cord
A trip of one of these breakers may indicate a motor failure.
Should this occur, wait a few minutes, reset the breaker, and retry
your operation. If the breaker trips again, contact your service
representative.
For service personnel only
Master power for the analyzer
Controls, Indicators, and Connectors
USB port
Circuit
breakers
Test points
2-3
