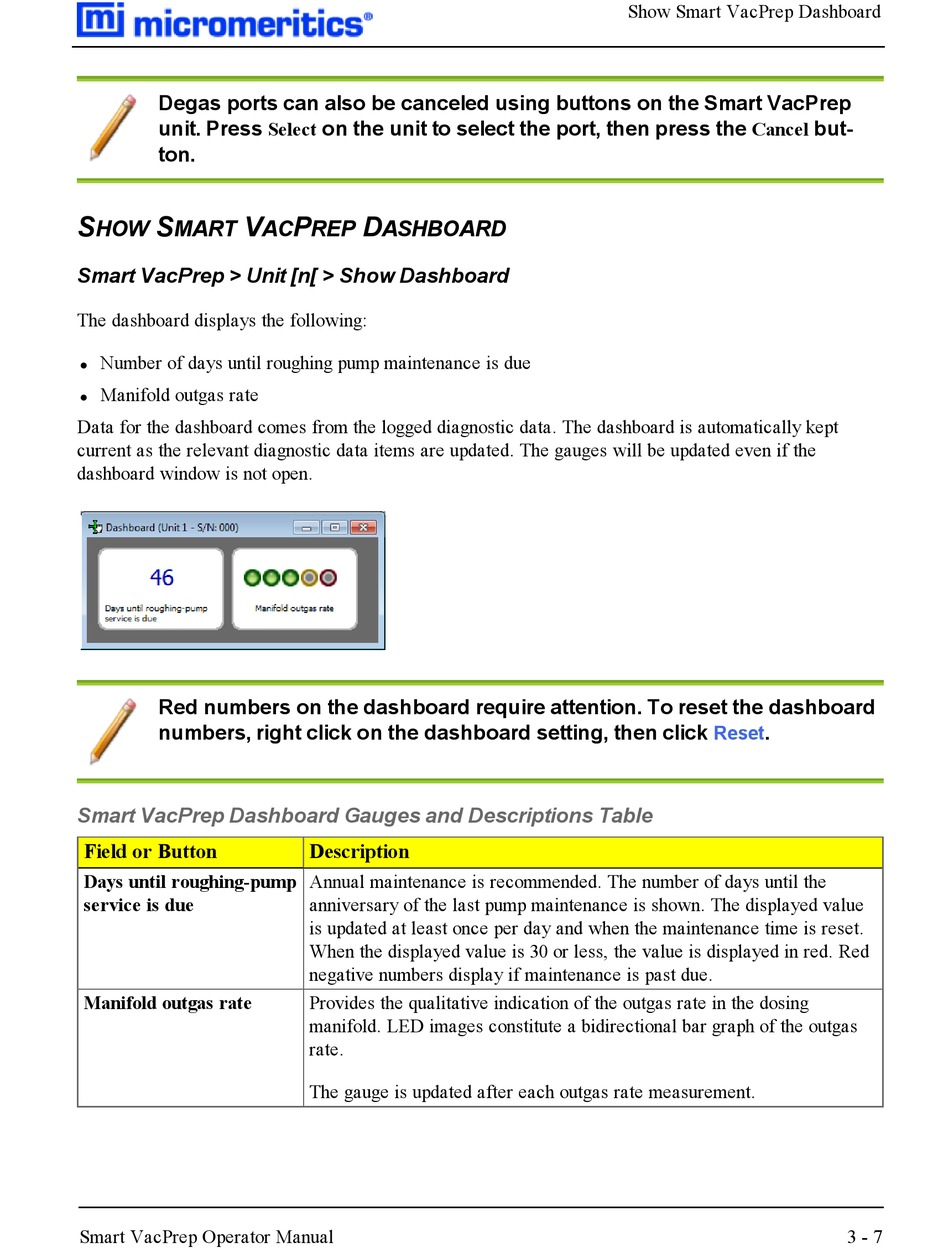

Show Smart Vacprep Dashboard - Micromeritics Gemini VII 2390a Operator's Manual

Degas ports can also be canceled using buttons on the Smart VacPrep
unit. Press
ton.
S S V
HOW MART
Smart VacPrep > Unit [n[ > Show Dashboard
The dashboard displays the following:
Number of days until roughing pump maintenance is due
l
Manifold outgas rate
l
Data for the dashboard comes from the logged diagnostic data. The dashboard is automatically kept
current as the relevant diagnostic data items are updated. The gauges will be updated even if the
dashboard window is not open.
Red numbers on the dashboard require attention. To reset the dashboard
numbers, right click on the dashboard setting, then click
Smart VacPrep Dashboard Gauges and Descriptions Table
Field or Button
Days until roughing-pump
service is due
Manifold outgas rate
Smart VacPrep Operator Manual
on the unit to select the port, then press the
Select
P D
AC REP ASHBOARD
Description
Annual maintenance is recommended. The number of days until the
anniversary of the last pump maintenance is shown. The displayed value
is updated at least once per day and when the maintenance time is reset.
When the displayed value is 30 or less, the value is displayed in red. Red
negative numbers display if maintenance is past due.
Provides the qualitative indication of the outgas rate in the dosing
manifold. LED images constitute a bidirectional bar graph of the outgas
rate.
The gauge is updated after each outgas rate measurement.

Show Smart VacPrep Dashboard

Cancel
.
Reset
but-
