Preventive Maintenance

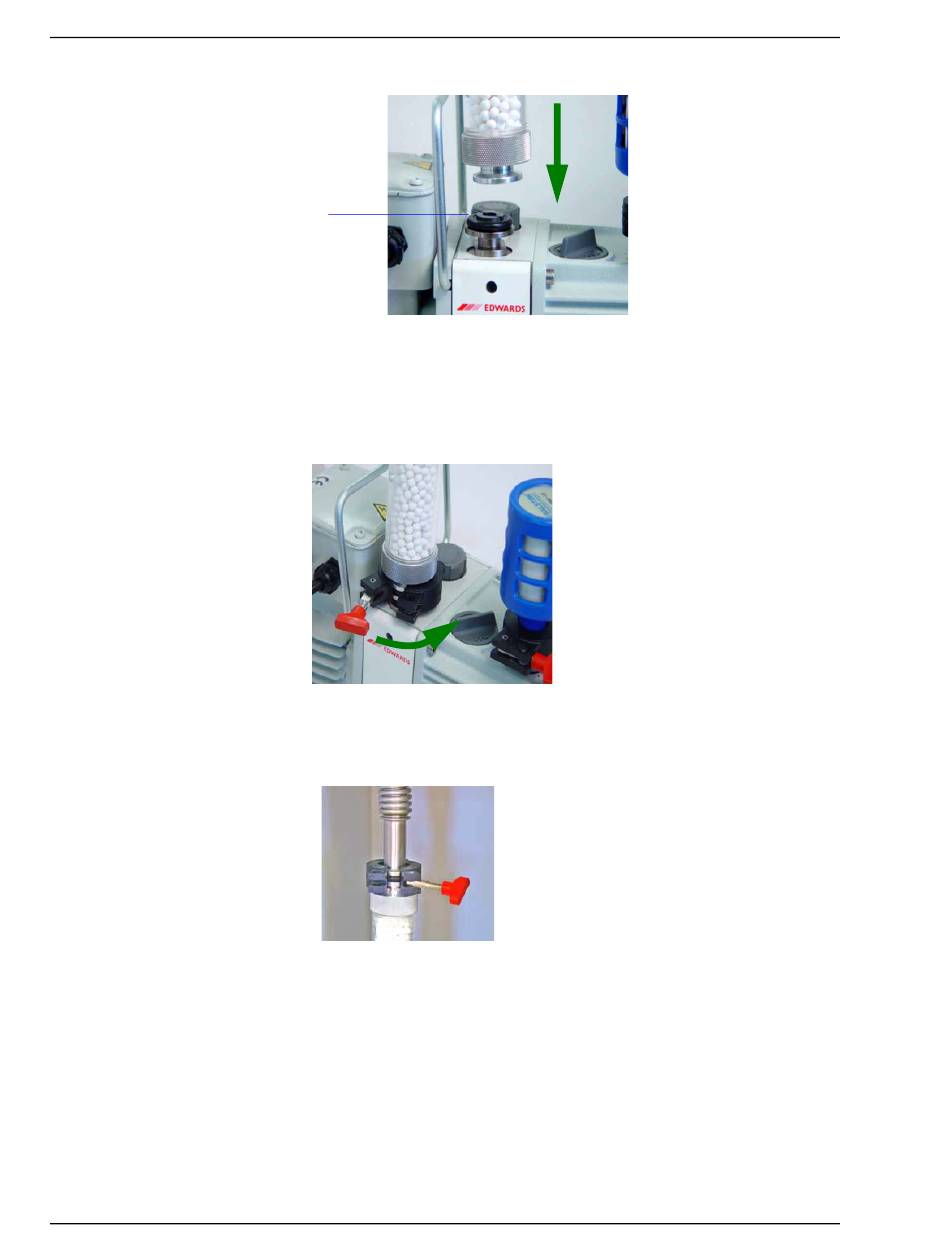

Centering ring

15. Place the trap on the centering ring.

16. Open the clamp and place it around the flange of the intake port and the flange of the trap. Swing

the clamp fastening screw toward the intake port until it fits into the slot in the other half of the

clamp. Tighten the wing nut securely by hand.

17. Reconnect the hose from the analyzer to the oil vapor trap.

a.) Place the clamp around the vacuum pump hose flange and vapor trap.
