Sample Compartment - Micromeritics Gemini VII 2390a Operator's Manual

Gemini VII

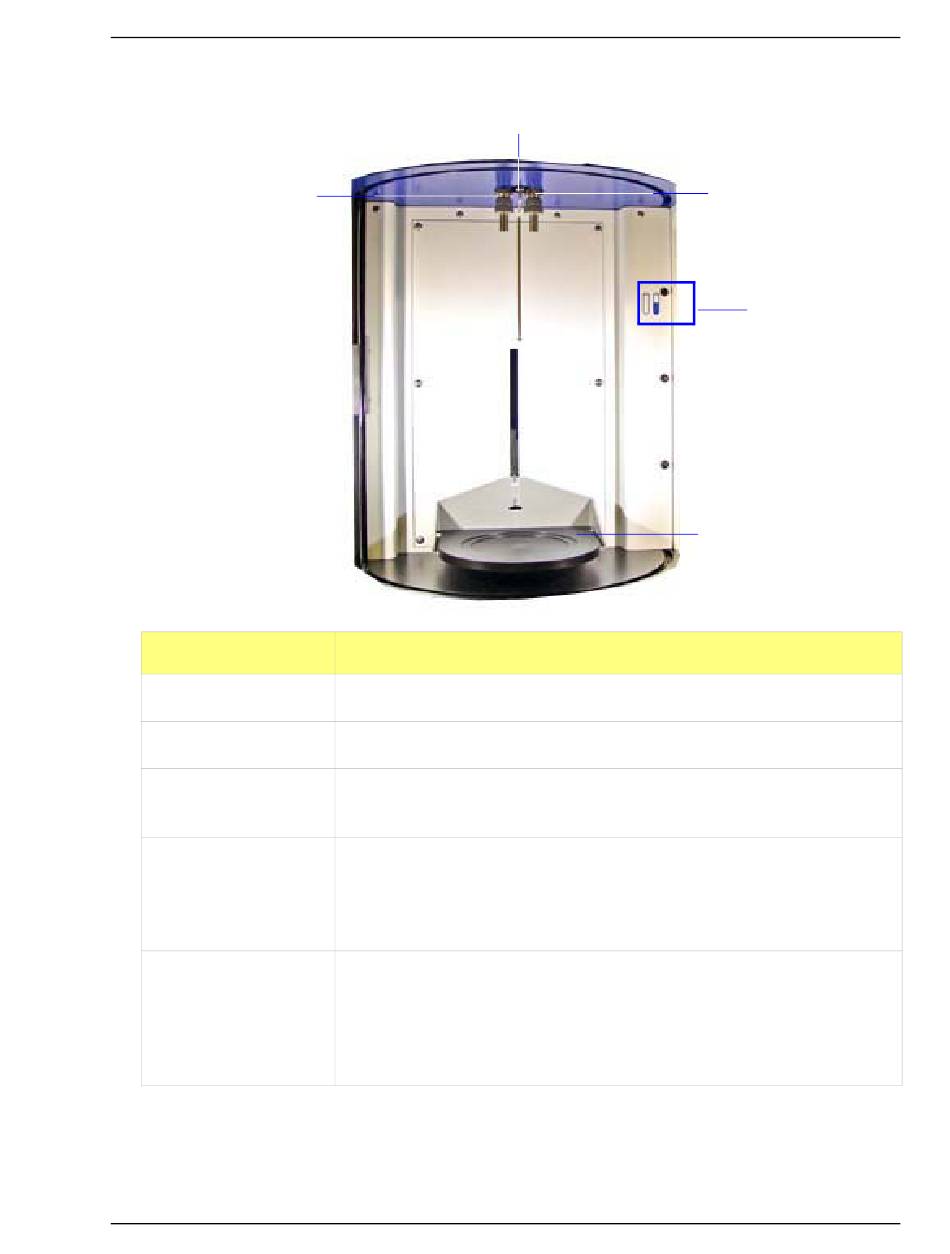

Sample Compartment

Balance Port
Component
Sample port
Balance port
Po port and tube
Diagram
Elevator
239-42828-01 - Dec 2012
Po port and tube (2390p and 2390t models)
For installing the sample tube.
For installing the balance tube.
The Po (saturation pressure) tube comes installed on the Gemini II 2390p
and 2390t.
Diagram of port numbers and locations as well as the positions of the
balance and sample tubes. The empty tube represents the balance tube
installed on the left port. The filled tube represents the sample tube
installed on the right port.
Allows placement of the Dewar around the sample and Po tubes. The
elevator raises automatically when the analysis is started and lowers
automatically upon completion. During analysis, the elevator lowers after
the free-space measurement to allow evacuation, then raises and continues
the analysis.
Instrument Components and Connectors
Sample port
Diagram of tube positions
Elevator
Description
2-3
