A popup window indicates the test is complete. Click OK. The report displays on the screen.

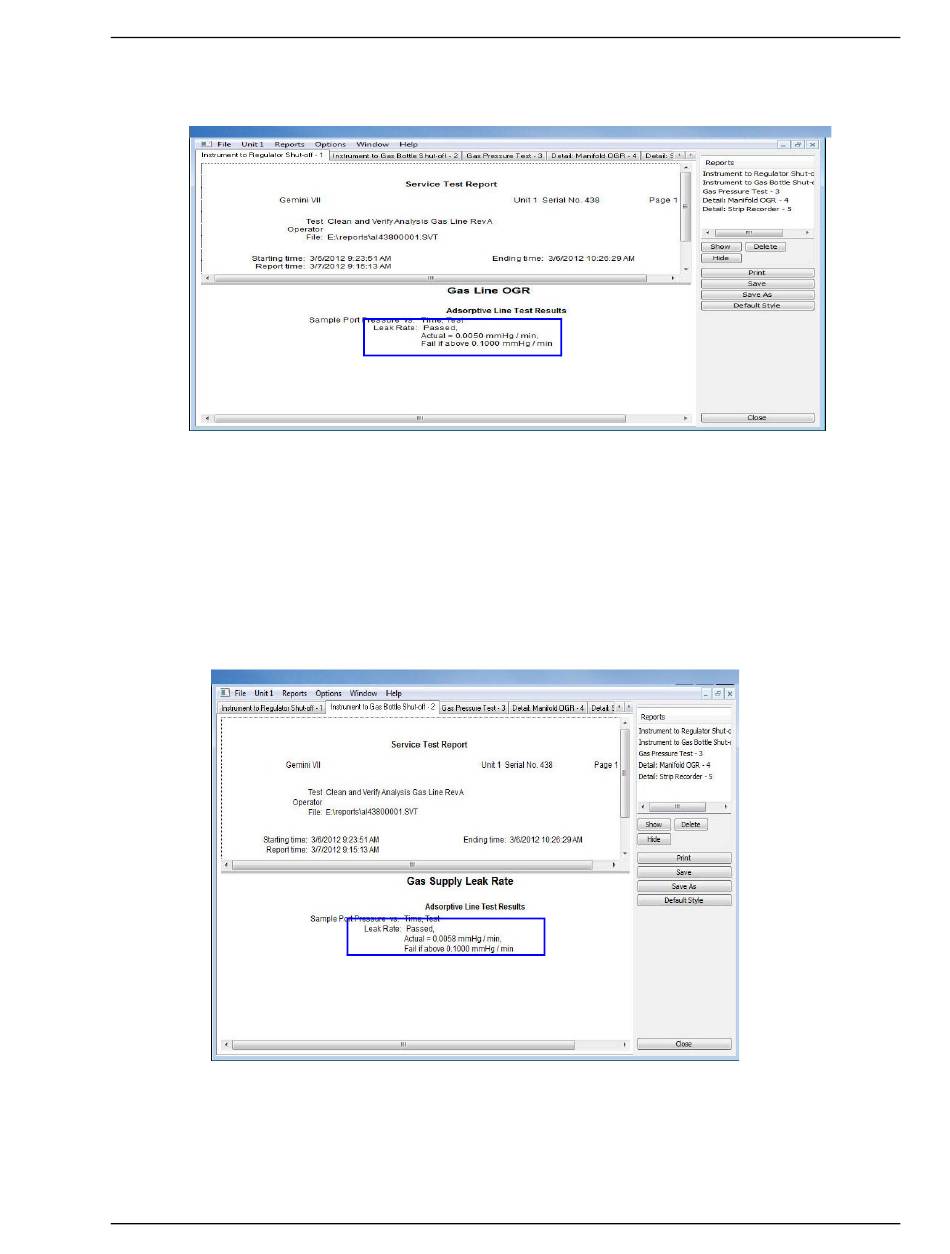

On the report, the Leak Rate field on the Instrument to Regulator Shut-off Valve -1 report

should read Passed. A Passed reading indicates the gas line from the instrument to the regulator is

clean and leak-free.

If the Leak Rate field indicates Failed, a leak is indicated between this connection. Check the

connections from the instrument to the gas regulator valve. Tighten as necessary, then run the test

Click the Instrument to Gas Bottle Shut-off Valve - 2 tab to display its report.

239-42828-01 - Dec 2012

Connecting Gases
