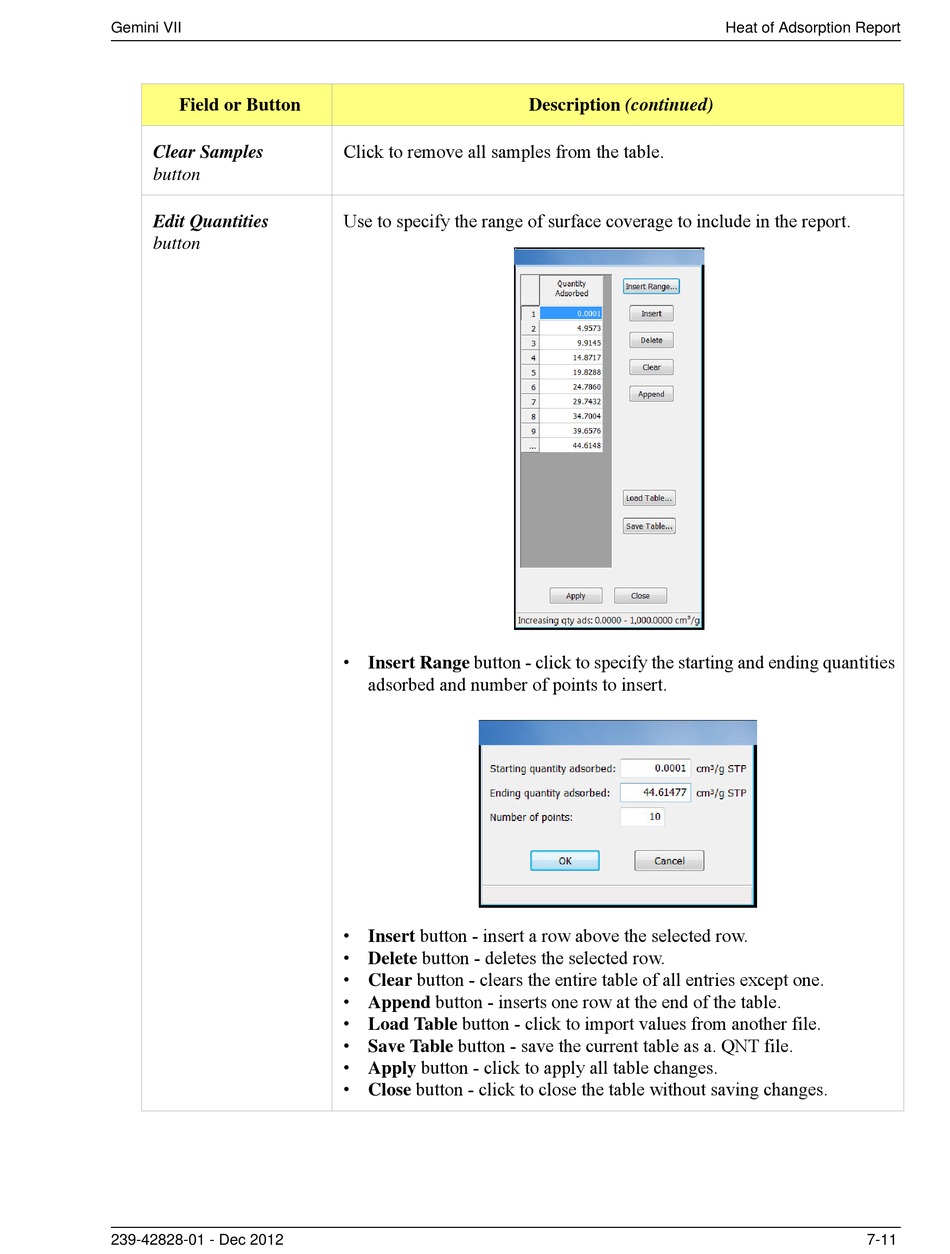

Micromeritics Gemini VII 2390a Operator's Manual page 203

Gemini VII
Field or Button

Clear Samples
button

Edit Quantities
button
239-42828-01 - Dec 2012
Click to remove all samples from the table.
Use to specify the range of surface coverage to include in the report.
• Insert Range button - click to specify the starting and ending quantities
adsorbed and number of points to insert.
• Insert button - insert a row above the selected row.
• Delete button - deletes the selected row.
• Clear button - clears the entire table of all entries except one.
• Append button - inserts one row at the end of the table.
• Load Table button - click to import values from another file.
• Save Table button - save the current table as a. QNT file.
• Apply button - click to apply all table changes.
• Close button - click to close the table without saving changes.
Description (continued)
Heat of Adsorption Report
7-11
