Generating Graph Overlays

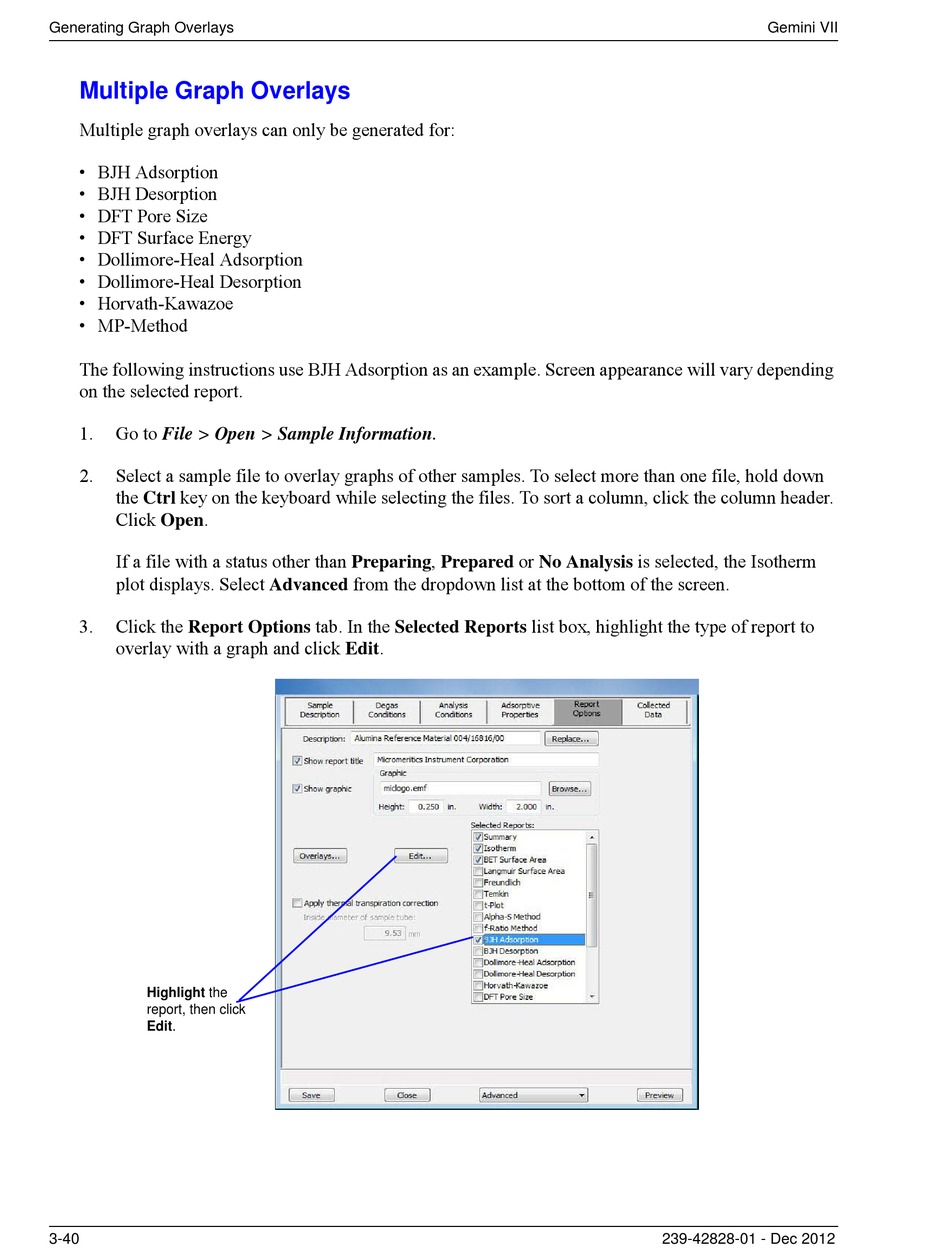

Multiple Graph Overlays

Multiple graph overlays can only be generated for:
• BJH Adsorption
• BJH Desorption
• DFT Pore Size
• DFT Surface Energy
• Dollimore-Heal Adsorption
• Dollimore-Heal Desorption
• Horvath-Kawazoe
• MP-Method
The following instructions use BJH Adsorption as an example. Screen appearance will vary depending
on the selected report.
1. Go to File > Open > Sample Information.
2. Select a sample file to overlay graphs of other samples. To select more than one file, hold down
the Ctrl key on the keyboard while selecting the files. To sort a column, click the column header.
Click Open.
If a file with a status other than Preparing, Prepared or No Analysis is selected, the Isotherm
plot displays. Select Advanced from the dropdown list at the bottom of the screen.
3. Click the Report Options tab. In the Selected Reports list box, highlight the type of report to
overlay with a graph and click Edit.
Highlight the
report, then click
Edit.
