Heat Of Adsorption Report - Micromeritics Gemini VII 2390a Operator's Manual

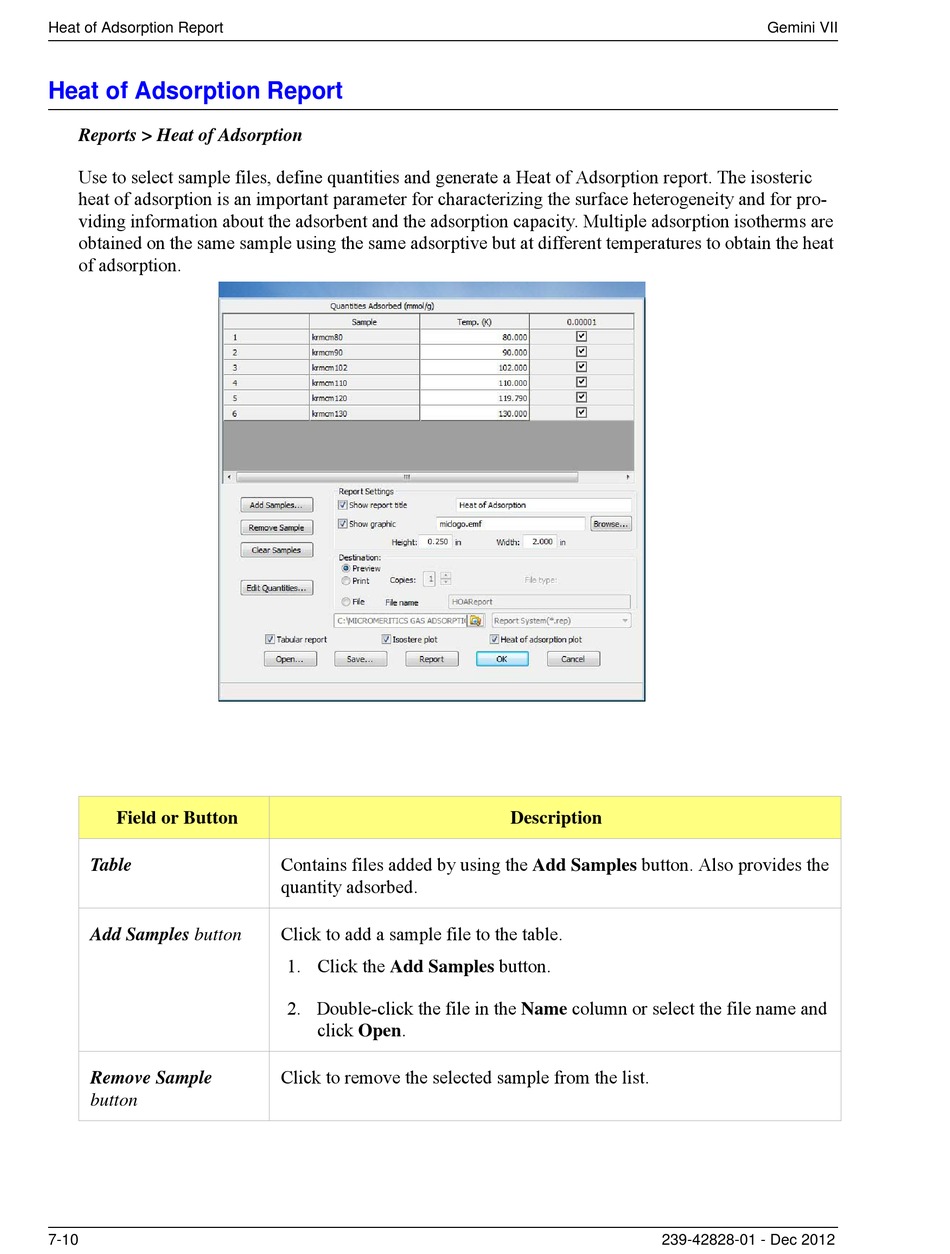

Heat of Adsorption Report

Heat of Adsorption Report
Reports > Heat of Adsorption
Use to select sample files, define quantities and generate a Heat of Adsorption report. The isosteric
heat of adsorption is an important parameter for characterizing the surface heterogeneity and for pro-
viding information about the adsorbent and the adsorption capacity. Multiple adsorption isotherms are
obtained on the same sample using the same adsorptive but at different temperatures to obtain the heat
of adsorption.
Field or Button
Table
Add Samples button

Remove Sample
button
7-10
Contains files added by using the Add Samples button. Also provides the
quantity adsorbed.
Click to add a sample file to the table.
1. Click the Add Samples button.
2. Double-click the file in the Name column or select the file name and
click Open.
Click to remove the selected sample from the list.
Description
239-42828-01 - Dec 2012
Gemini VII
