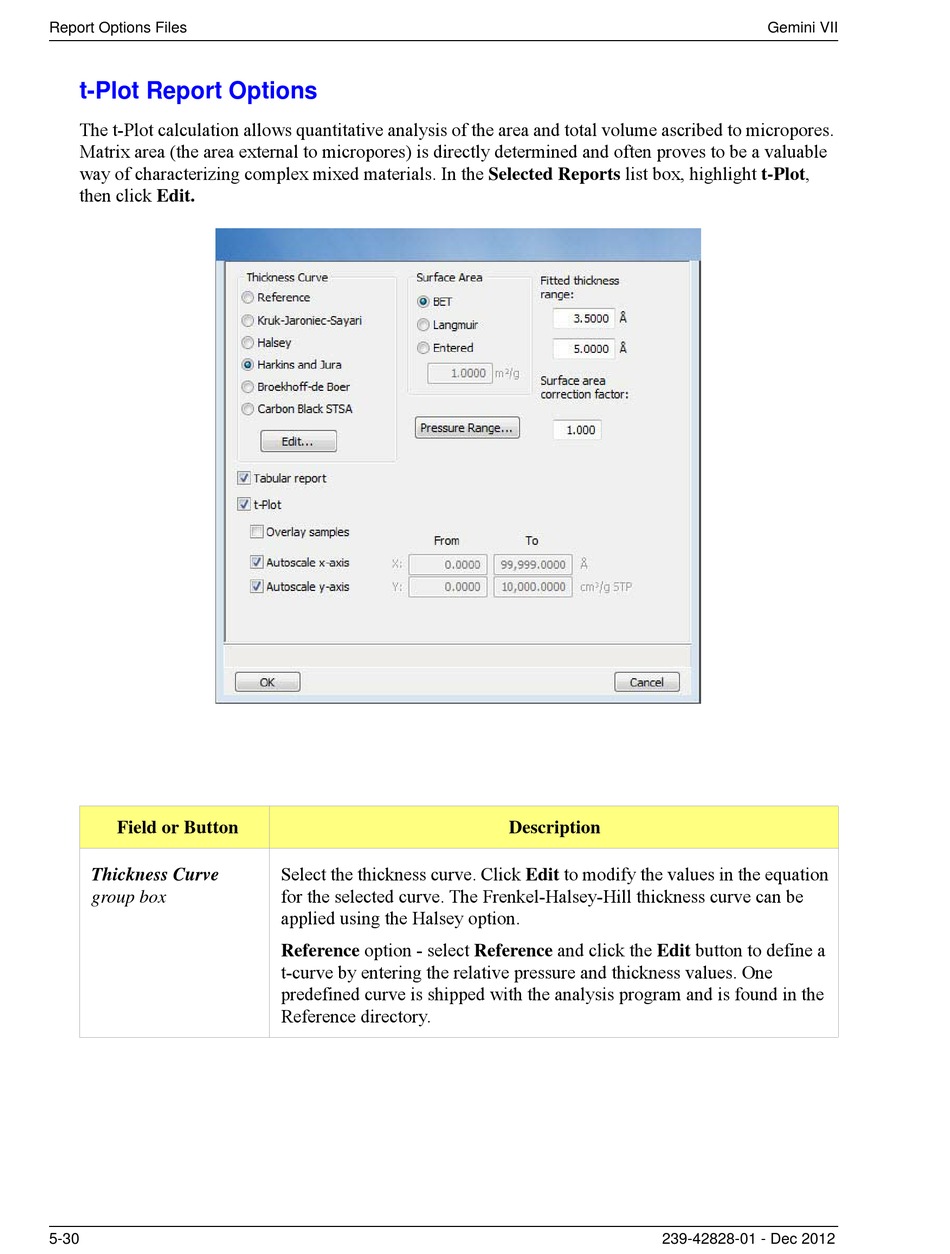

t-Plot Report Options

The t-Plot calculation allows quantitative analysis of the area and total volume ascribed to micropores.
Matrix area (the area external to micropores) is directly determined and often proves to be a valuable
way of characterizing complex mixed materials. In the Selected Reports list box, highlight t-Plot,
then click Edit.
Field or Button

Thickness Curve
group box
5-30
Select the thickness curve. Click Edit to modify the values in the equation
for the selected curve. The Frenkel-Halsey-Hill thickness curve can be
applied using the Halsey option.
Reference option - select Reference and click the Edit button to define a
t-curve by entering the relative pressure and thickness values. One
predefined curve is shipped with the analysis program and is found in the
Reference directory.
Description
