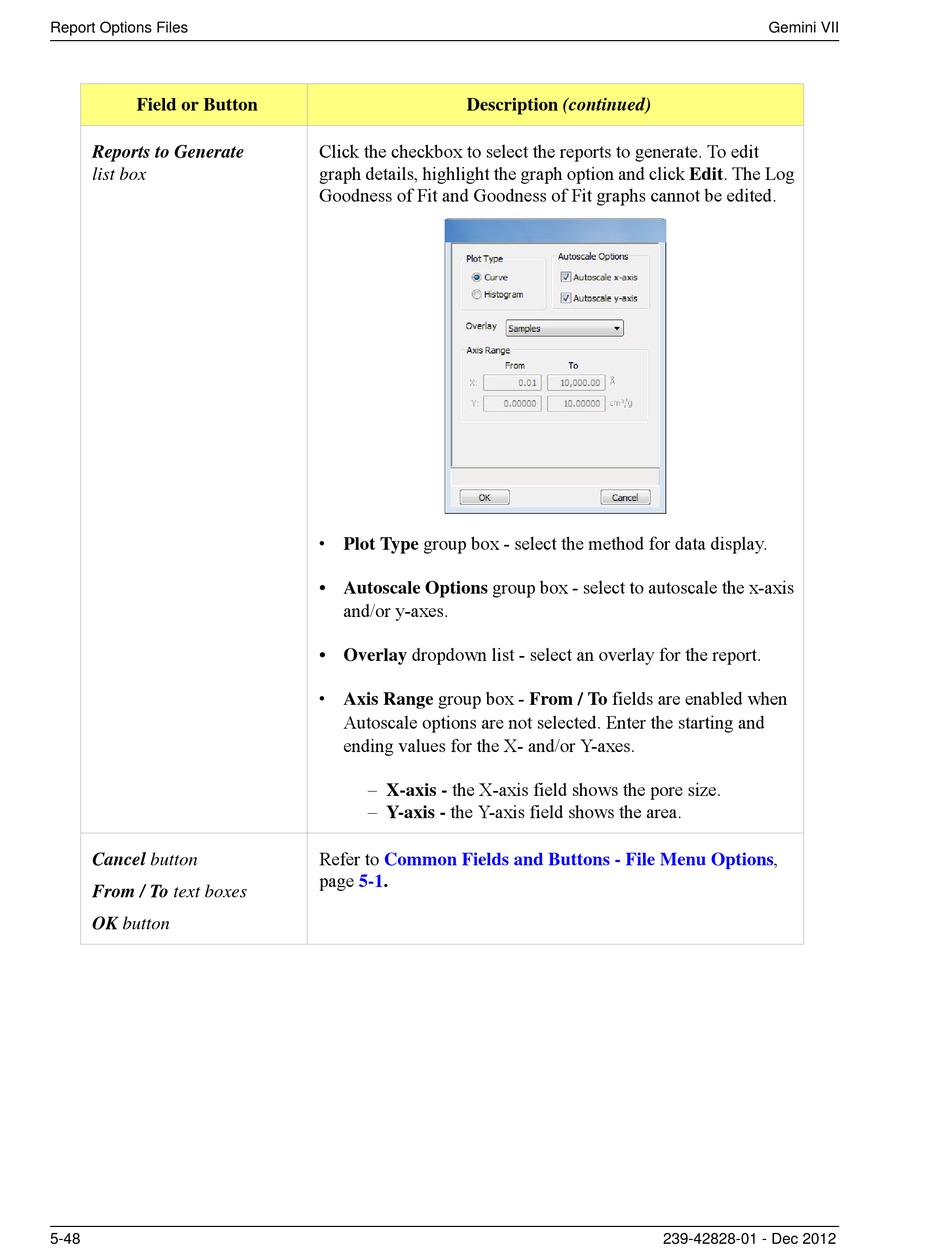

Micromeritics Gemini VII 2390a Operator's Manual page 158

Report Options Files
Field or Button
Reports to Generate
list box
Cancel button
From / To text boxes
OK button
5-48

Click the checkbox to select the reports to generate. To edit
graph details, highlight the graph option and click Edit. The Log
Goodness of Fit and Goodness of Fit graphs cannot be edited.
• Plot Type group box - select the method for data display.
• Autoscale Options group box - select to autoscale the x-axis
and/or y-axes.
• Overlay dropdown list - select an overlay for the report.
• Axis Range group box - From / To fields are enabled when
Autoscale options are not selected. Enter the starting and
ending values for the X- and/or Y-axes.
– X-axis - the X-axis field shows the pore size.
– Y-axis - the Y-axis field shows the area.
Refer to
Common Fields and Buttons - File Menu
page 5-1.
Description (continued)
Gemini VII
Options,
239-42828-01 - Dec 2012
