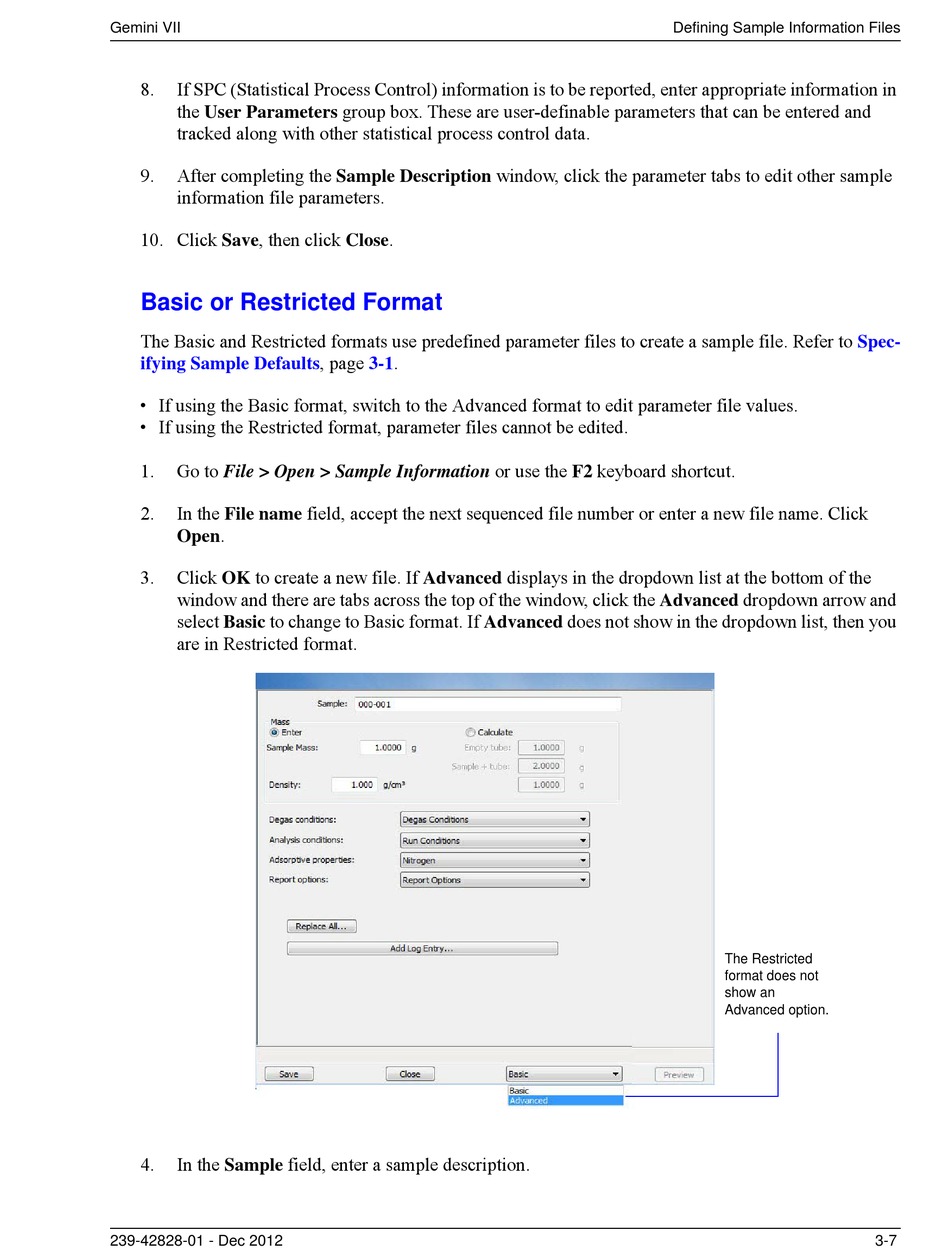

Basic Or Restricted Format - Micromeritics Gemini VII 2390a Operator's Manual

Gemini VII
8. If SPC (Statistical Process Control) information is to be reported, enter appropriate information in
the User Parameters group box. These are user-definable parameters that can be entered and
tracked along with other statistical process control data.
9. After completing the Sample Description window, click the parameter tabs to edit other sample
information file parameters.
10. Click Save, then click Close.

Basic or Restricted Format

The Basic and Restricted formats use predefined parameter files to create a sample file. Refer to
Defaults, page 3-1.
ifying Sample
• If using the Basic format, switch to the Advanced format to edit parameter file values.
• If using the Restricted format, parameter files cannot be edited. 
1. Go to File > Open > Sample Information or use the F2 keyboard shortcut.
2. In the File name field, accept the next sequenced file number or enter a new file name. Click
Open.
3. Click OK to create a new file. If Advanced displays in the dropdown list at the bottom of the
window and there are tabs across the top of the window, click the Advanced dropdown arrow and
select Basic to change to Basic format. If Advanced does not show in the dropdown list, then you
are in Restricted format.
4. In the Sample field, enter a sample description.
239-42828-01 - Dec 2012
Defining Sample Information Files
The Restricted
format does not
show an
Advanced option.
Spec-
3-7
