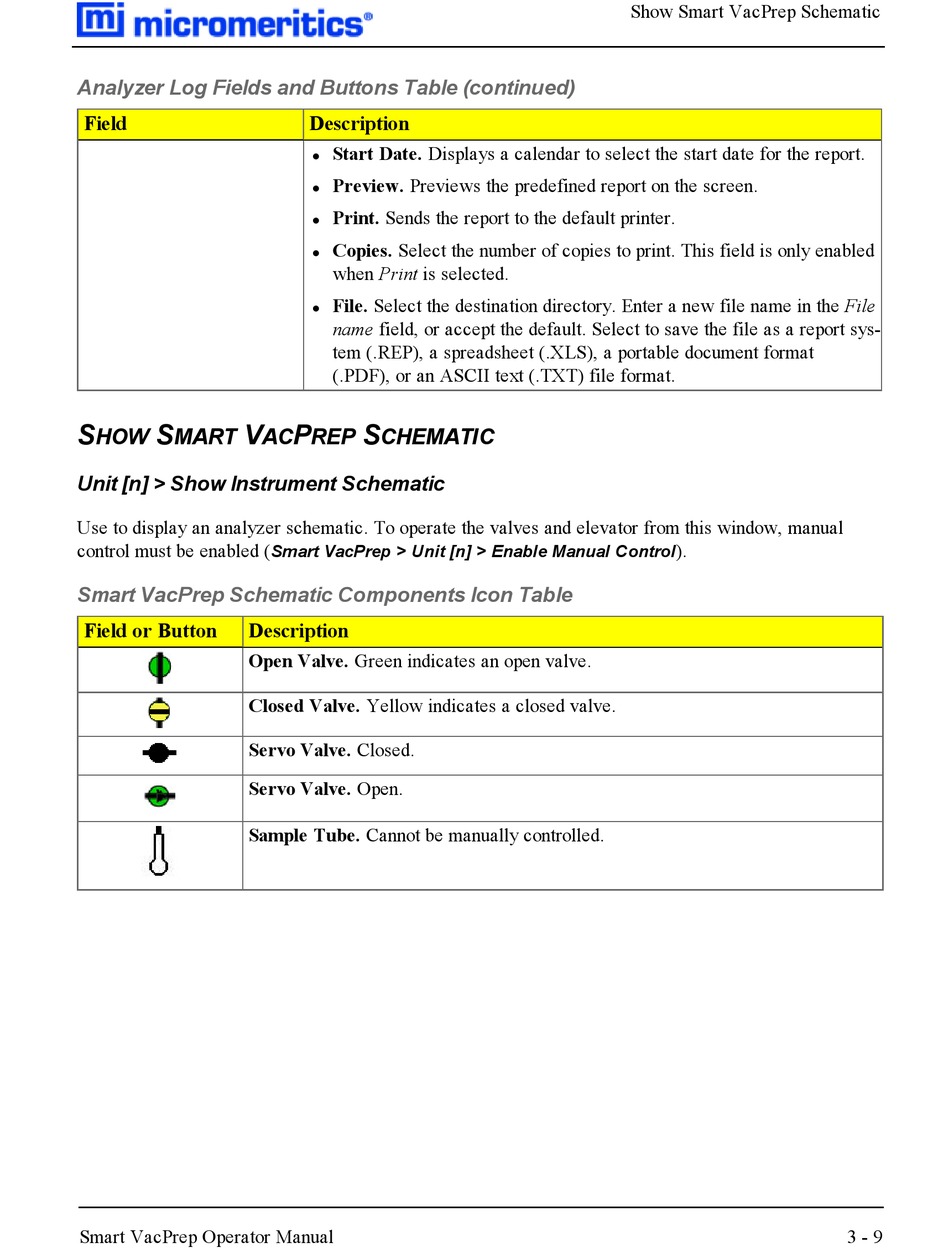

Show Smart Vacprep Schematic - Micromeritics Gemini VII 2390a Operator's Manual

Analyzer Log Fields and Buttons Table (continued)
Field
S S V
HOW MART
Unit [n] > Show Instrument Schematic
Use to display an analyzer schematic. To operate the valves and elevator from this window, manual
control must be enabled (
Smart VacPrep Schematic Components Icon Table
Field or Button Description
Open Valve. Green indicates an open valve.
Closed Valve. Yellow indicates a closed valve.
Servo Valve. Closed.
Servo Valve. Open.
Sample Tube. Cannot be manually controlled.
Smart VacPrep Operator Manual
Description
Start Date. Displays a calendar to select the start date for the report.
l
Preview. Previews the predefined report on the screen.
l
Print. Sends the report to the default printer.
l
Copies. Select the number of copies to print. This field is only enabled
l
when Print is selected.
File. Select the destination directory. Enter a new file name in the File
l
name field, or accept the default. Select to save the file as a report sys-
tem (.REP), a spreadsheet (.XLS), a portable document format
(.PDF), or an ASCII text (.TXT) file format.
P S
AC REP CHEMATIC
Smart VacPrep > Unit [n] > Enable Manual Control
Show Smart VacPrep Schematic
).
3 - 9
