TB 1 Relay
1 High Alarm N.C.
2 High Alarm
3 High Alarm N.O.
4 Fault N.O.
5 Fault
6 Fault N.C.
TB 5 Sensor
1 DC Common (Black)
2 + 24 VDC (Red)
3 4-
4 Communication (White)

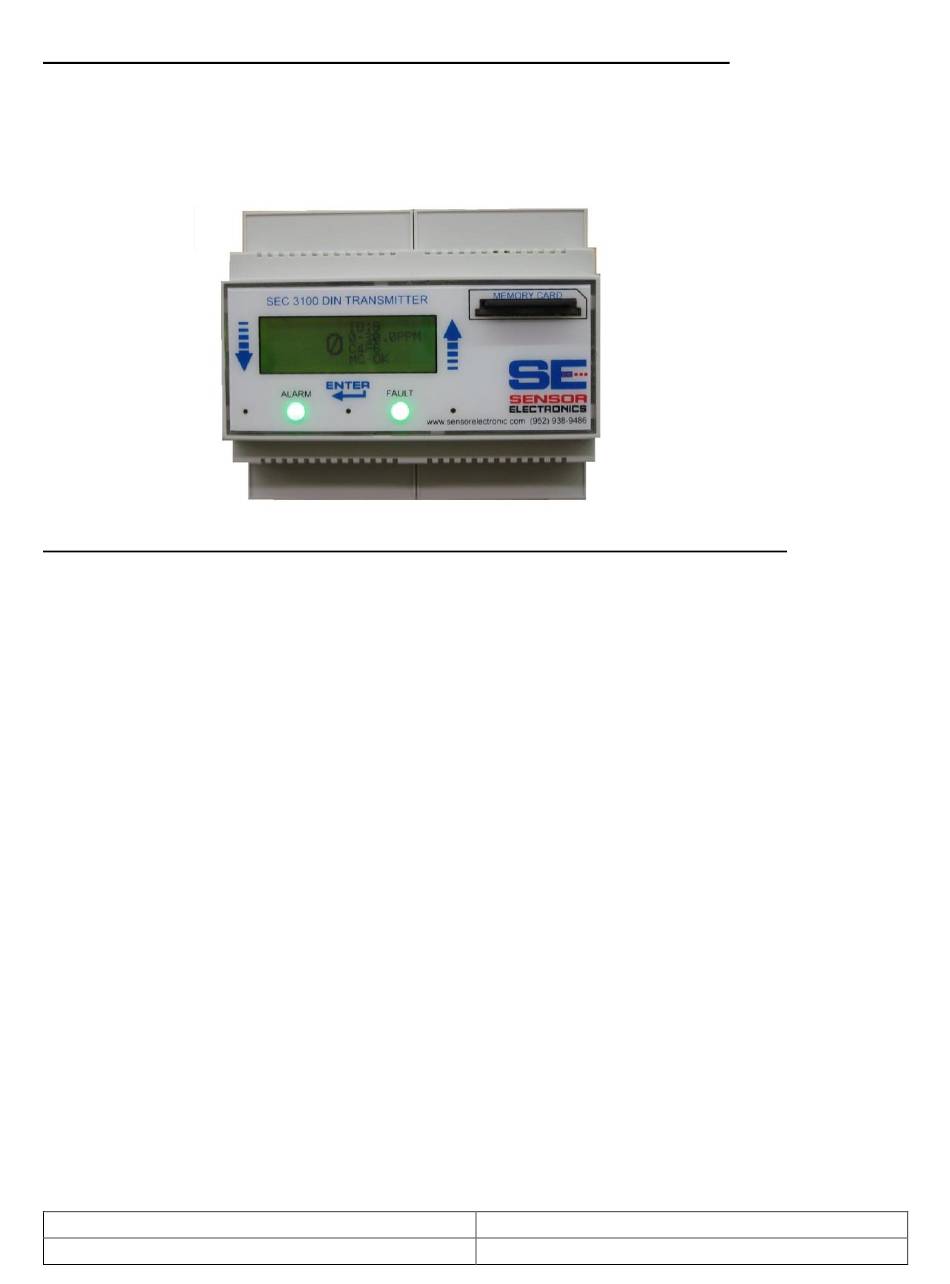

Housing Dimensions
3.54 (W) x 4.17 (L) x 2.28 (H) inches
{90 (W) x 106 (L) x 58 (H) mm}
SEC P/N: 1460014
Rev / ECO: A / 000209
1 TB1 6 1 TB2
1 TB5 4 1
Wiring TB 2 Relay Wiring
1 Low Alarm N.C.
Common 2 Low Alarm Common
3 Low Alarm N.O.
4 Mid Alarm N.C.
Common 5 Mid Alarm Common
6 Mid Alarm N.O.
6
TB6 6
Wiring TB 6 Power / Data Wiring
1 Data A
2 Data B
20 mA (Blue or Green)
4 + 24 VDC Input Power
5 DC Common
6 4-20 mA Output
3 Iso-Common
