Physical Link- RS232

The physical link for the RS232 Text Output Broadcast is a single RS232 Serial
connection, using a full 6-wire 6pin modular RJ12 jack, off the back off the SEC 3500 OI
Unit, labeled "RS232". RTS/CTS hardware flow control is provided, as well as baud
rates programmable from 1200 to 19200. The frame can be programmed to either 7 or 8
data bits, 1 or 2 stop bits, and parity set to none, odd or even. These parameters are
configurable from the StatCast Configuration screen in the 3500 OI v2.1 or higher. Input

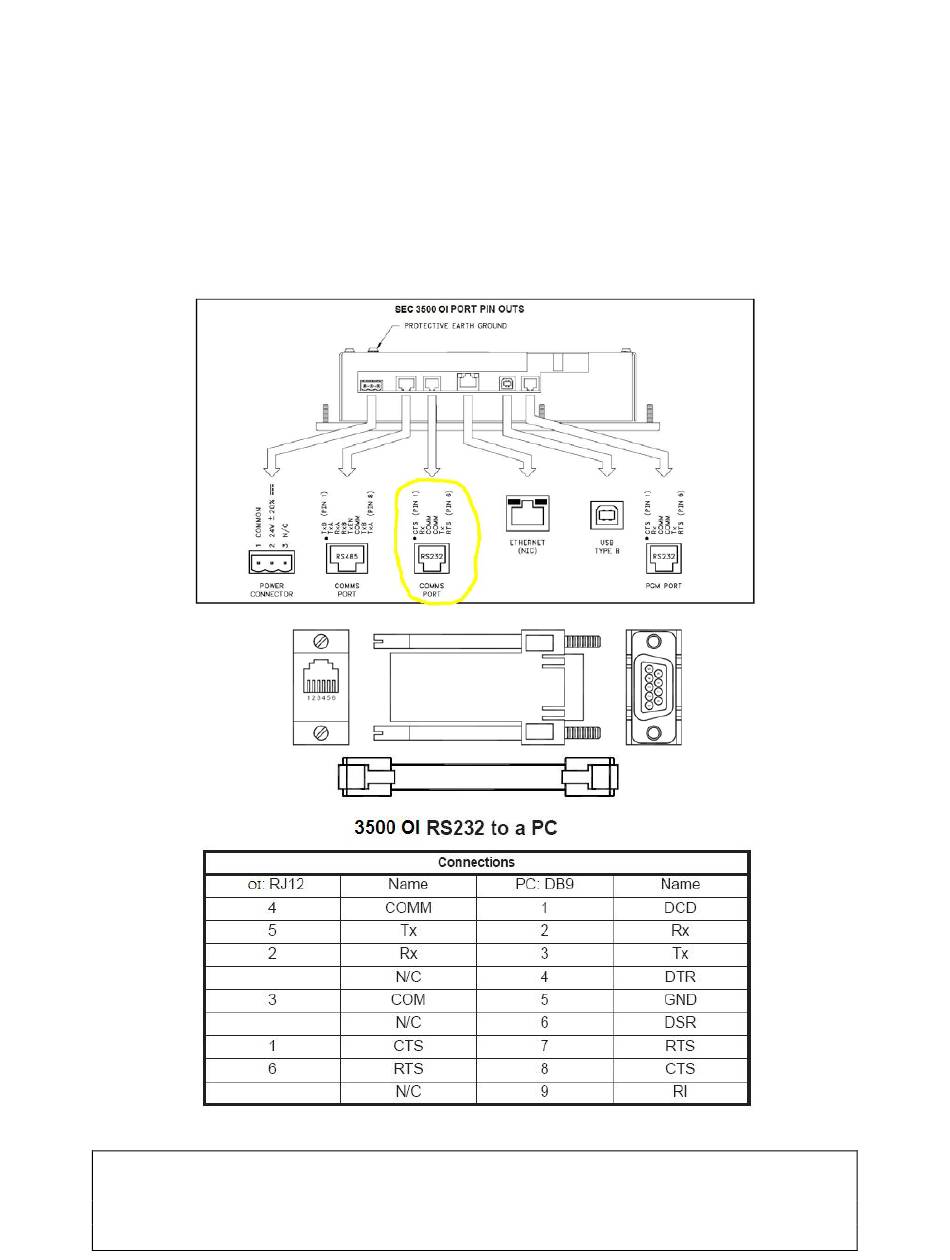

is not accepted, broadcast output only provided. See the following diagrams:
