Sensor Electronics SEC Millenium Series Instruction And Operation Manual page 149

TB 1 Relay Wiring
1 FLT – NC
2 FLT – COM
3 FLT – NO
4 HI – NC
5 HI – COM
6 HI – NO
TB 3 Sensor Wiring
1 DC Common (Black)
2 + 24 VDC (Red)
3 4-20 mA (Blue or Green)
4 Communication (White)
1 DC Common (Black)
2 + 24 VDC (Red)
3 4-20 mA (Blue or Green)
4 Communication (White)
Housing Dimensions
3.54 (W) x 4.17 (L) x 2.28 (H) inches
{90 (W) x 106 (L) x 58 (H) mm}

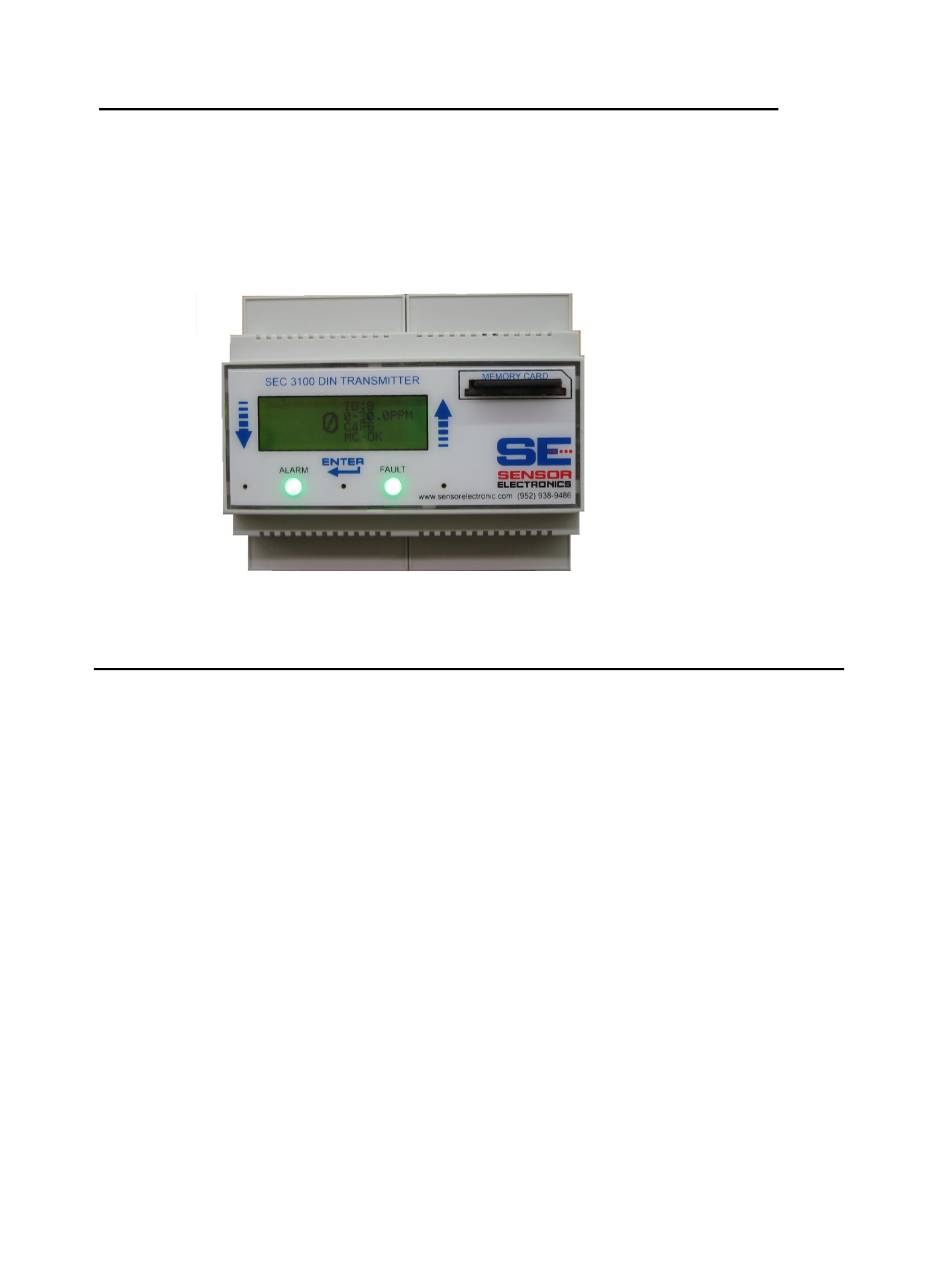

SEC 3120 Wiring
TB 2 Relay Wiring
1 MID – NC
2 MID – COM
3 MID – NO
4 LOW – NC
5 LOW – COM
6 LOW - NO
TB 4 Power / Data Wiring
1 +24 VDC
2 S1 4-20 mA out
3 DC Common
4 RS485 Data A
5 RS485 Data B
6 RS485 ISO Comm
7 S2 4-20 mA out
