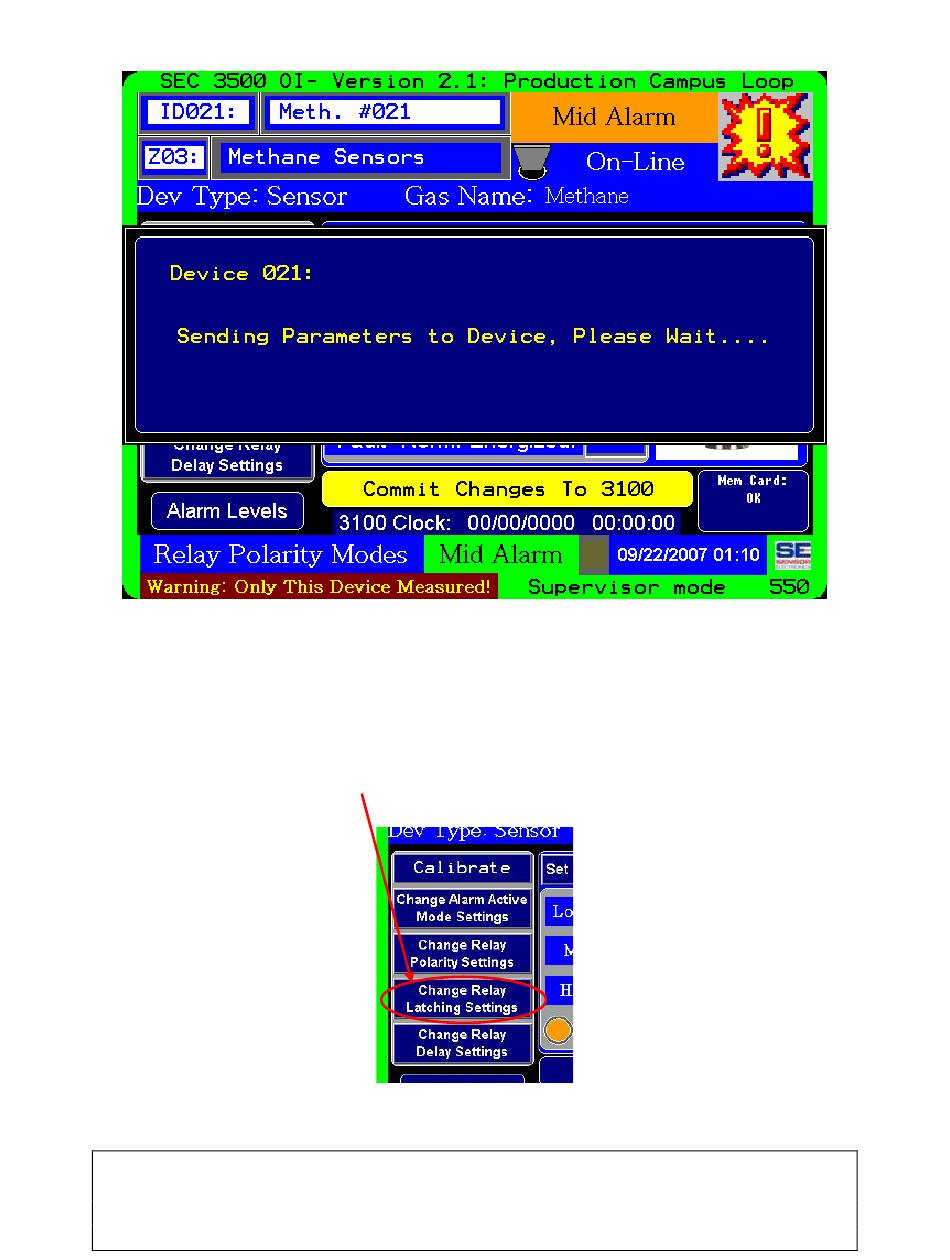

Popup status box displayed when committing the Relay Polarity Mode settings to the
SEC 3100 device.

6.2.4 Changing Relay Latch Mode Settings

P ressing the "Change Relay Latching Settings" button from the Navigation panel on
any of the Sensor configuration screens, as shown below:
Will display the "Relay Latch Settings" Screen as shown on the following page:
Sensor Electronics Corporation
5500 Lincoln Drive
Minneapolis, Minnesota 55436
th
September 29 , 2006
Page 24 of 66
952-938-9486
SEC 3500 OI
Supervisor Operator's
Manual
Version 2.1.0095
