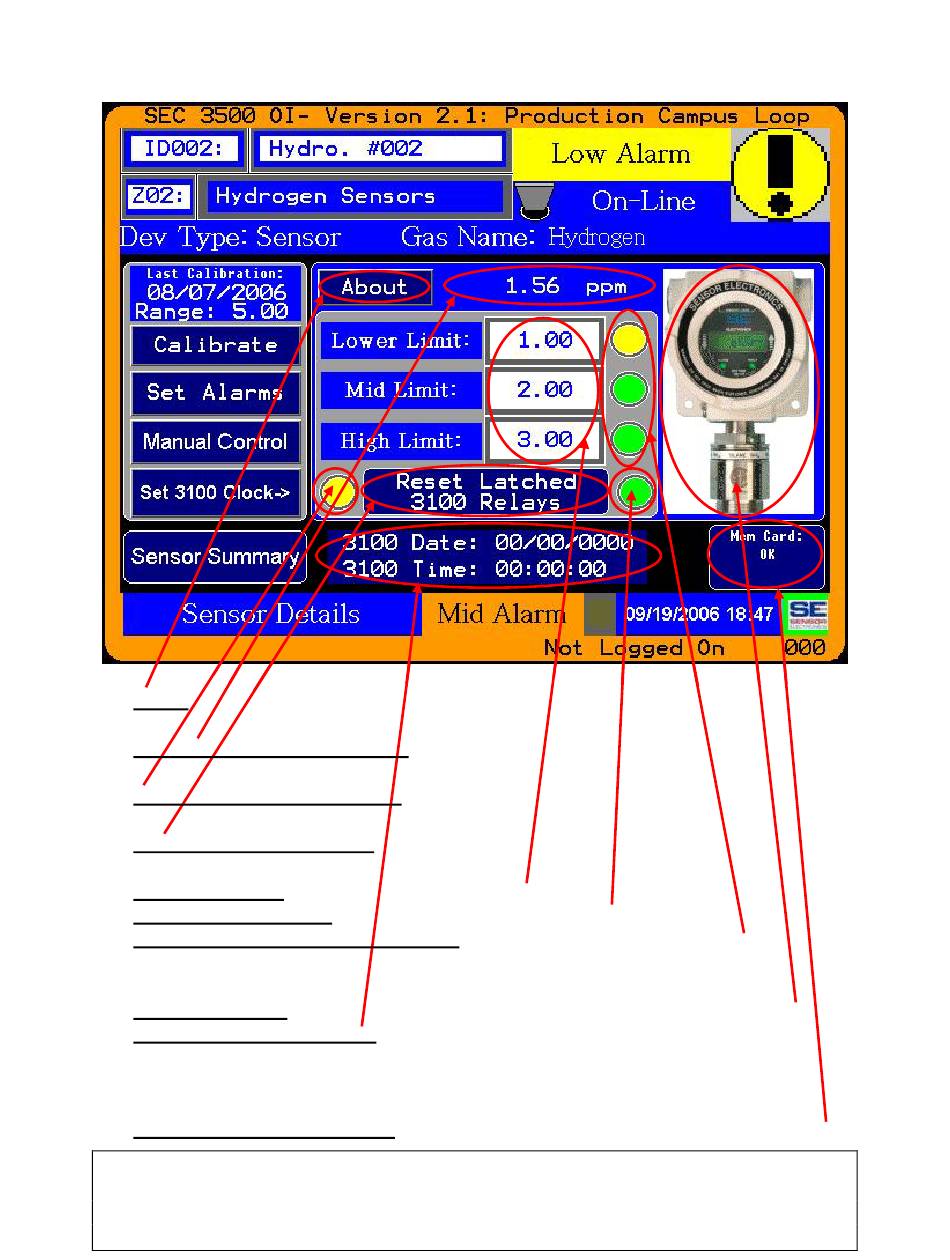

4.8.2 Details Box

1) About- Pressing this button provides version information for the specific SEC 3100
device and the attached sensor.
2) Current Gas Level a
measurement units.
3) Device Alarm Level Indicator
as previously described (green, yellow, red).
4) Reset Latched 3100 Relays
to reset any 3100 relays that may
5) Alarm Set Points
6) Device Fault Indicator
7) Independent Alarm Level Indicators-
alarm status conditions; Low is either green or yellow, Mid is either green or orange,
High is either green or red. Only one can be any color other than green.
8) Sensor Type Icon
9) Current 3100 Date & Time- Displays the current 3100 time and date retrieved from
the 3100. It is updated with a yellow highlighted box in the seconds to indicate at that
moment the time has been read and should be in agreement with the clock display for
the panel.
10) Status of the 3100 Flash Card- OK or not. More details to come in a future version.
