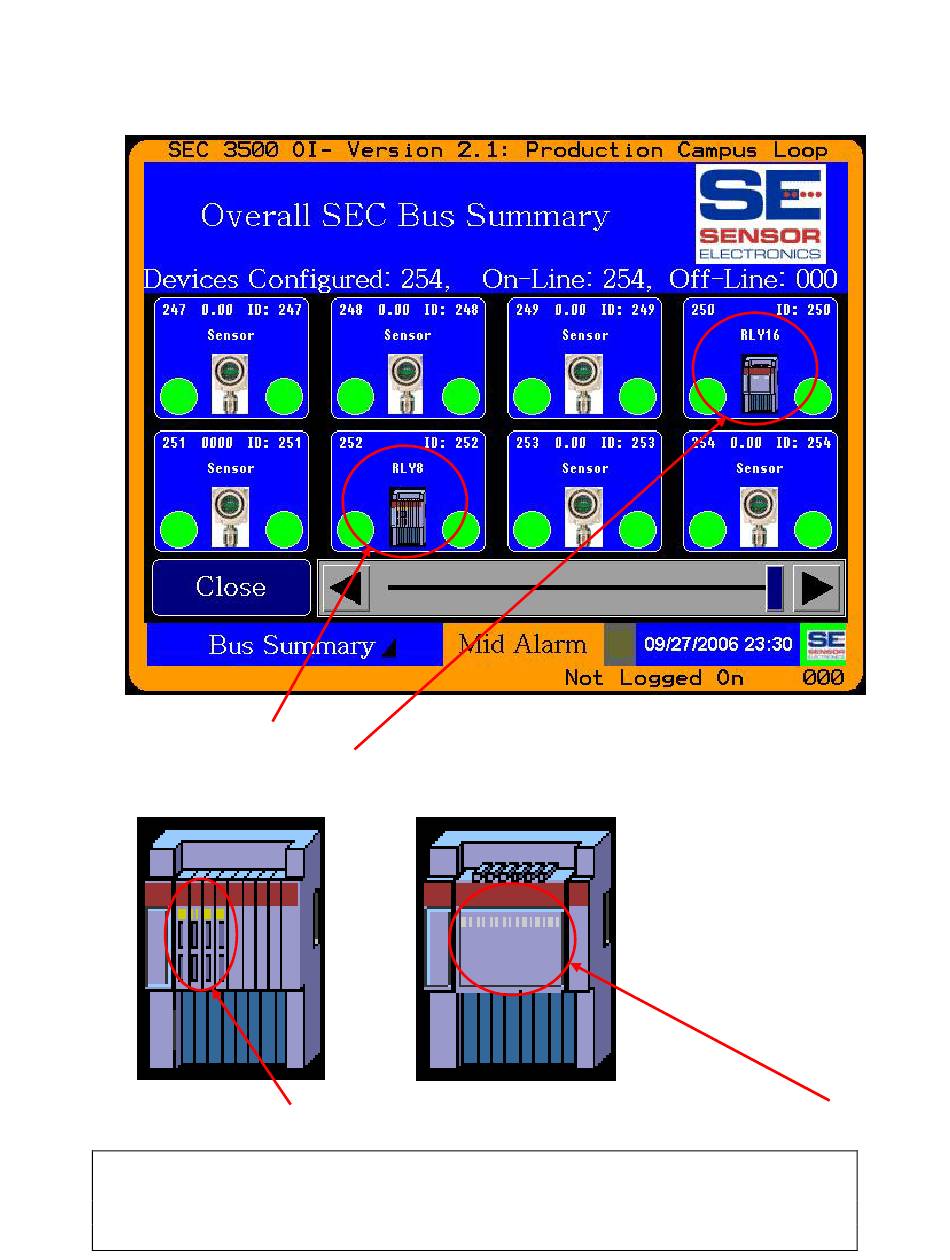

4.5.1 Bus Summary Screen Sho
1) SEC 8 Coil Relay Module.
2) SEC 16 Coil Relay Module.
3) Note the diffe rence between the icons, so they ca
8 Coil Icon:
The left side of the 8 Coil Icon is filled, with the remainder open, whereas the 16 Coil
Icon is completely filled.
