Sensor Electronics SEC Millenium Series Instruction And Operation Manual page 265

the next one could conflict with this one. The device ID should be set to a value
well above the SEC 3100 device range- such as
Modules could arrive from the factory with values set to 254, it is a good idea to
start setting them at 200 and incrementing each newly added Relay Module.
d) Once the Device ID is changed, take it off-line. Record the device ID, and type.
e) If you brought this device online, then the total "# Found" will increment by one
in step 4b when you repeat it again for the next Relay Module to add (which
refers to the number in step 2 above). Repeat step 4 until

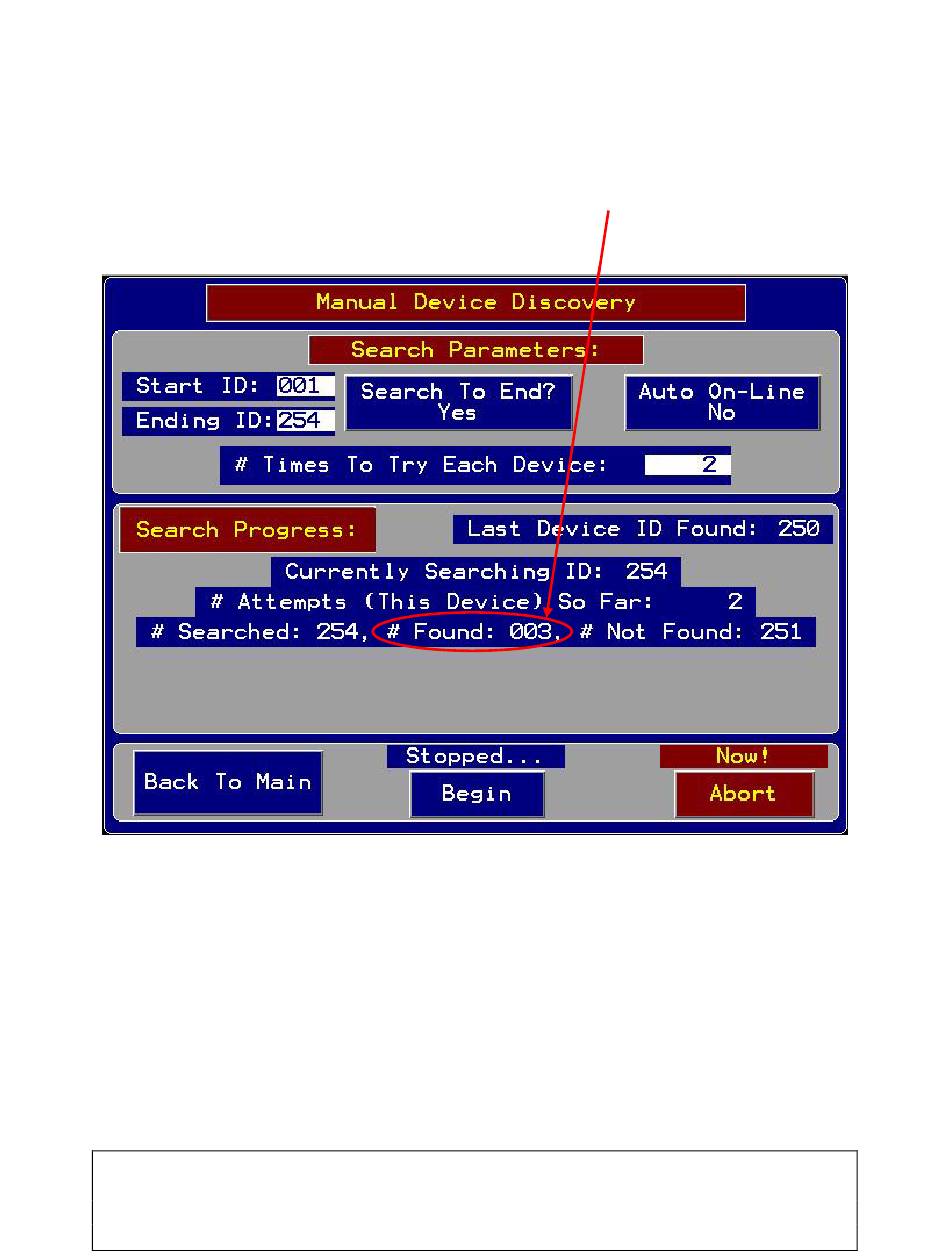

5) When all is done; attach all devices to the bus and restart the s
It should show exactly the expected "#
from step 2 to the accu
The last Device ID Found should be equal to the l t Relay
all looks proper, then it is OK to return to normal operation. Press the "Back To
Main" button, transitioning through the Pr
Main Zone Summary screen. All expected devices should now show up in the zone
tallies, including the SEC Relay Modules added.
Sensor Electronics Corporation
5500 Lincoln Drive
Minneapolis, Minnesota 55436
th
May 13 , 2007
Found" devices wh
mulation in step 4 (in this exam
imary Loop Start screen, returning to the
Page 16 of 26
952-938-9486
200 – 254. Since some Relay
complete.
earch as shown above.
en you add the # found
ple, only one was performed).
as Module device found. If
SEC 3500 OI
Startup Basics
Version 2.1.0090
Manual
