SEC 3500 OI StatCast Configuration Utility

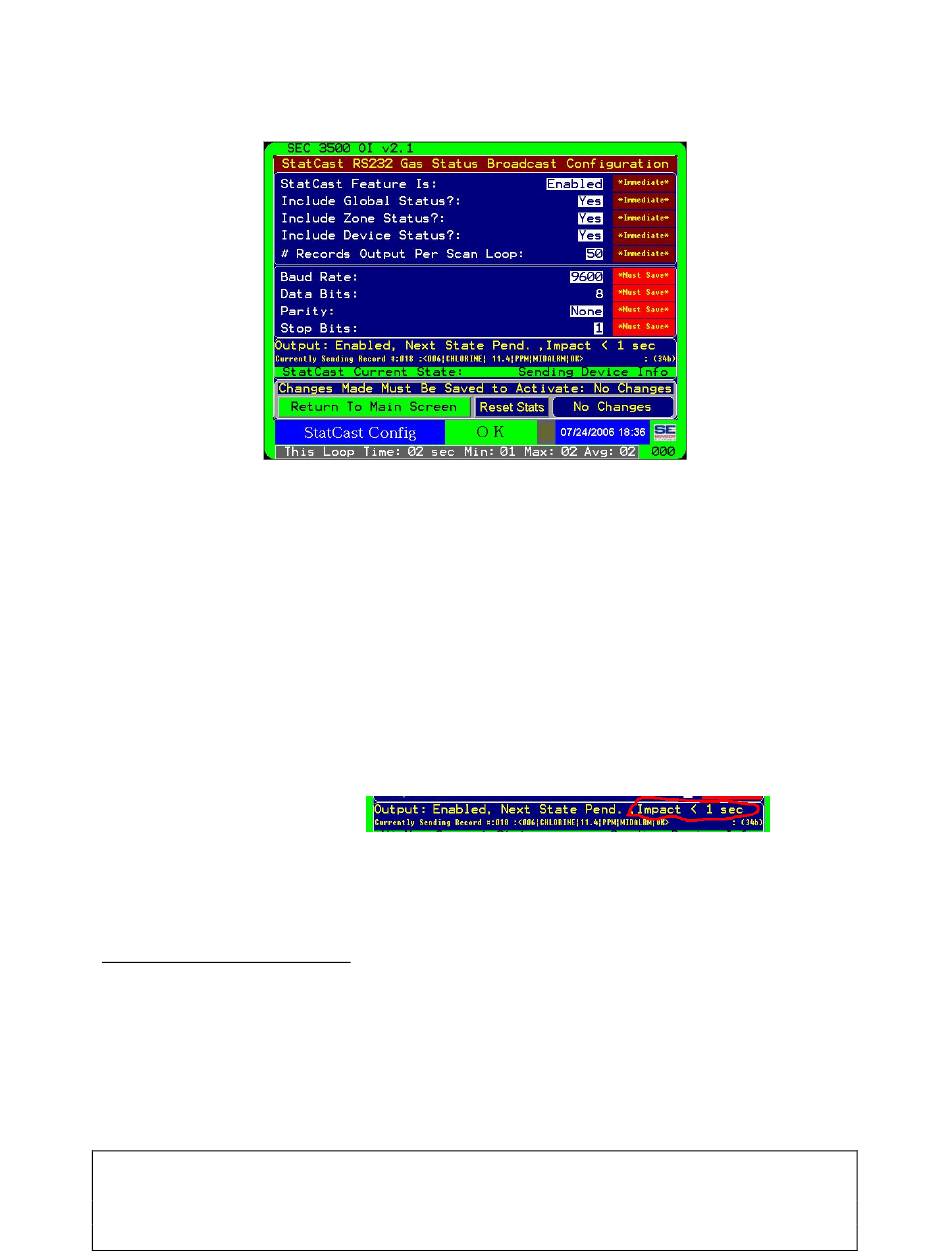

The SEC 3500 OI StatCast Configuration Utility, shown above, allows plant floor
maintenance personnel to configure the StatCast Feature. To access this utility, simply
logon as user "maint", select the |supervisor menu|Configuration|StatCast Config| sub-
menu. This utility allows configuration and measurement of impact on the gas detection
scan loop, so that the proper balance of data latency and responsiveness can be achieved
according to the user's criteria.
In the above screen-capture, there are colored indicators to the right of each user-
selectable feature. Where the indicator shows dark red text "*Immediate*"; values
changed with this notation take effect immediately as the parameter is changed. It does
NOT indicate that the value is saved permanently if the panel were powered down
7
incorrectly though. These parameters, will take effect at the very next StatCast cycle
(which may be a sliding window partial output). Changes made to these are immediately
noticed at the "Impact"
measurement status label.
Right-side indicators shown in lighter red text "*Must Save*" indicate that they
9
MUST be saved in order to take effect, and for the "Impact" status label to accurately
show measurements based on the new RS2332 line parameters.
7
Any time an operator or panel (SEC 3500 OI) user desires to remove power from the panel, the "Safely
Power Down HMI" menu item should be performed and follow all instructions before doing so, to insure
all data is safely stored in non-volatile ROM. If this is not done, it is possible to lose changes made and data
collected in the past six minutes.
8
NOTE: It is crucial that baud rate values shown are saved to be active for impact measurements shown to
be accurate.
9
The "No Changes"/"Save Now" button must be pressed for any RS232 line parameters to take effect. This
will cause the panel to reboot.
Sensor Electronics Corporation
5500 Lincoln Drive
Minneapolis, Minnesota 55436
nd
August 2 , 2006
8
Page 12 of 15
952-938-9486
SEC 3500 OI- StatCast
RS232 Gas Status Text Broadcast
Configuration Manual
Revision 1.1
