Configuring Global Latches - Sensor Electronics SEC Millenium Series Instruction And Operation Manual

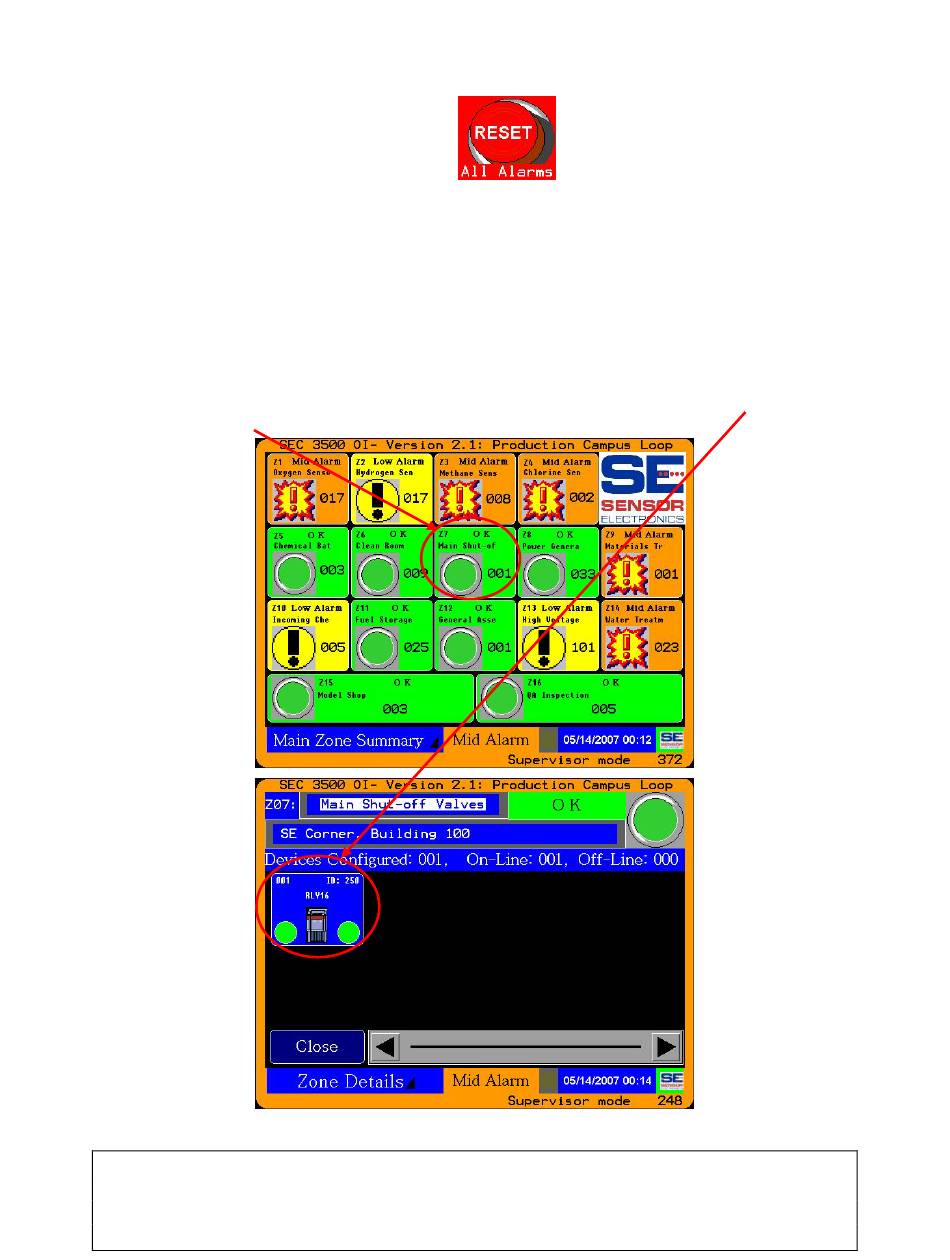

When the " Global Latch Reset" feature is enabled, then wh
Latches are activated,
described in the Basic Operator's Guide,
them by simply pressing the icon that
corner of the "Home Zone" screen.
6.0

Configuring Global Latches

Once the "G lobal Latc
section 5.0, established Relay Module Latches will now be able to be reset by the "Reset"
icon described in section 5.0. There are many reasons for configuring latching global
relay coils. Related to the SEC 3500 OI compatible Relay Modules, it is quite simple to
setup. Once the hardware has been connected to a compatible SEC Relay Module, and
the polarity and latching desires have been determined, then log into the panel as the
"Supervisor" as previously described in this document. Select the Relay Module from the
appropriate Zone:
Sensor Electronics Corporation
5500 Lincoln Drive
Minneapolis, Minnesota 55436
th
May 13 , 2007
a new Global
h Reset" feature is enabled, as previously described in
Page 21 of 26
952-938-9486
en Relay Module
Latch Reset icon appears, as
so that any operator may reset
will appear at the top, right-hand
SEC 3500 OI
Startup Basics
Version 2.1.0090
Manual
